High Performance Alder Lake-N Platform Mini PC:N9N

Model:N9N

CPU Type: Intel® Alder Lake N95/N100/N300/N305

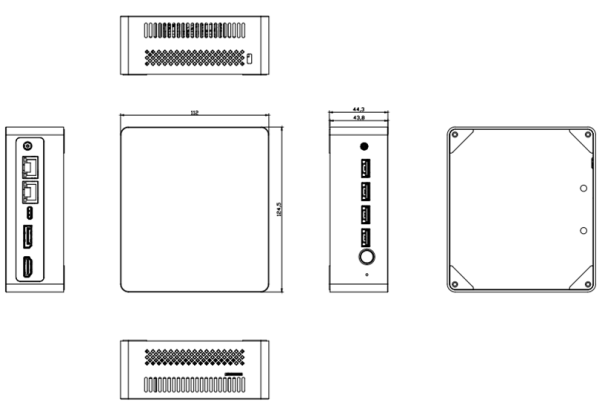

Dimensions: 124.5mm*112mm*43mm

Color: Dark grey (Customizable)

Material:Plastic

Memory:LPDDR5 8G/16G Supports 4800 MHz

Stroage: FPC Expansion 2.5-inch Hard disk /SSD (7MM)(Optional)+UFS2.1+1x M.2 2280 SATA/NVME SSD (Default SATA signal)

GPU: Intel® UHD Graphics Gen12

Display Interface: 1 x DP, 4K@60Hz 1 x HDMI,4K@60Hz 1 x TYPE-C ,4K@60Hz(可选项)

DESCRIPTION

Product Characteristics:

*Equipped with Intel 12 generation ADL-N high-performance processor,Integrated Intel® UHD Graphics Gen12 high-performance graphics card

*RTL8111H double core design, easy to realize the separation of internal and external networks

*Supports HMDI*1+DP*1+TYPE-C*1

*Three display 4K@60Hz ultra HD output

*Supports full-function TYPE-C: power supply + data + video + audio

*Support WIFI6/WIFI5, easy to achieve wireless high-speed transmission

*LPDDR5 five generation DDR high speed and high efficiency

*Super quiet cooling fan design, noise is less than 38 minutes

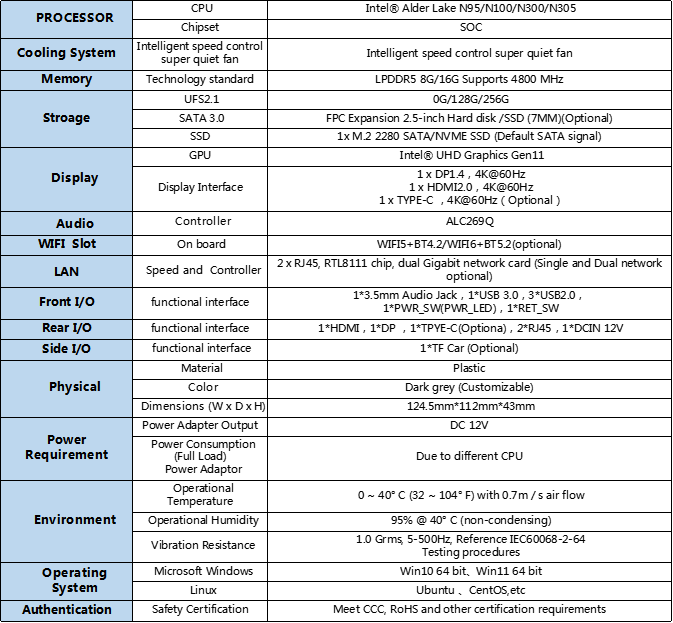

Product Specification:


*Product specifications are subject to change without prior notice

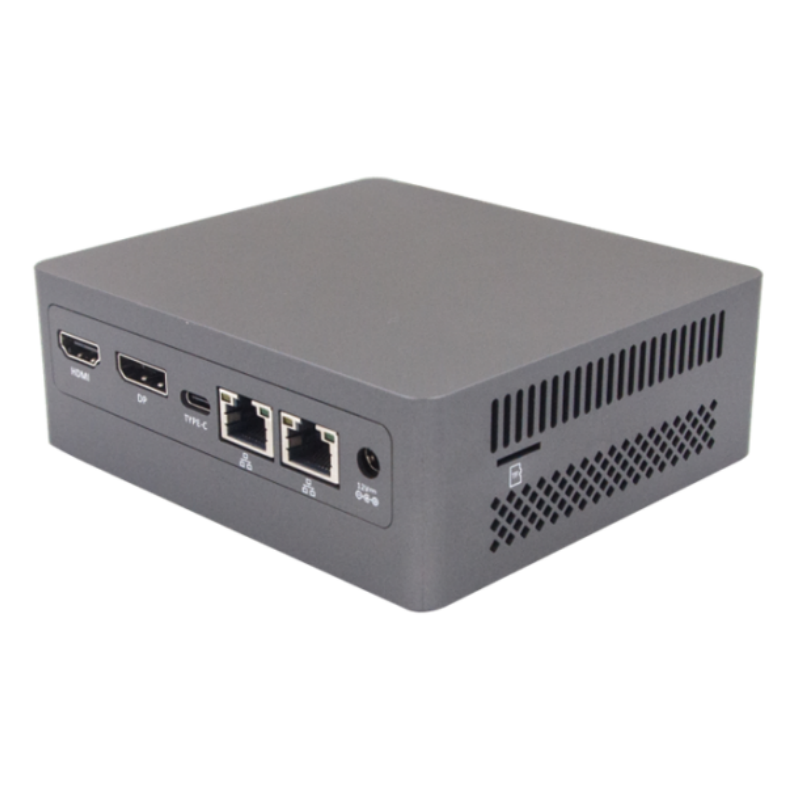

Product Appearance:
