Intel Alder Lake or Raptor Lake CPU OPS：OPS-E600U
Model：OPS-E600U
CPU Type： Support Intel® 12th Gen Alder Lake Core i3/i5/i7 Processor, 15W to 45W Compatible with Intel® 13th Gen Core Raptor Lake i3 /i5/i7 Processor
Dimensions： 119mm×180mm × 30mm
Color： Black
Material：Metal
Memory：2 × SO-DIMM,DDR4,Max.32GB
Storage：1 × M.2 2280 for SSD,SATA or Nvme
GPU Type：Intel® IRIS Xe Graphics
Display Interface： 1 × HDMI1.4b(3840 × 2160 @30Hz,on front panel) 1 × HDMI2.0a(3840 × 2160 @60Hz,by JAE) 1 × DP1.2 (7680 x 4320 @60Hz,by JAE)
Product Characteristics：
*Intel® 12th/13th Moblie SOC CPU
*2 x SO-DIMM DDR4, Up to 32GB
*1 x OPS Interface (HDMI2.0a,4K@60Hz)
*1 x HDMI1.4b, Support 4K@30Hz(on front panel)
*1 x M.2 2280 Support SSD SATA or Nvme
*1 x RJ45, 1 x M.2 2230 for WiFi/BT
*Intel OPS Specification

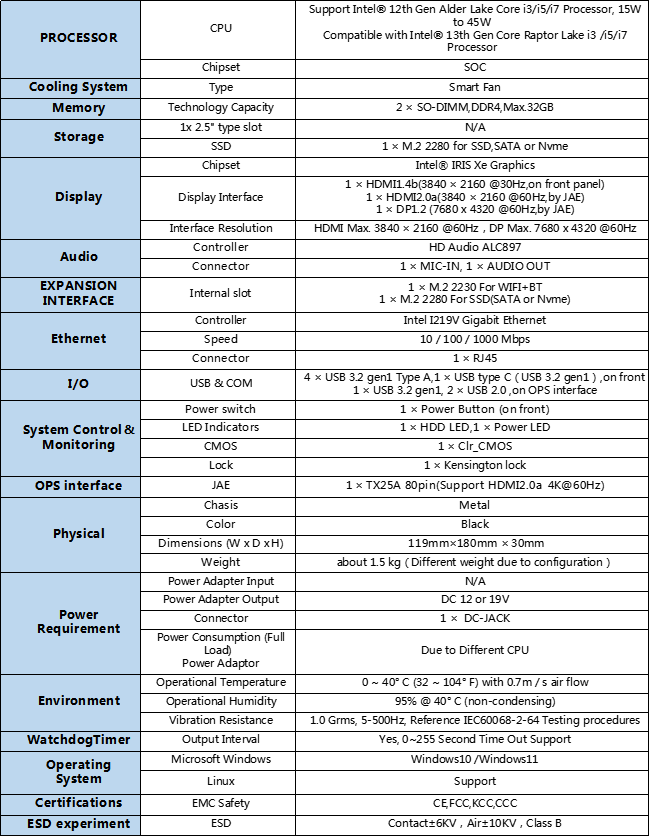

Product Specification：
*Product specifications are subject to change without prior notice

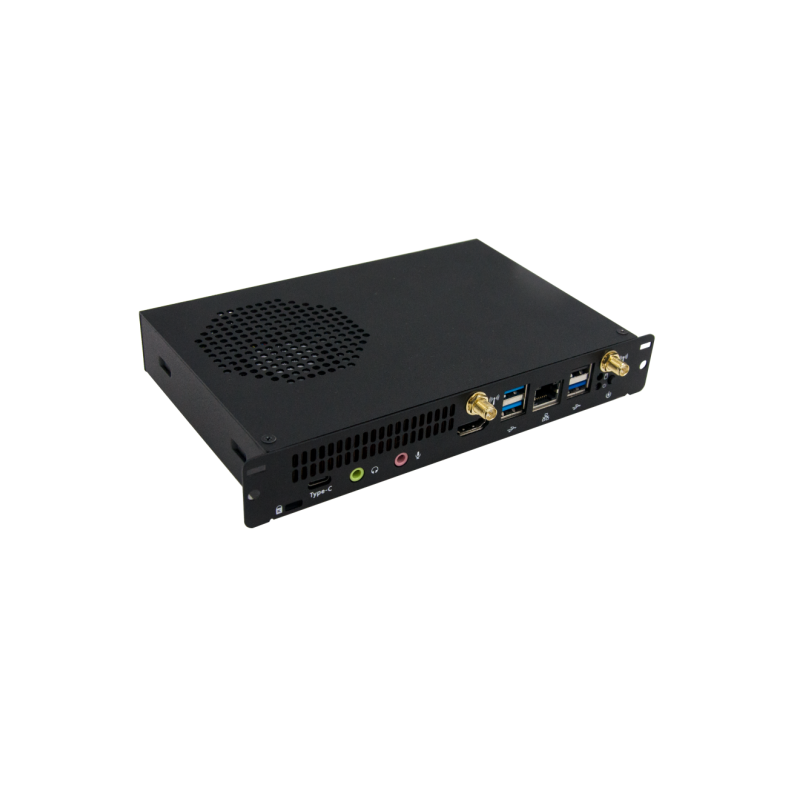

Product Appearance：
