POS Motherboard with Intel® Alder Lake-N Processor：WPADLNP2R100
Model：WPADLNP2R100
CPU Type：Intel® Alder Lake-N N95/N97/N100 Series CPU
Motherboard Size：170mm *170mm
Memory：Support DDR4-2666/2933 MHz, SO-DIMM Slot, 单通道Up to 16GB
Storage：1*M.2 KEY-M 2280 SATA/PCIE adaptive + 1*SATA 3.0 Port
GPU：Intel® UHD Graphics
Display Interface：1*VGA（Max. 1920*1200@60Hz，Built-in VGA pin） 2*LVDS1/eDP1pin（Max. LVDS 1920*1200@60Hz： eDP 3840x2160@60Hz：eDP colay LVDS （Default LVDS） 1*HDMI，Colay DB9 COM（Max.3840x2160@30Hz）
Power Adapter Output：DC 12V power supply, 55/25mm interface
Operating System：Linux/Windows
Product Characteristics：
*Intel® Alder Lake-N N95/N97/N100 Series CPU
* Support 4*USB 3.0, 6*USB2.0
* Provide VGA, HDMI, LVDS&eDP display, support single display and double display,Three display copy, extended display output
* 1xRTL8111 Gigabit Ethernet
* Support M.2 WIFI, M.2 SSD SATA (optional PCIE)
* Support cash box pin interface
* Support LPT printer pin
* Support 2 RS232 serial ports (1xDB9, 2x9 pins)

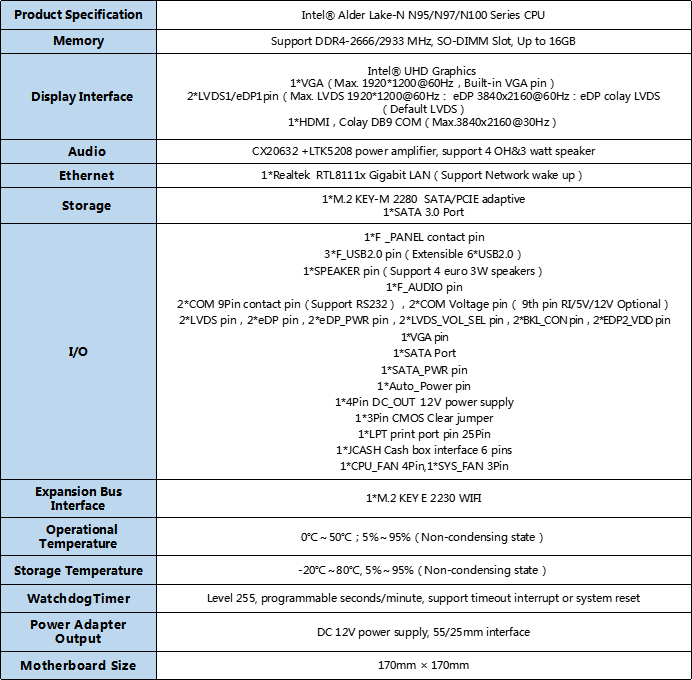

Product Specification：
*Product specifications are subject to change without prior notice

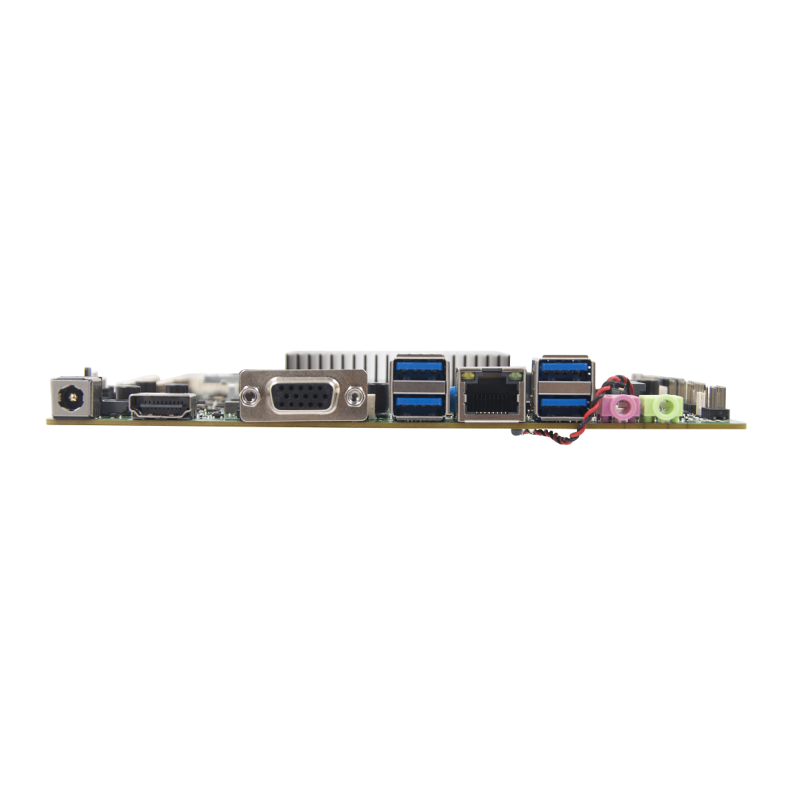

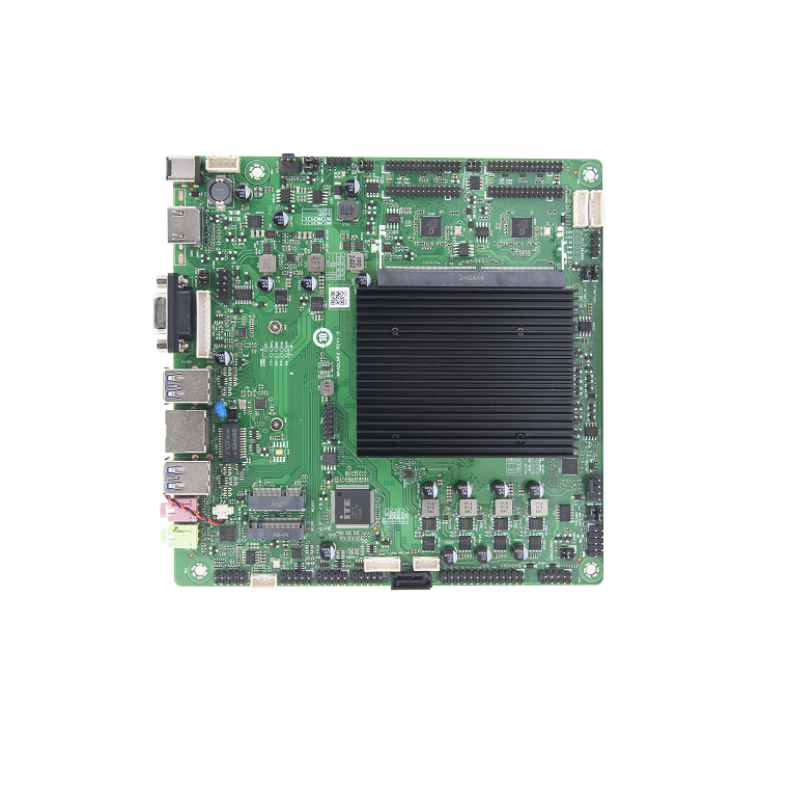

Product Appearance：
