POS motherboards for Intel® Jasper Lake N5105/N5095 Series CPU：WTJSLP1R210
Model：WTJSLP1R210
CPU Type：Intel ® Jasper Lake N5105/N5095 Series CPU
Motherboard Size：170mm *170mm
Memory：Support DDR4-2666/2933 MHz, SO-DIMM Slot, Up to 16GB
Stroage：1*M.2 KEY-M 2280 SATA/PCIE adaptive 1*SATA 3.0 Port
GPU：Intel® UHD Graphics
Display Interface：1*VGA（Max,：1920*1200@60Hz，Built-in VGA pin） 1*LVDS1/eDP1 pin（Max.：LVDS 1920*1200@60Hz： eDP 3840x2160@60Hz：eDP colay LVDS （Default LVDS） 1*eDP2 pin（Max.：3840x2160@60Hz，Choose between eDP2 and HMDI） 1*HDMI，Colay DB9 COM（Max.：3840x2160@30Hz
Power Adapter Output：DC 12V power supply, 55/25mm interface
Operating System：Linux/Windows
Product Characteristics：
*Intel® Jasper Lake N5105/N5095 Series CPU
*Support 4*USB 3.0，6*USB2.0
*Provide VGA，HDMI，LVDS&eDP display，Support single display and double display, three display copy, extended display output
*1xRTL8111HGigabit Ethernet
*Support M.2 WIFI, M.2 SSD SATA/PCIE adaptive
* Support cash box pin interface
* Support LPT printer pin
* Support 2 RS232 serial ports (1xDB9, 2x9 pins)

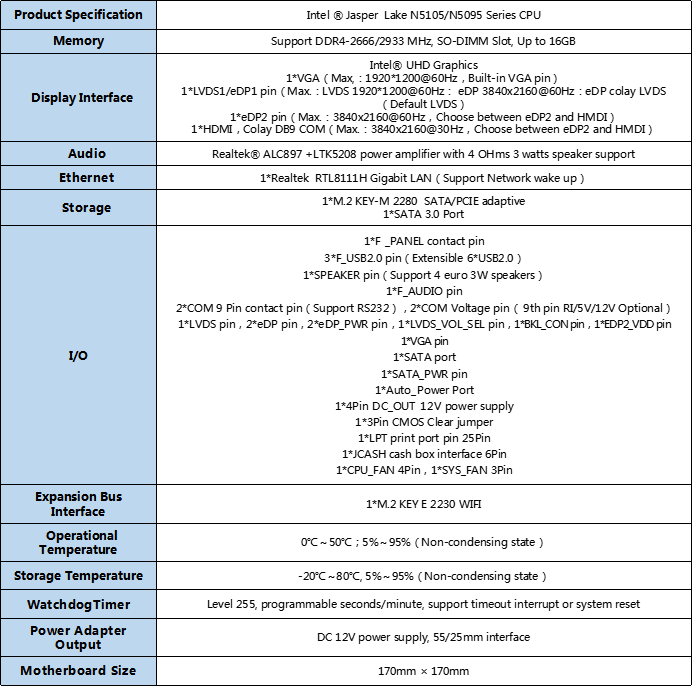

Product Specification：
*Product specifications are subject to change without prior notice

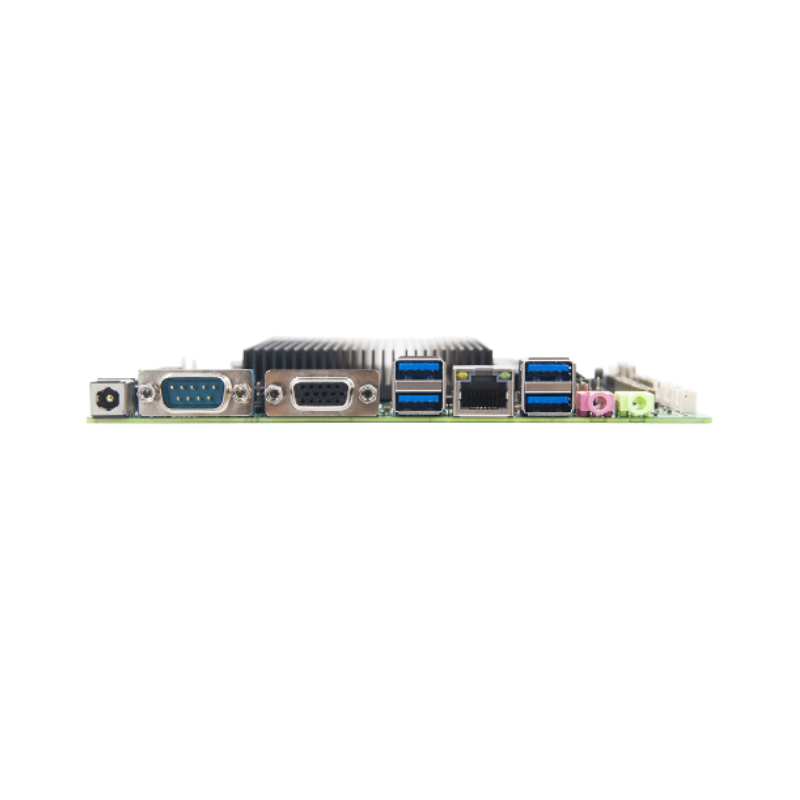

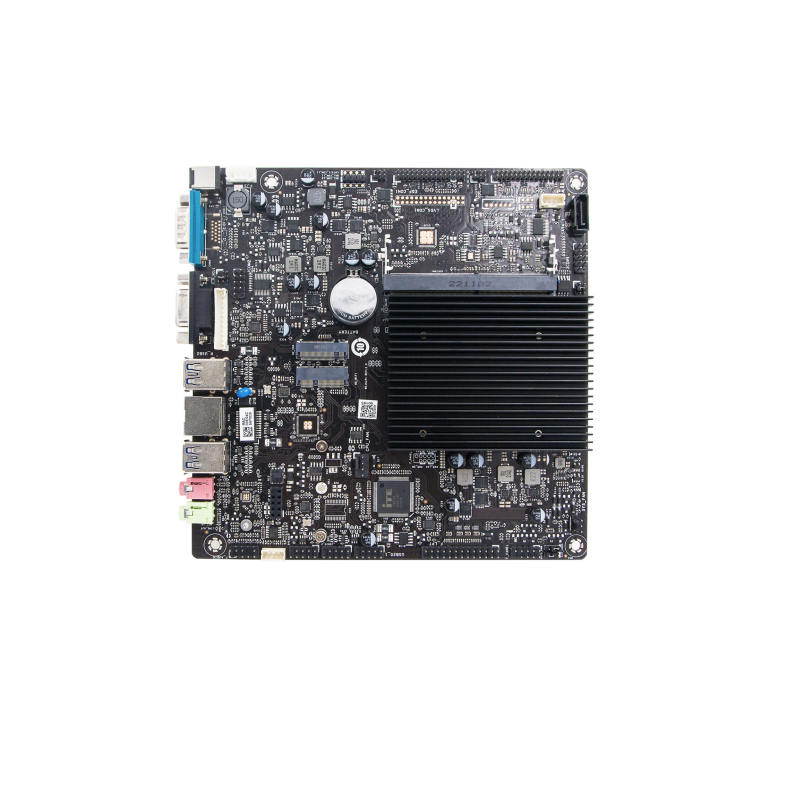

Product Appearance：
