POS motherboard for Intel® Apollo Lake J3455/E3950 Series CPU：WZAPLT4R120
Model：WZAPLT4R120
CPU Type：Intel® Apollo Lake J3455/E3950 Series CPU
Motherboard Size：170mm *170mm
Memory：Support DDR3L，SO-DIMM Slot，Up to 8GB
Stroage：1* SATA3.0 + 1* M.2 SATA SSD 2280
GPU：Intel® HD Graphics 500
Display Interface：1*VGA（Max.：1920*1200@60Hz,Built-in VGA pin） 1*LVDS1/eDP1（Max.：LVDS 1920*1200@60Hz： eDP 1920x1080@60Hz：eDP colay LVDS （Default LVDS） 1*HDMI（Max.：3840x2160@30Hz） Support three display output
Power Adapter Output：Adopts DC 12V power supply
Operating System：Linux/Windows
Product characteristics：
*Intel ® Apollo Lake J3455/E3950 Series CPU
*Support 4*USB 3.0，5*USB2.0
*Provide VGA, HDMI, LVDS&eDP display, support single display and dual display,Three display copy, extended display output
* Support 1xRTL8111H Gigabit Ethernet
* Support M.2 SATA SSD 2280, M.2 WIFI/BT
* Support TPM pin interface
* Support LPT printer pin
* Support 2 RS232 serial pins, support RI/5V/12V adjustment

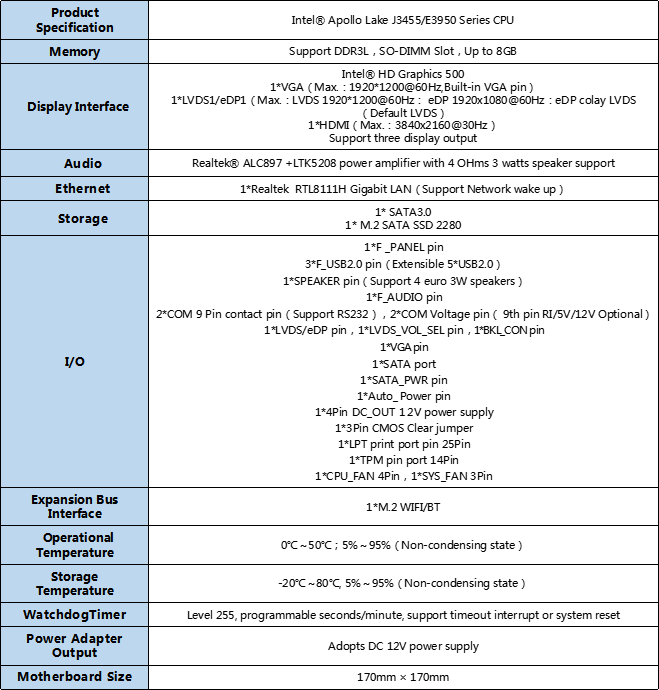

Product Specifications：
*Product specifications are subject to change without prior notice

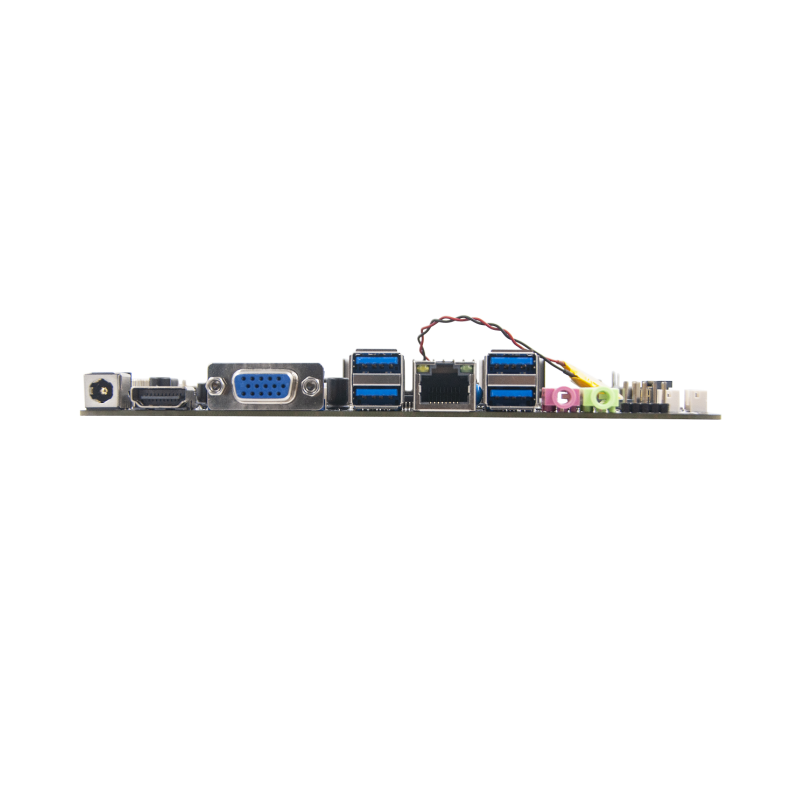

Product Appearance：
