Thin Mini-ITX motherboard with Intel HM570 chipset：T11900H-D4
Model：T11900H-D4
CPU Type：Intel® Core™ i5-11400H Processor 6M Cache, up to 4.50 GHz Intel® Core™ i9-11900H Processor 6M Cache, up to 4.90 GHz
Chipset：Intel HM570
Memory：2 x DDR4 SO-DIMM supporting up to 64GB of system memory
Storage：1×SATA3.0 Rate 600 MB/s（默认）+1XM.2 SSD(2242 2260 2280)支持SATA\PCIE信号
GPU：Intel® UHD Graphics for 11th Gen Intel® Processors
Display Interface：1×DP/VGA （Maximum resolution：1920 x 1080 @ 60Hz) 1×HDMI （Maximum resolution：3840 x 2160 @ 60Hz） 1×LVDS （Maximum resolution：1920 x 1080 @ 60Hz)
Power input：DC power supply: 19V/4.7A is recommended
Operating System：Win10/11/Linux® 64
Product Characteristics：
*Supports Intel HM570 chipset
*Supports two SO-DIMM slots, up to 64 GB.
*4*USB 2.0\6*USB 3.0 available
*Support DP/VGA/HDMI display output
*Supports LVDS display output
*Realtek Network Chip is used to ensure high-speed and stable data transmission

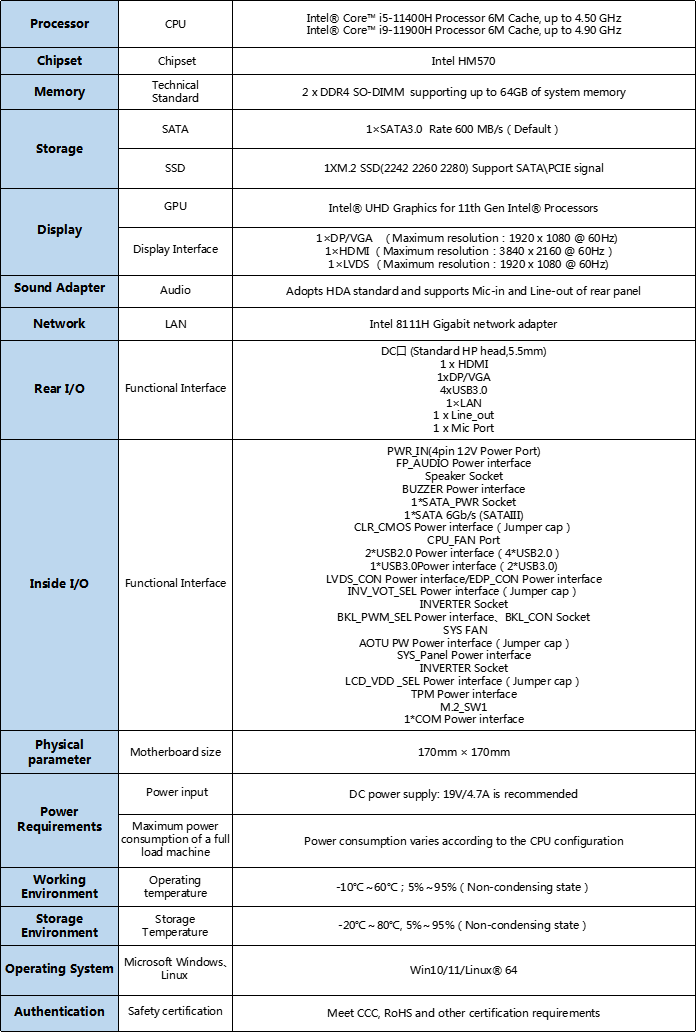

Product Specification：
*Product specifications are subject to change without prior notice
Product Appearance：
