Thin Mini-ITX motherboard with Intel Alder Lake-U/P/H Series CPU：T12450H-D4
Model：T12450H-D4
CPU Type：Intel® Core™ i5-12450H Processor 12M Cache, up to 4.40 GHz
Chipset：NA
Memory：2X DDR4 supporting up to 64GB
Storage：1×SATA3.0 Rate 600 MB/s（默认）+1XM.2 SSD(2242 2260 2280)支持SATA/PCIE信号(IC或者电阻切换）
GPU：Intel® UHD Graphics for 12th Gen Intel® Processors
Display Interface： 1×VGA （最大分辨率：1920 x 1080 @ 60Hz) 1×HDMI （最大分辨率：3840 x 2160 @ 60Hz） 1×LVDS （最大分辨率：1920 x 1080 @ 60Hz)
Power input：DC power supply 19v
Operating System：Win10/11/Linux® 64
Product Characteristics：
*Supports Alder Lake-U/P/H series cpus
*Supports two SO-DIMM slots, up to 64 GB
*5* USB 2.0, 2*USB 3.0, 2*USB 3.2 available
*Support VGA/HDMI display output
*Supports LVDS display output
*Realtek Network Chip is used to ensure high-speed and stable data transmission

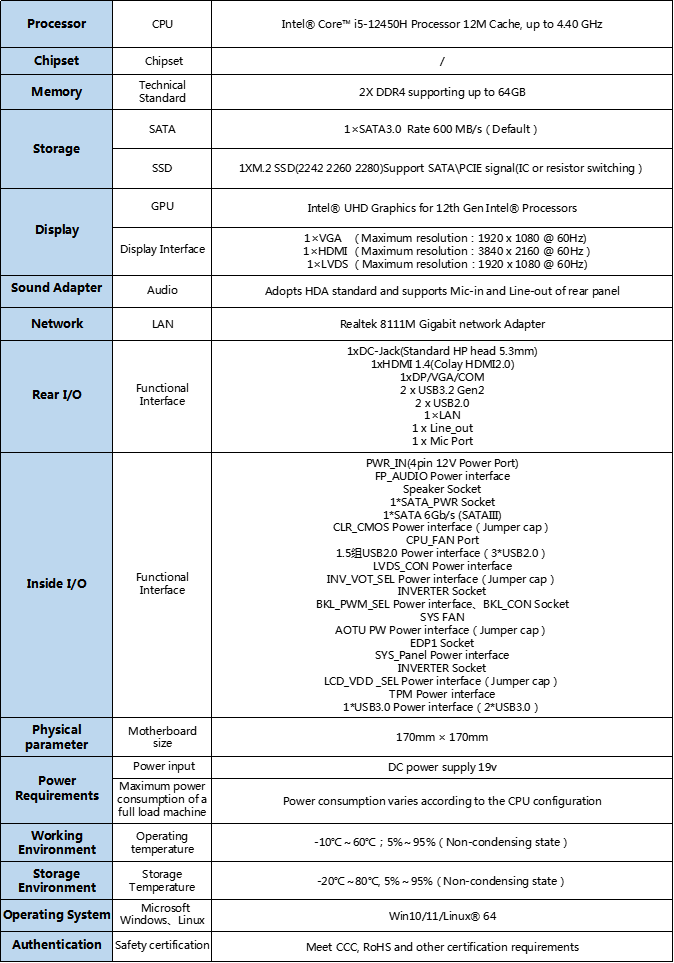

Product Specification：
*Product specifications are subject to change without prior notice

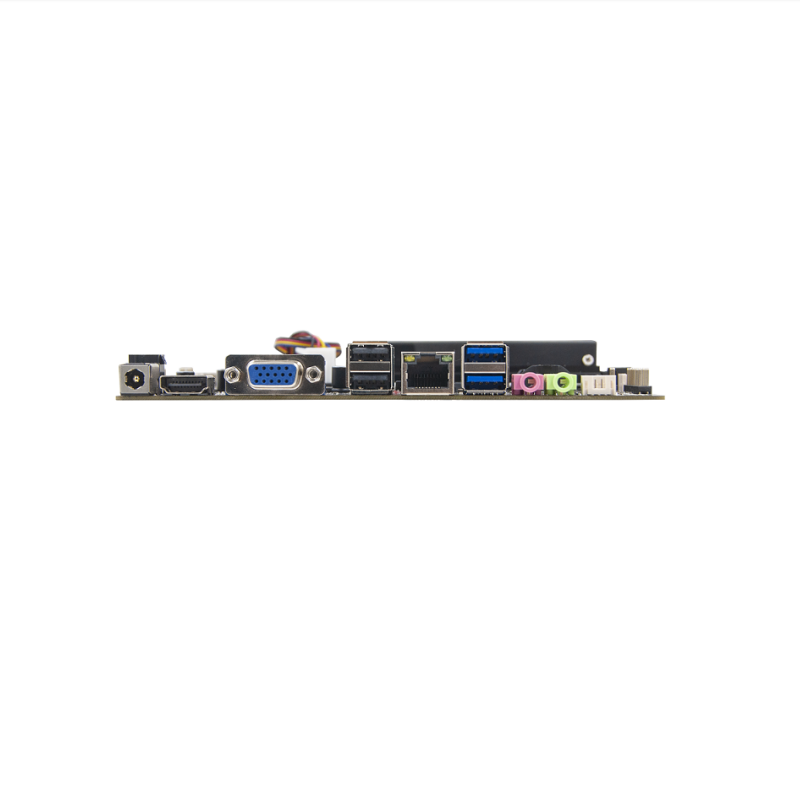

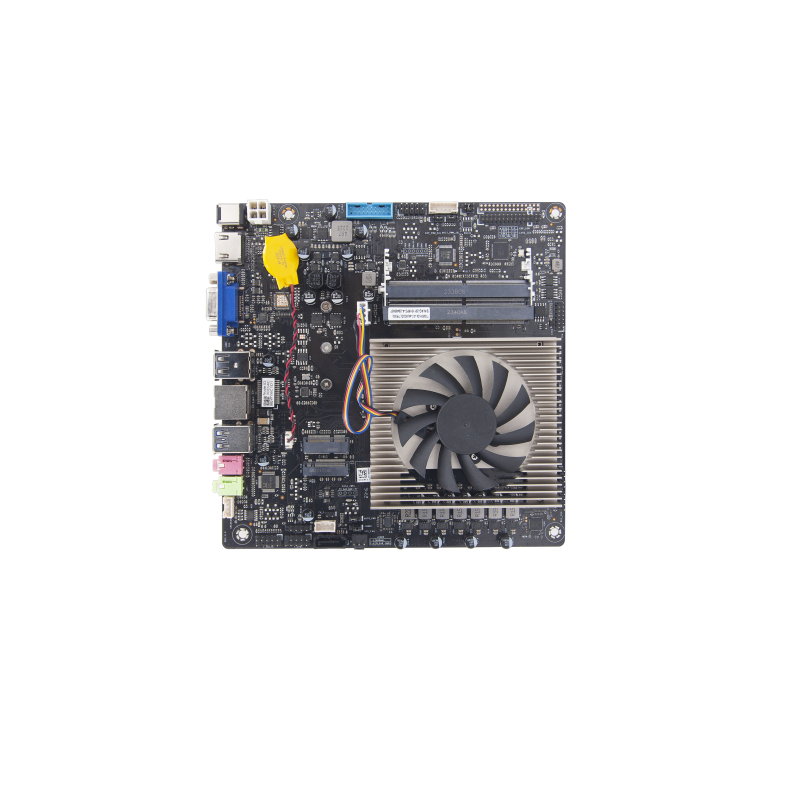

Product Appearance：
