Thin Mini-ITX motherboard with Intel Alder Lake-N series CPU：TN100-S4
Model：TN100-S4
CPU Type：Intel® N100 Processor, up to 3.40 GHz Intel® N95 Processor, up to 3.40 GHz Intel® Core i3-N300 Processor, up to 3.80 GHz Intel® Core i3-N305 Processor, up to 3.80 GHz
Chipset：NA
Memory：1X SO-DIMM DDR4 supporting up to 16GB
Storage： 1XM.2 SSD(2242 2260 2280)Support SATA\PCIE signal
GPU：Intel® UHD Graphics for 12th Gen Intel® Processors
Display Interface： 1×VGA （Maximum resolution：1920 x 1080 @ 60Hz) 1×HDMI （Maximum resolution：3840 x 2160 @ 60Hz） 1×LVDS （Maximum resolution：1920 x 1080 @ 60Hz)
Power Input：DC Power supply 12v(5.5mm)
Operating System：Win10/11/Linux® 64
Product Characteristics：
*Supports Intel Alder Lake-N processors
*Supports one SO-DIMM slot, up to 16 GB
*7*USB 2.0, 2*USB 3.2 available
*Support VGA/HDMI display output
*Supports LVDS display output
*Realtek network chip is used to ensure high-speed and stable data transmission
Product Specification：
*Product specifications are subject to change without prior notice

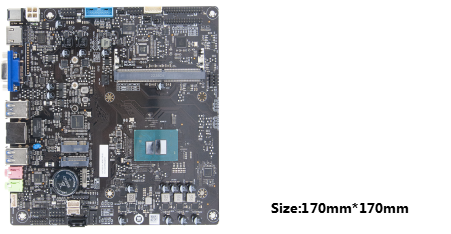

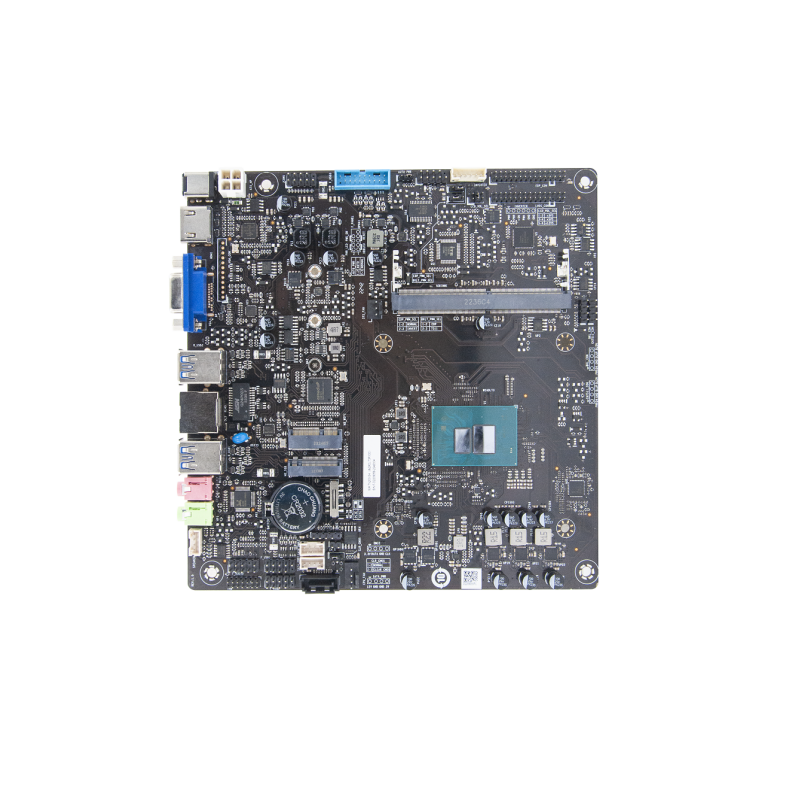

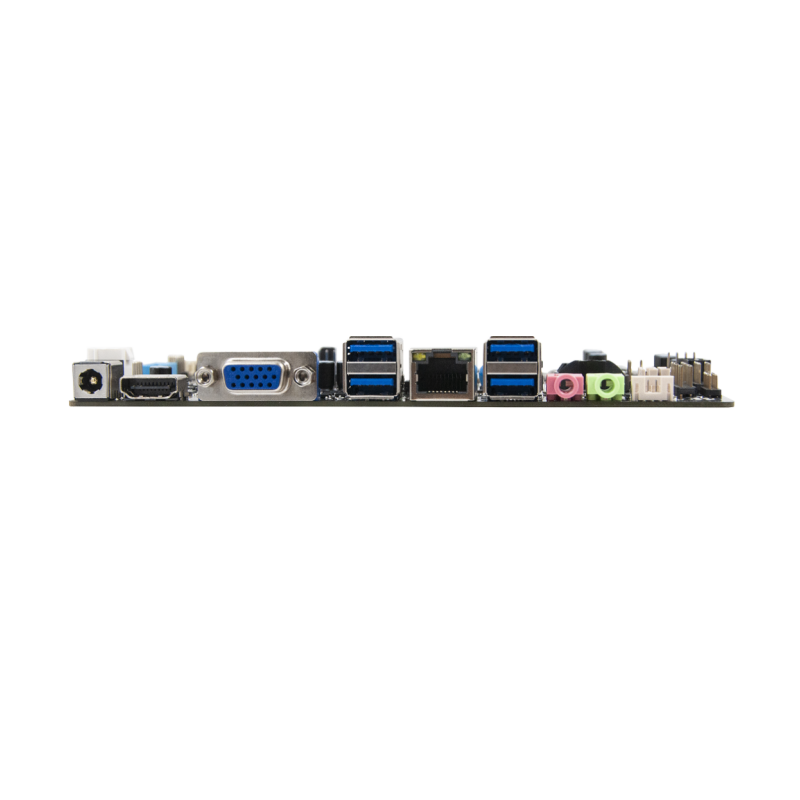

Product Appearance：
