Thin Mini-ITX motherboard with Intel Q670 series chipset：TQ670-D5
Model：TQ670-D5
CPU Type： Support 12Gen/13Gen/14Gen Intel core I7, I5, I3 Pentium, Celeron Processor in 1700Pin(65W)
Chipset：Intel Q670
Memory：2*SO_DIMM DDR5 1.10V 4800MHZ 频率内存 最大支持64G
Storage：2×SATA3.0 Rate 600 MB/s（Default）+1XM.2 SSD(2242 2260 2280)Support SATA\PCIE signa
GPU：By CPU
Display Interface： 1×DP （Maximum resolution：1920 x 1080 @ 60Hz) 1×HDMI （Maximum resolution：3840 x 2160 @ 60Hz） 1×LVDS （Maximum resolution：1920 x 1080 @ 60Hz)
Power Input：DC power supply 19V
Operating System：Win10/11/Linux® 64
Product Characteristics：
*Support Intel LGA1700 package 12/13/14 i7/i5/i3/Pentium™/Celeron™
*Supports two SO-DIMM slots, up to 64 GB
*4*USB 2.0, 1*USB 3.0, 3*USB 3.2 available
*Support VGA/HDMI display output
*Supports LVDS display output
*Realtek network chip is used to ensure high-speed and stable data transmission

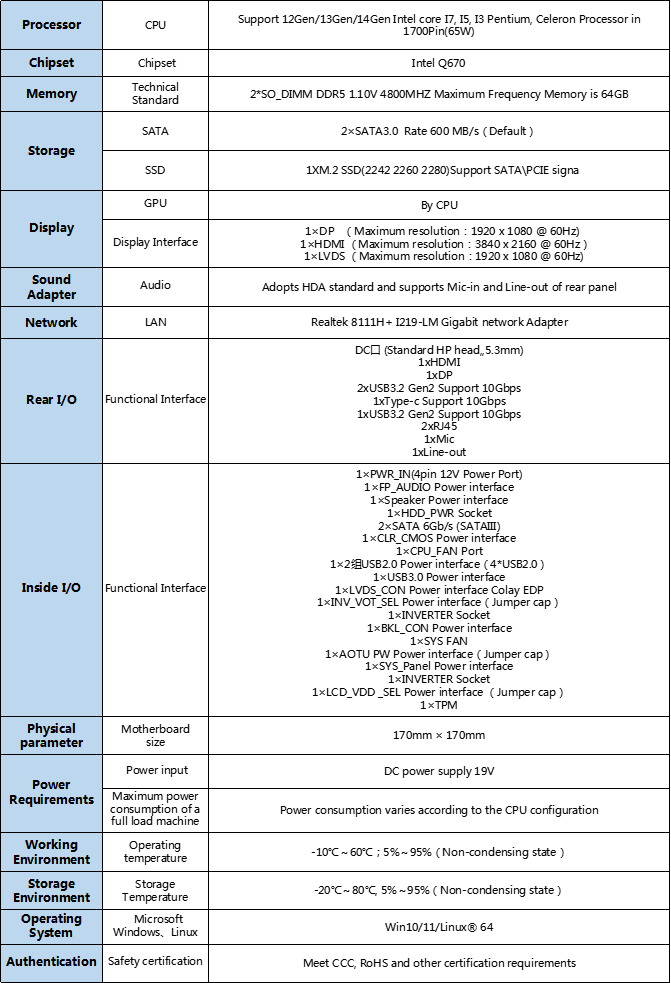

Product Specification：
*Product specifications are subject to change without prior notice
Product Appearance：
