Intel® Alder Lake-N 3.5'' Motherboard：IOT3-AD12N
Model：IOT3-AD12N
CPU Type：Intel® Alder Lake-N N95, N97, N100, Core™ i3-N305 CPU

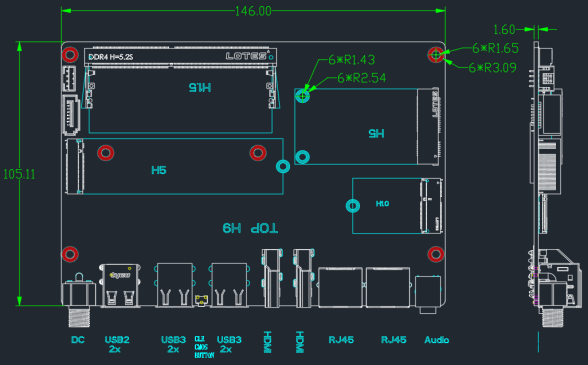

Motherboard Size：146mm*105mm
Memory：DDR4-3200, 1*SO-DIMM, up to 16 GB
Stroage：1*SATA 3.0,1*M.2 (Key-M, 2242/2280, PCIe NVME SSD)
Network：2*intel I226-V 2.5Gbps PCIe Ethernet Controller, RJ45
Display Interface：2*HDMI 1.4: max 4096*2160@30Hz 1*LVDS/eDP（ LVDS, max 1920*1200@60Hz；eDP, max 4096*2304@60Hz）Default LVDS
Power Supply：DC 12/19/24V (With Latch JACK)
Operating System：Windows 10/11 64-bit Linux
DESCRIPTION
Product Characteristics：
*Intel® Alder Lake-N N95, N97, N100, Core™ i3-N305 CPU
* Support 4*USB 3.0, 5*USB 2.0
* Support 2*HDMI, 1*LVDS/eDP

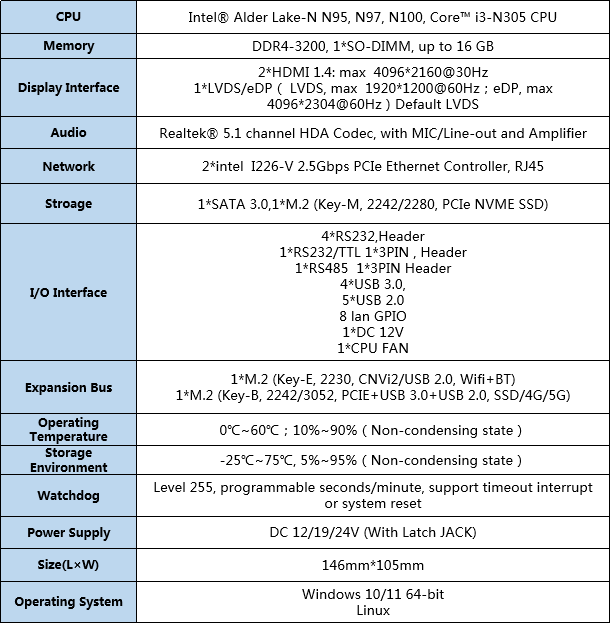

Product Specification：
*Product specifications are subject to change without prior notice

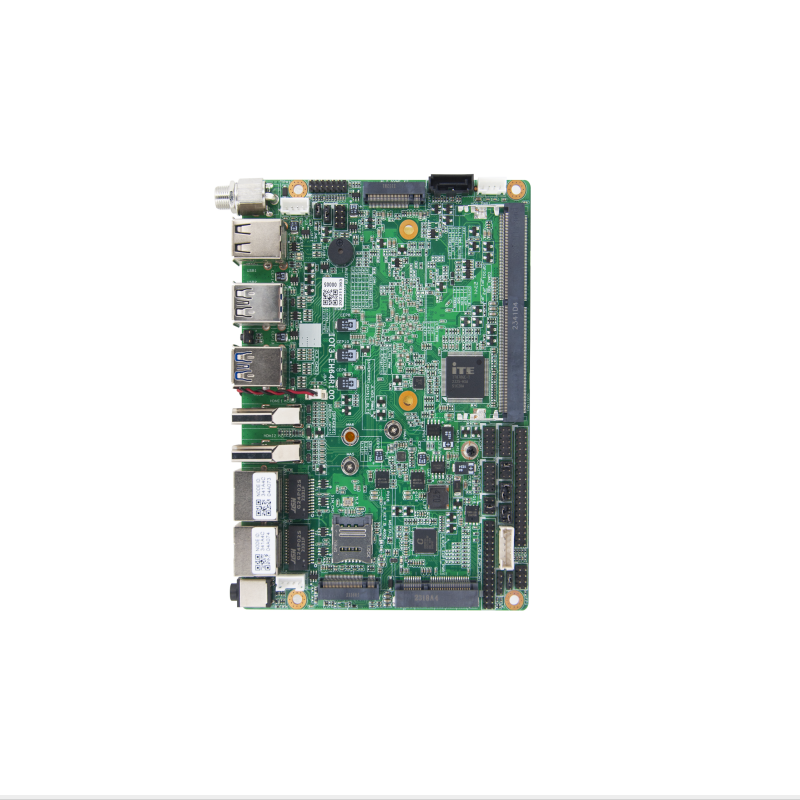

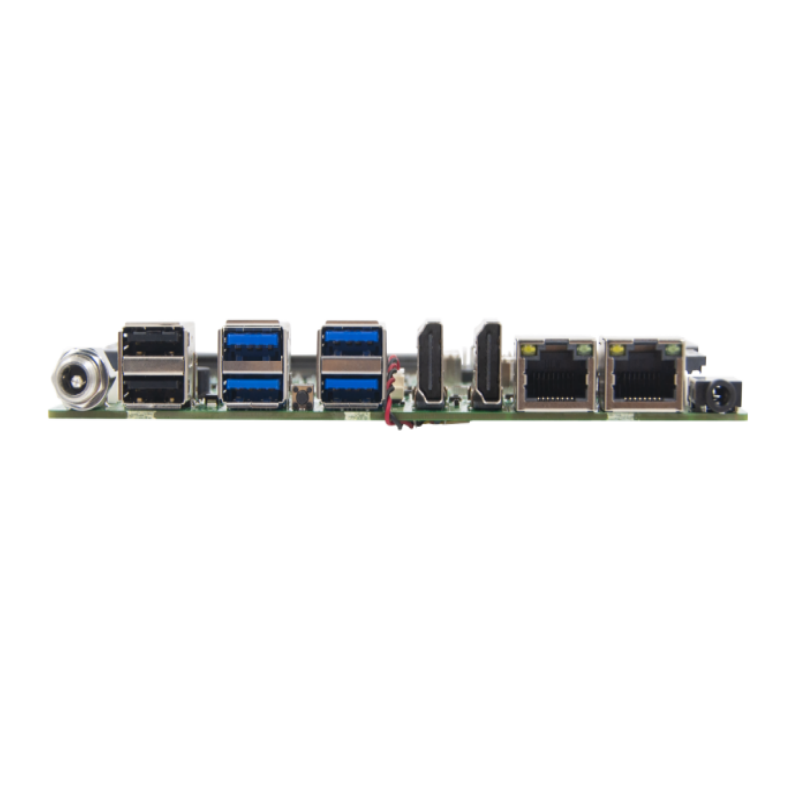

Product Appearance：
