Intel® Elkhart Lake 3.5 "Motherboard：IOT3-EH64
Model：IOT3-EH64
CPU Type：Intel® Elkhart Lake Celeron® J6412 CPU
Motherboard Size：146mm*105mm
Memory：DDR4-2666/2933/3200, 1*SO-DIMM, up to 32 GB
Stroage：1*SATA 3.0, 1*mSATA
Network：2*intel I210 1Gbps PCIe Ethernet Controller, RJ45 （LAN2 with dual layer USB2.0 colay)
Display Interface：2*HDMI 1.4: max 4096*2160@30Hz 1*LVDS/eDP（ LVDS, max 1920*1200@60Hz；eDP, max 4096*2304@60Hz）Default LVDS
Power Supply：DC 12V (with latch JACK) - also built-in 1*4PIN socket
Operating System：Windows 10/11 64-bit Linux
DESCRIPTION
Product Characteristics：
*Intel® Elkhart Lake Celeron® J6412 CPU
* Support 3 USB 3.0, 7 USB 2.0
* Support 2*HDMI, 1*LVDS/eDP

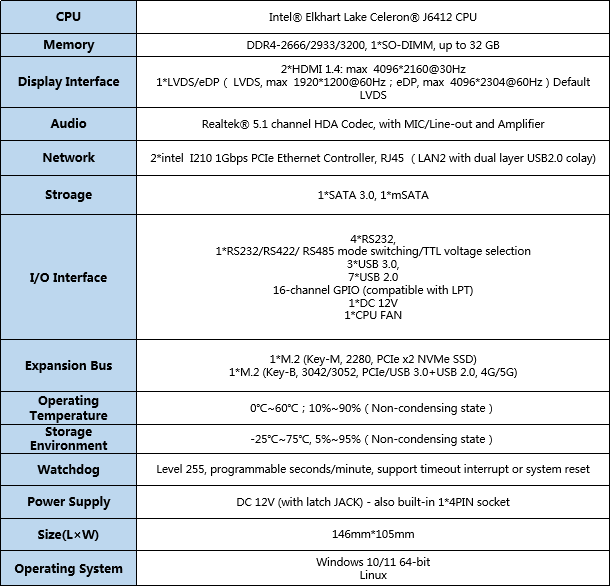

Product Specification：
*Product specifications are subject to change without prior notice

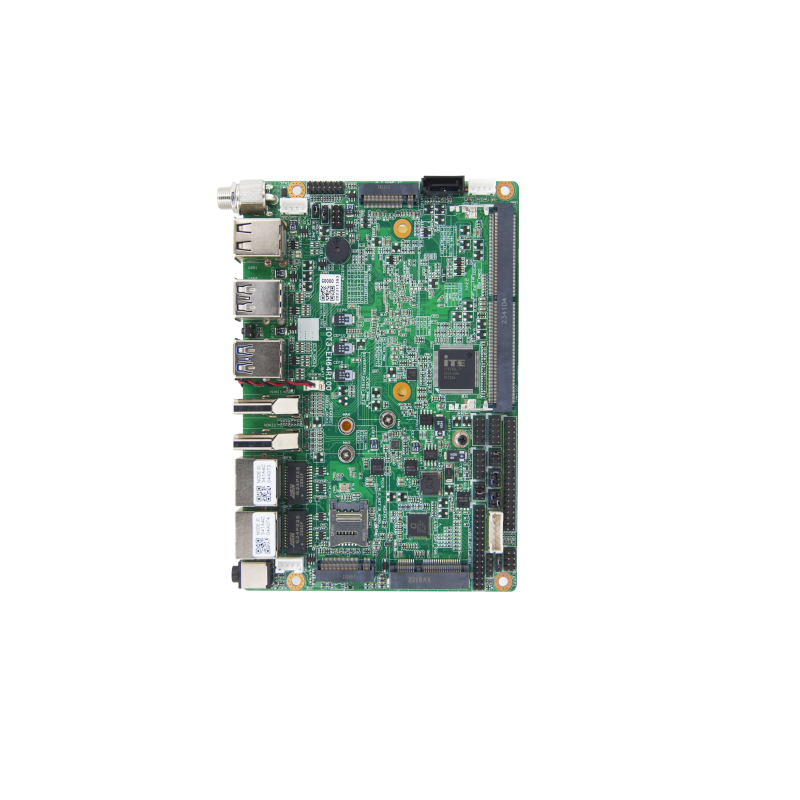

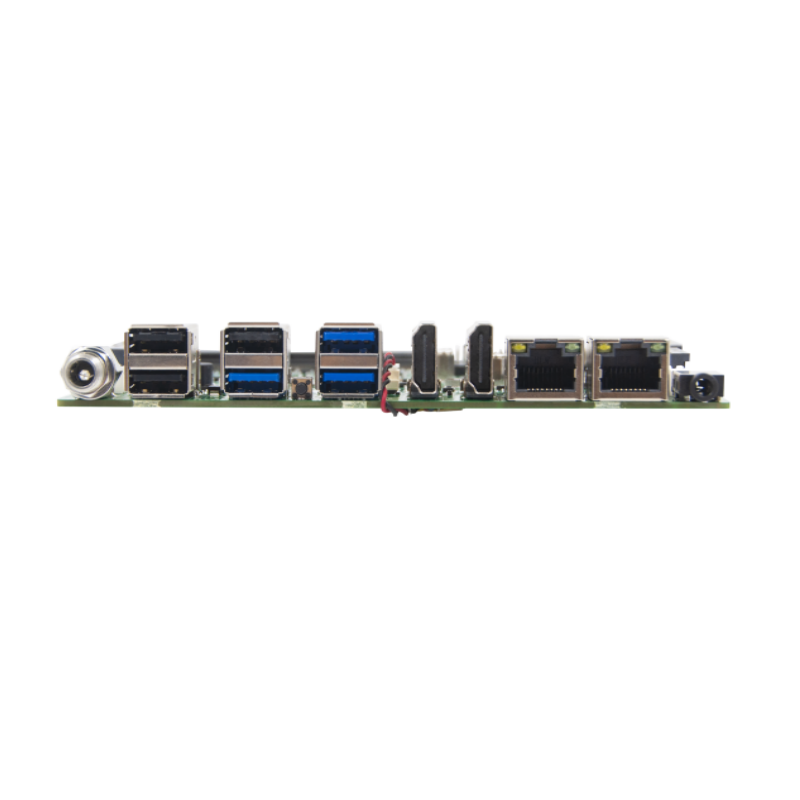

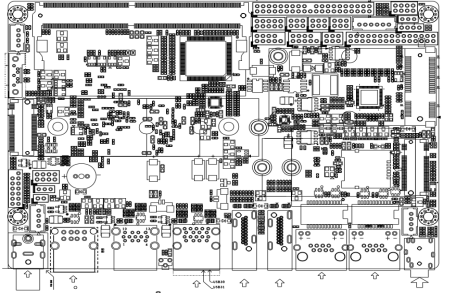

Product Appearance：
