Intel® 11th 3.5 "Motherboard：IOT3-TGL11U

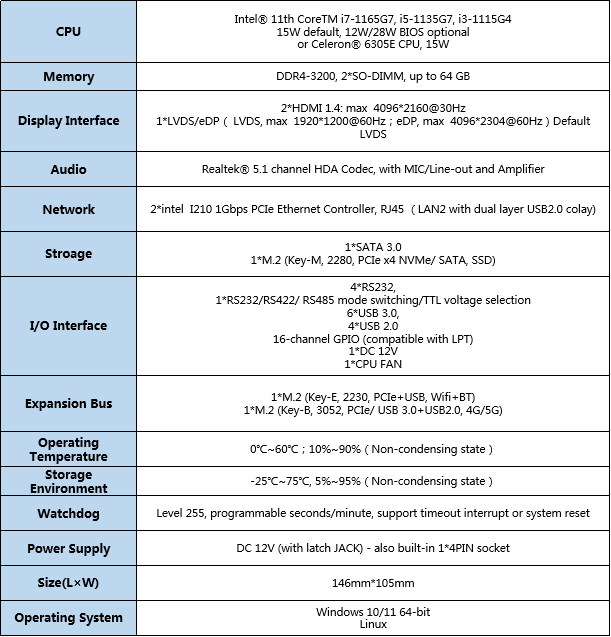

Model：IOT3-TGL11U

CPU Type：Intel® 11th CoreTM i7-1165G7, i5-1135G7, i3-1115G4 15W default, 12W/28W BIOS optional or Celeron® 6305E CPU, 15W

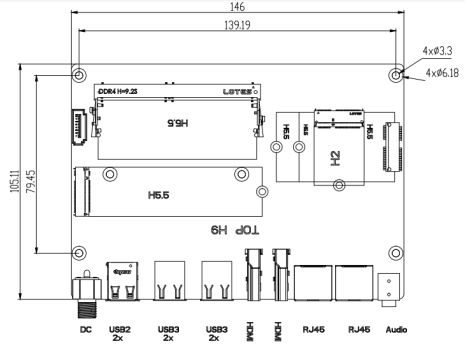

Motherboard Size：146mm*105mm

Memory：DDR4-3200, 2*SO-DIMM, up to 64 GB

Stroage：1*SATA 3.0+1*M.2 (Key-M, 2280, PCIe x4 NVMe/ SATA, SSD)

Network：2*intel I210 1Gbps PCIe Ethernet Controller, RJ45 （LAN2 with dual layer USB2.0 colay)

Display Interface：2*HDMI 1.4: max 4096*2160@30Hz 1*LVDS/eDP（ LVDS, max 1920*1200@60Hz；eDP, max 4096*2304@60Hz）Default LVDS

Power Supply：DC 12V (with latch JACK) - also built-in 1*4PIN socket

Operating System：Windows 10/11 64-bit Linux
