Intel® KabyLake U 3.5 "Motherboard：IOT3-KBL2
Model：IOT3-KBL2
CPU Type： Intel® 6th/7th Gen Core™ /Celeron U-series
Chipset：Intel® SOC
Memory：Provides 1 DDR4 SO-DIMM memory slot, MAX 16GB
Stroage：Provides 1 x SATA ports and 1 x mSATA ports
Network：Provides 2 x 10/100/1000Mbps network interface
Display Interface：1×VGA, 1 HDMI, 1× dual-channel 24-bit LVDS display interface, supporting separate display, dual-display replication, dual-display extended output; VGA maximum resolution: 2560× 1600@60Hz; LVDS maximum resolution: 1920×1200; HDMI maximum
Power Supply：Adopt DC12~19V power supply
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 in7 SP1 ，8.1 ，10
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Interface anti-static design, effectively protect the core components of the system, enhance system reliability
* Adopt Intel network chip to ensure high-speed and stable data transmission
* DC wide voltage input to meet different application requirements

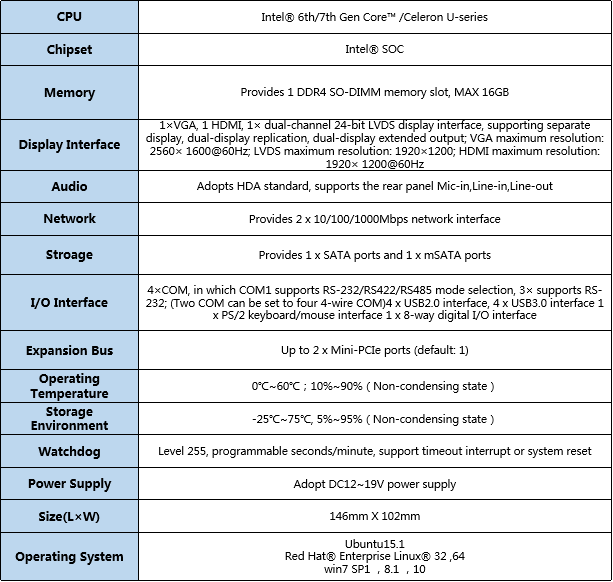

Product Specification：
*Product specifications are subject to change without prior notice

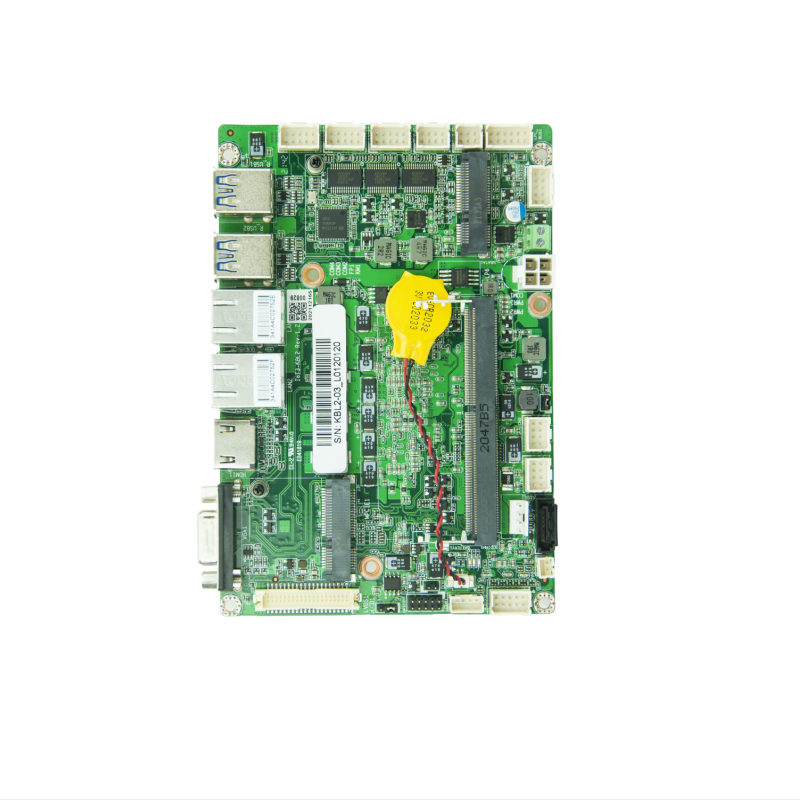

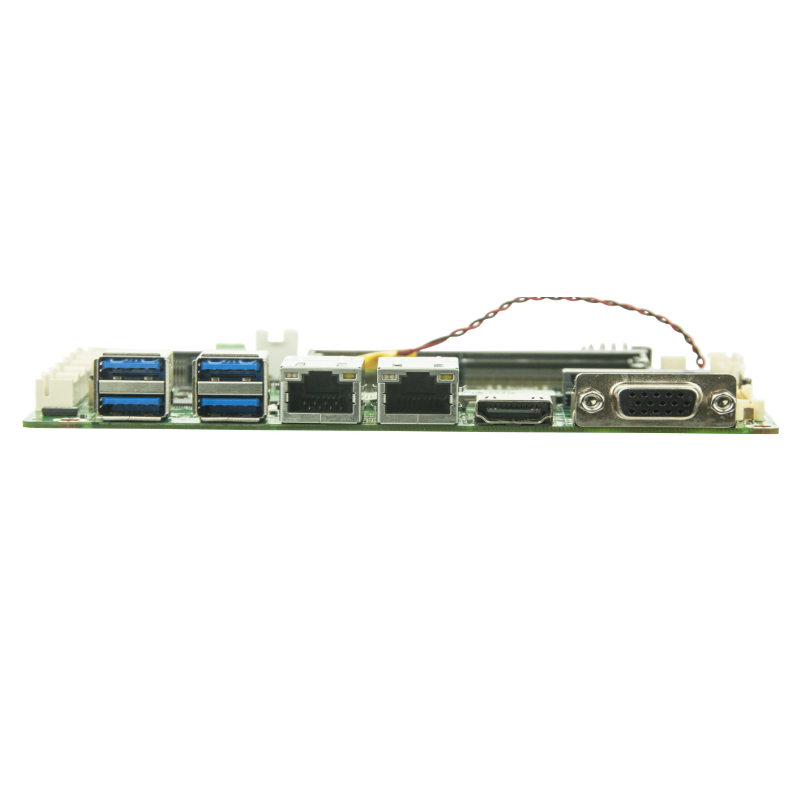

Product Appearance：
