M-ATX Motherboard With Intel B560 Series Chipset：T9B560
Model：T9B560
CPU Type：10/11 generation i3/i5/i7/i9/Pentium™/Celeron™ in Intel LGA1200 package
Chipset：Intel B560
Memory：4 x 288PIN DDR4 UDIMM slot. Each 32GB DIMM supports a maximum of 128GB
Stroage：Provides 3 x SATA ports (supports the SATA3.0 standard, 3 by default, the maximum transmission rate is 6Gb/s),1 MINI PCIe(SATA3.0) 1×M.2 interface (NVME supported)
Network：2 x 10/100/1000Mbps network interface (i225V+219V)
Display Interface：1×DP,1×VGA，1×HDMI，Support independent three display output
Power Supply：ATX power supply, support S0, S1, S4, S5
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
* Support 10/11 generation i3/i5/i7/i9/Pentium™/Celeron™ in Intel LGA1200 package
* Supports 4 DIMM slots, up to 128G.
* 6×USB 2.0\6×USB 3.0 available
* Support VGA/HDMI/DP, single display double display three display copy, extended display output
* Adopt Intel network chip to ensure high-speed and stable data transmission

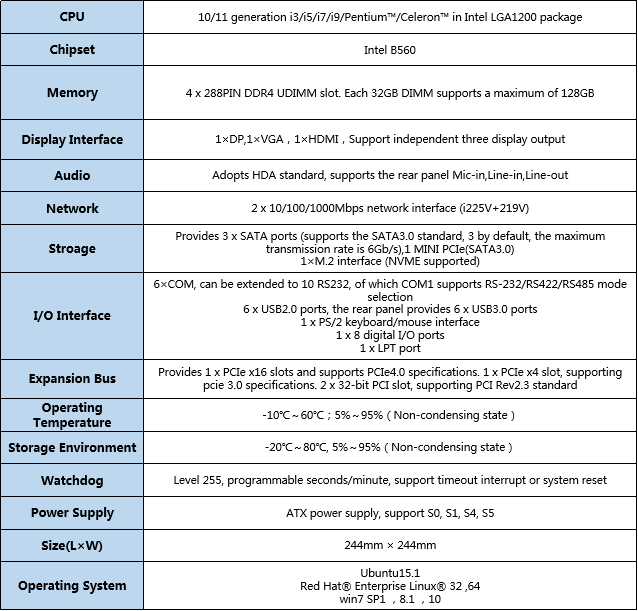

Product Specification：
*Product specifications are subject to change without prior notice

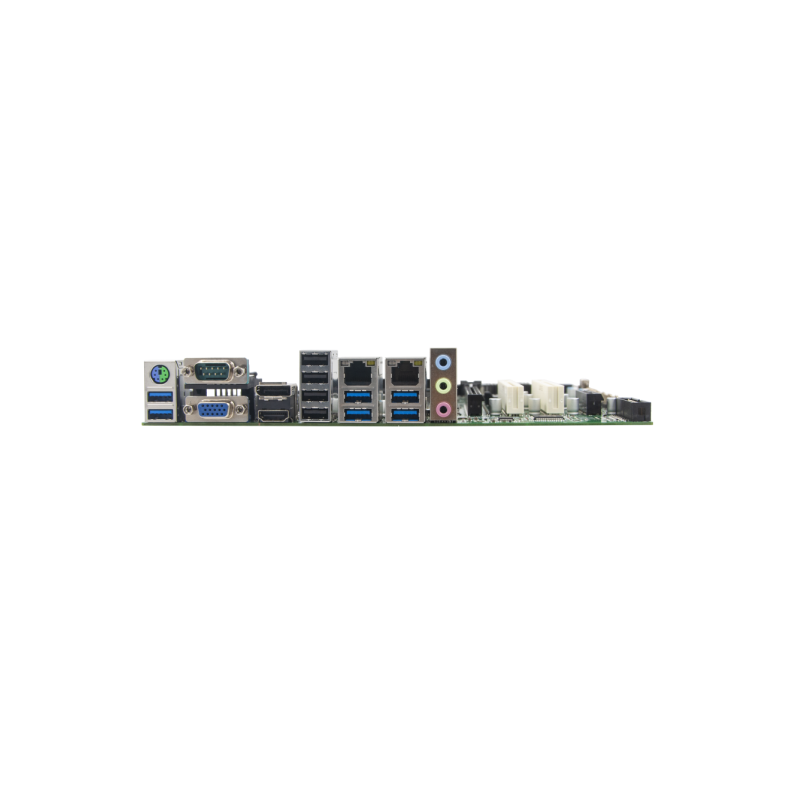

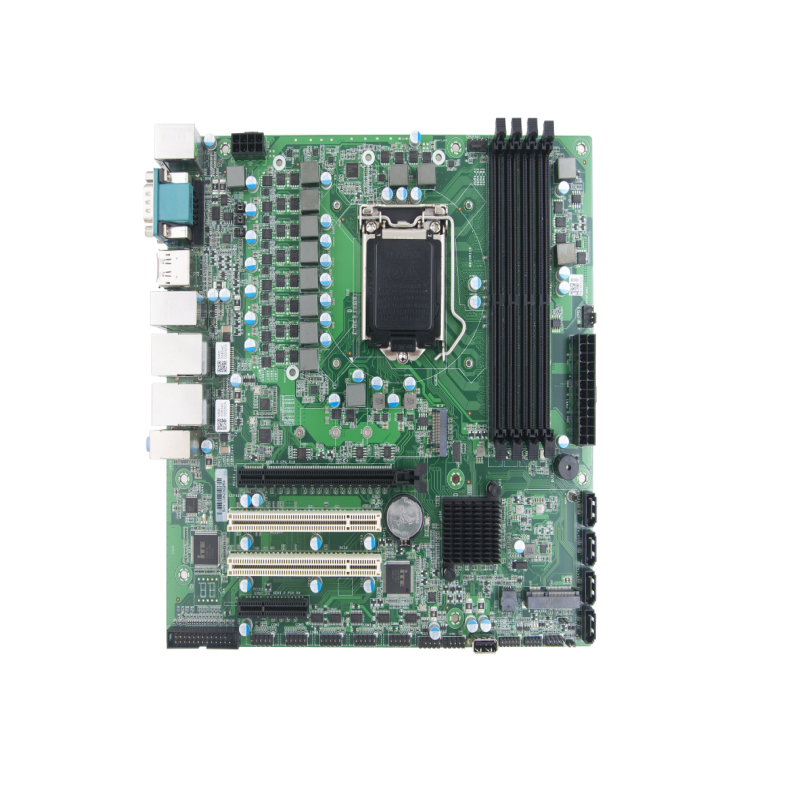

Product Appearance：
