M-ATX Motherboard With Intel B660 Series Chipset：T9B660
Model：T9B660
CPU Type：Intel® 12/13/14代 Generation CoreTM i3/i5/i7/i9, Pentium®, Celeron® CPU, LGA1700 TDP 65W~125W
Chipset：Intel B660
Memory：4 x 288PIN DDR4 UDIMM slot (Up to 3200 MT/s, Non-ECC), supports a maximum of 128GB
Stroage：3×SATA3.0 Rate 600 MB/s（Default） 1×M.2 pcie4.0 X4 ( pcie &sata adaptive, support 2280/2260/2242))
Network：1×10/100/1000MbpsNetwork interface (LAN1 is intel I219-V, supports network wake-up) 1×10/100/1000/2500Mbp Network interface (LAN2 is intel I225-V3)
Display Interface：CPU integrated display, Intel ®Graphics 770 1 x DP (Max resolution: 7680 x 4320@60Hz) 1 x VGA (Max resolution: 1920 x 1080@60Hz 1 x HDMI (Max resolution: 3840 x 2160@60Hz) Support independent three display output, connected to an indepen
Power Supply：ATX power supply, support S0, S1, S4, S5
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*12/13/14 generation of Intel LGA1700 package supported
i3/i5/i7/i9/Pentium™/Celeron™
* Supports 4 DIMM slots, up to 128G.
* 7 USB 2.0, 2 USB 3.1, 4 USB 3.2 are available
* Support VGA/HDMI/DP, single display double display three display replication,
Extended display output
* Adopt Intel network chip to ensure high-speed and stable data transmission

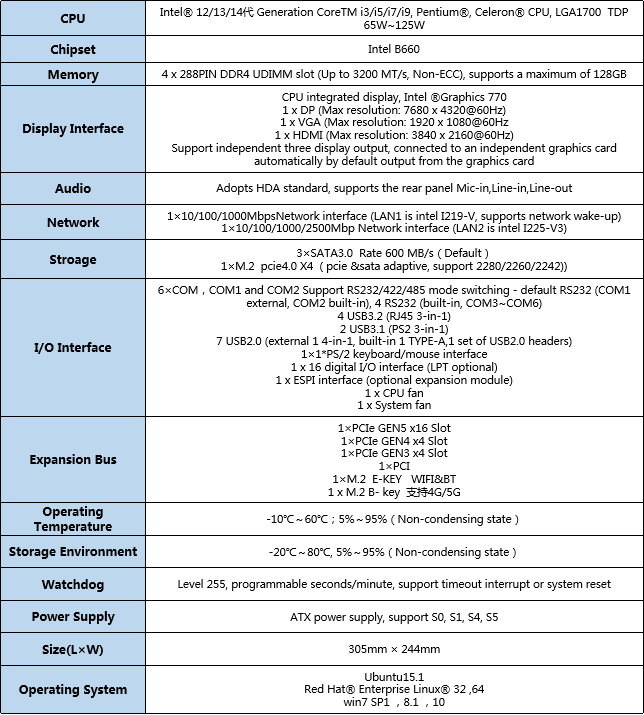

Product Specification：
*Product specifications are subject to change without prior notice

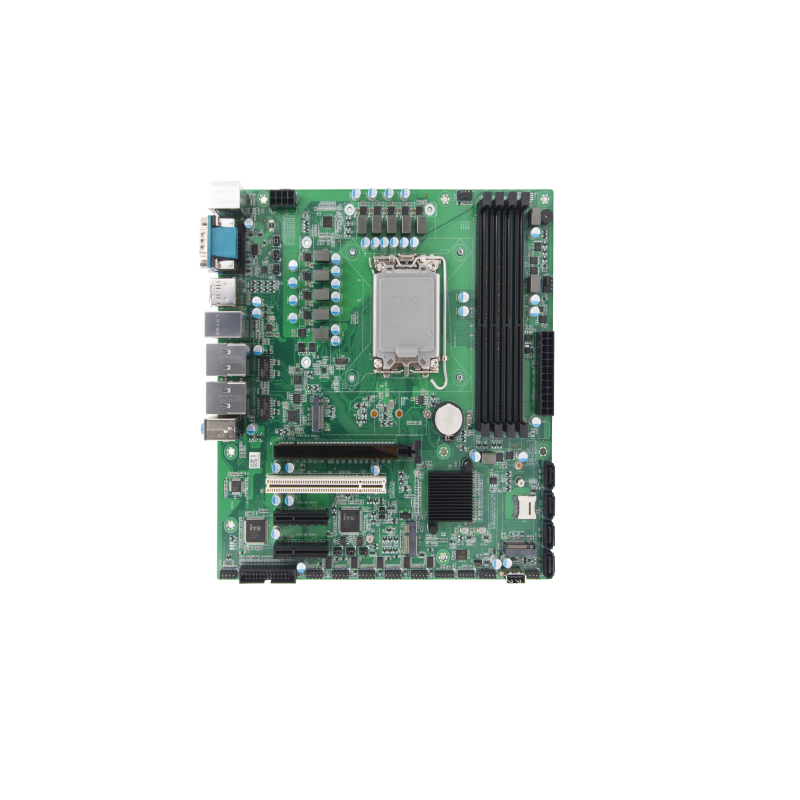

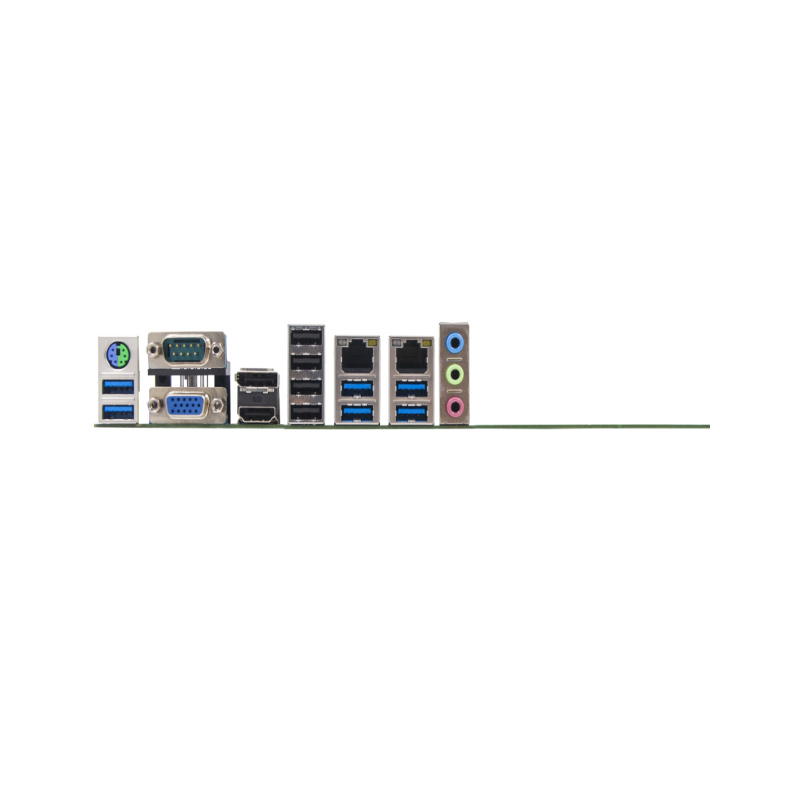

Product Appearance：
