M-ATX Motherboard With Intel H110 Series Chipset：T9H110
Model：T9H110
CPU Type:Intel LGA1151 Gen6/7/8/9 i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel H110
Memory：Provides a 2 x 288PIN DDR4 2133MHz DIMM slot with a single 16GB DIMM and supports a maximum of 32GB
Stroage：Provides 4 x SATA3.0 ports
Network：Provides 2 x Intel 10/100/1000Mbps network interface
Display Interface：1×DVI / 1×VGA / 1×HDMI, support independent dual display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Supply：ATX power supply, support S0, S1, S4, S5
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Support Intel Gen6/7/8/9 i3/i5/i7 CPU, Pentium/Celeron CPU
*2 DDR4 2133MHz UDIMM slots, up to 32GB
* Support VGA/DVI/HDMI, support independent dual output
* With 4 USB3.0, 6 USB2.0, 6 COM (expandable to 10)
* Adopt Intel network chip to ensure high-speed and stable data transmission
* H110 chipset, with native PCI bus resources, to ensure PCI bus compatibility

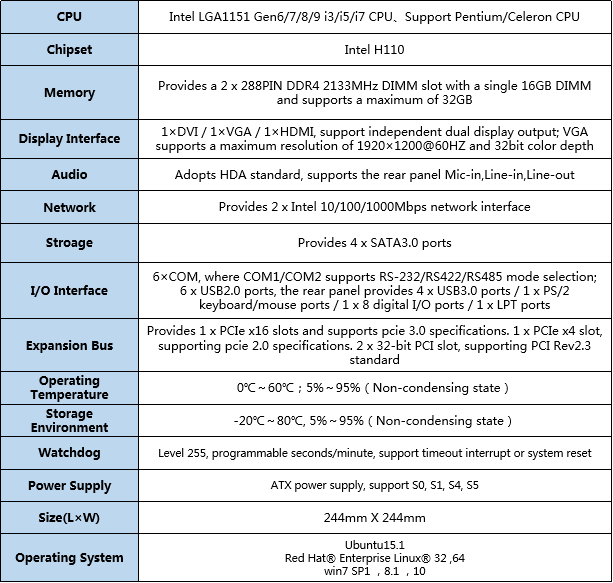

Product Specification：
*Product specifications are subject to change without prior notice

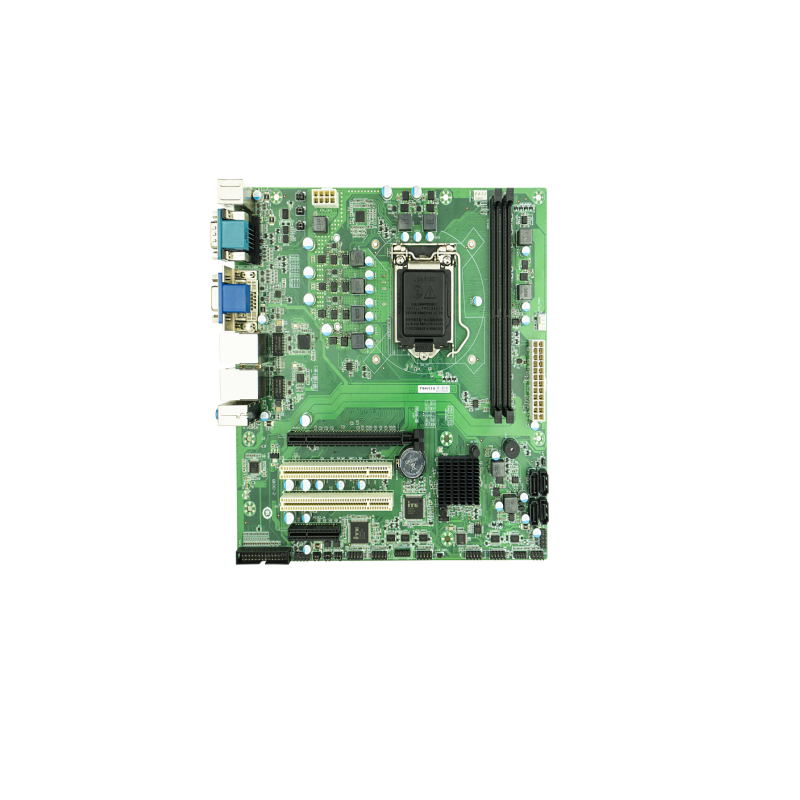

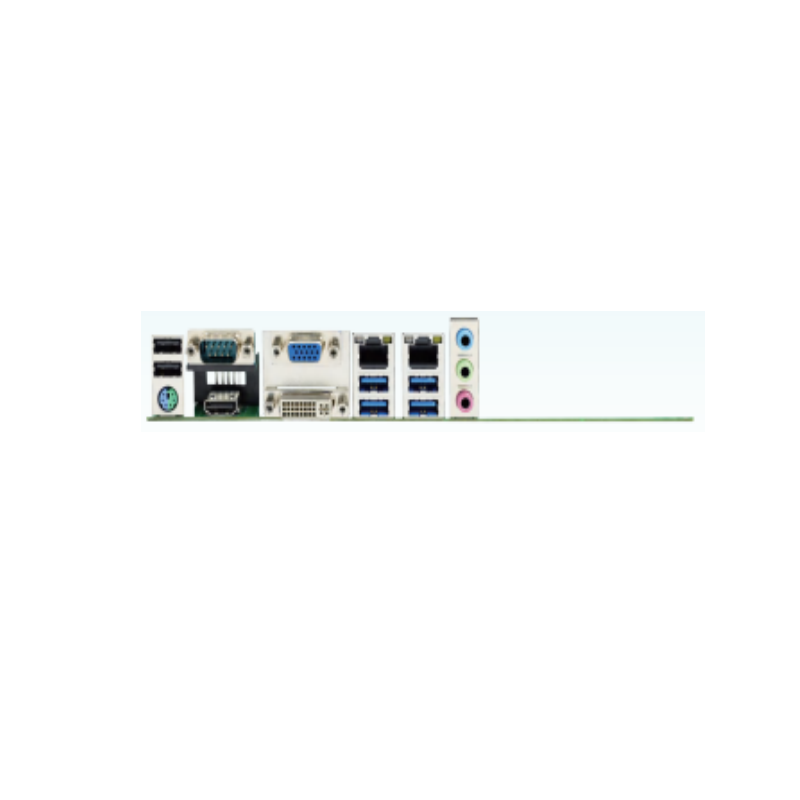

Product Appearance：
