M-ATX Motherboard With Intel H310C Series Chipset：T9H310C
Model：T9H310C
CPU Type：Intel LGA1151 Gen6/7/8/9thi3/i5/i7 CPU、support Pentium/Celeron CPU
Chipset：Intel H310C
Memory：Provides 2 x 288PIN DDR4 2133/2400MHz/2666MHz DIMM slots, each 32GB, the maximum support 64GB, 2400MHz requires intel 7th generation kabylake CPU support, 2666MHz requires 8/9 generation coffeelake CPU support
Stroage：Provides 3 x SATA interface.1 x MSATA (supports SATA3.0 standard, 3 by default, maximum transmission rate of 6Gb/s)
Network：Provides 2 x 10/100/1000Mbps network interface
Display Interface：1×DVI,1×VGA,1× HDMI, support independent dual display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Supply：ATX power supply, support S0, S1, S4, S5
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Provide onboard encryption scheme (optional), which can realize hardware and software binding or key data storage and encryption
* Adopt Intel network chip to ensure high-speed and stable data transmission

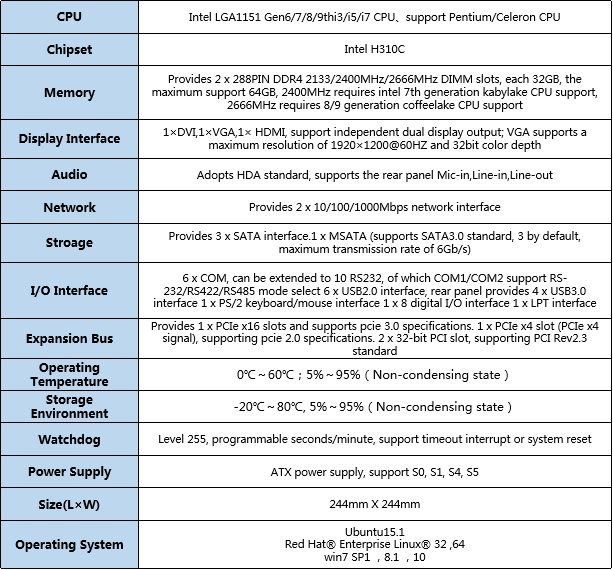

Product Specification：
*Product specifications are subject to change without prior notice

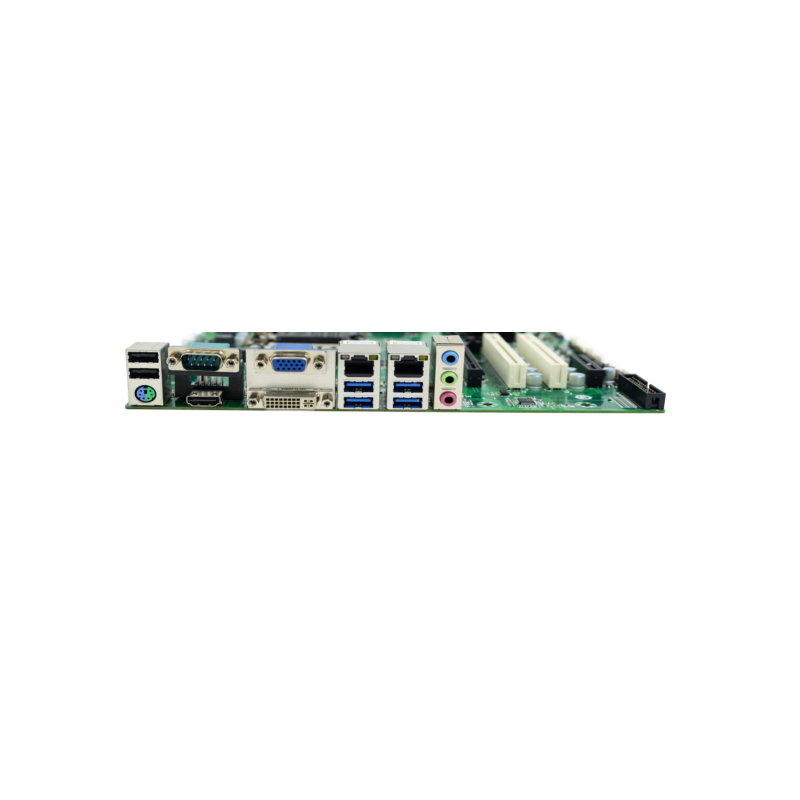

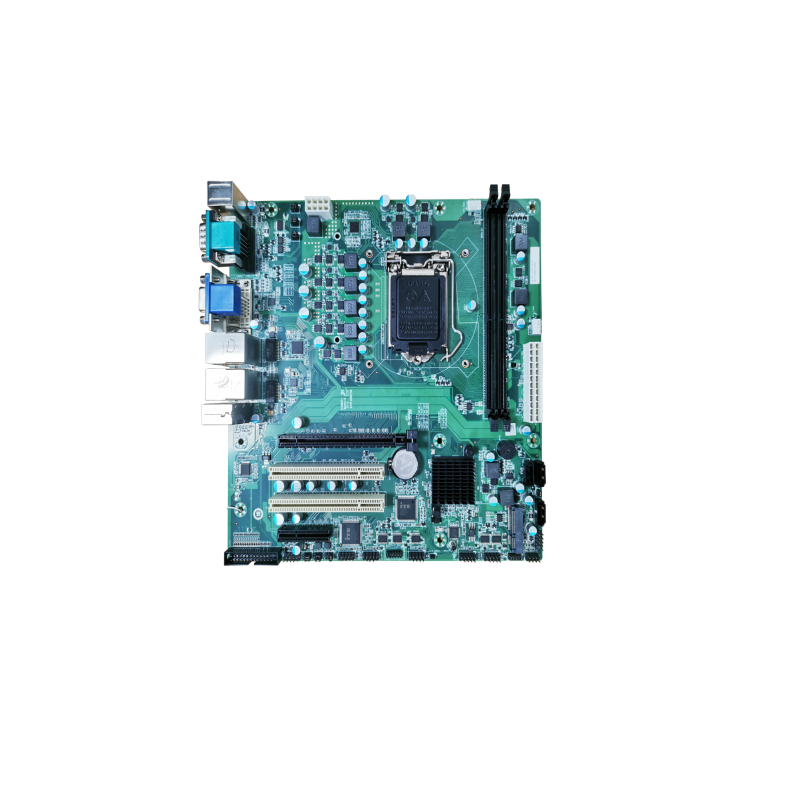

Product Appearance：
