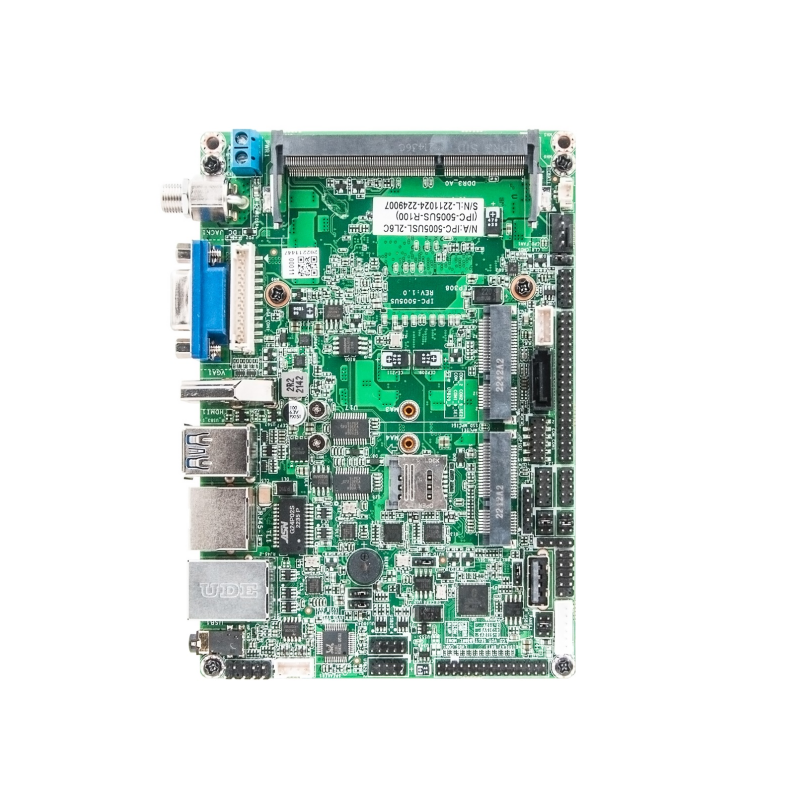

3.5 "Industrial Motherboard With Intel 5 Generation Broadwell Processor：IPC
Model：IPC-5005US
CPU Processor：Intel 5-generation Broadwell processor i3-5005U, 2 cores, 4 threads, TDP15W
Chipset：Intel 5th generation Broadwell PCH
Memory：1*SO-DIMM，DDR3L 1600/1333MHz，Max.16GB
Stroage：1*SATA3.0；1* mSATA（Compatible with miniPCIE signals）
GPU：Intel CPU has a built-in HD Graphics 5500 HD graphics card
Display Interface：VGA、HDMI、LVDS/eDP（Alternative）
Power Supply：DC+2*PIN 12V-24V wide voltage
OS：Windows 7/8/8.1/10/11；Linux
Product Characteristics：
*Support Intel 5-generation Broadwell processor i3-5005U, 2 cores, 4 threads, TDP 15W

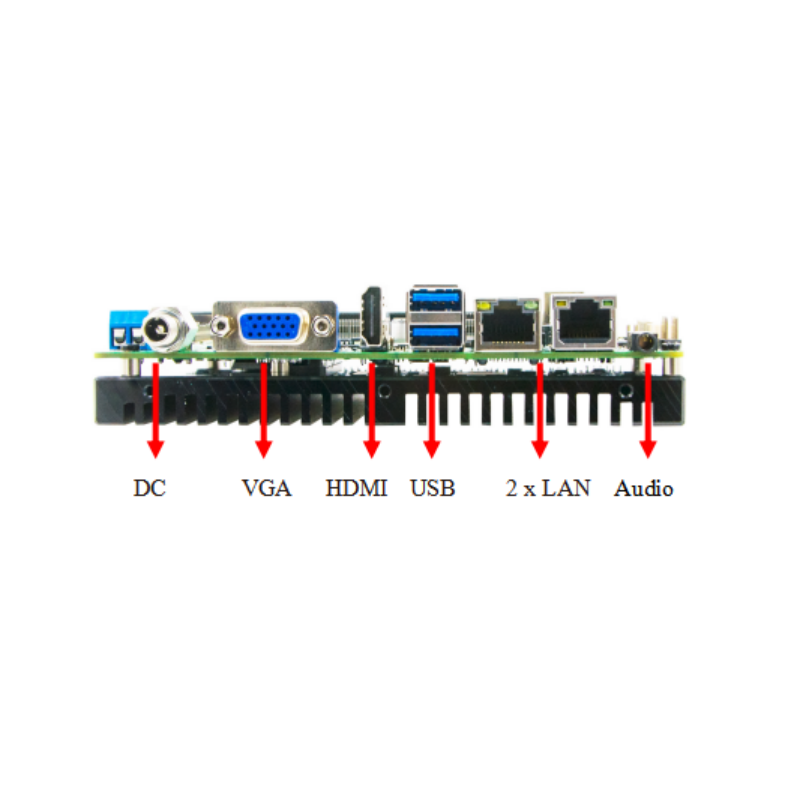

*On-board display interface VGA+HDMI+LVDS/eDP (one of two)
*Integrated HD Graphics 5500 graphics card, HD display
*Integrated ALC897+LTK5208 power amplifier chip (support 2x3W speaker)
*Built-in 1*miniPCIe/1*SIM expansion slot, support 3G/4G or Wifi+BT
*Built-in 1*mSATA, 1*SATA3.0
*Support 2*USB 3.0, 8*USB 2.0 (1*USB2.0 Type A upright interface)
*Support 6*COM (COM1/2 support 232/422/485, 9th pin RI/5V/12V adjustable)
*DC + 2*PIN support 12V-24V wide voltage; Terminal power input
*Support WatchDog; CPU integrated TPM2.0

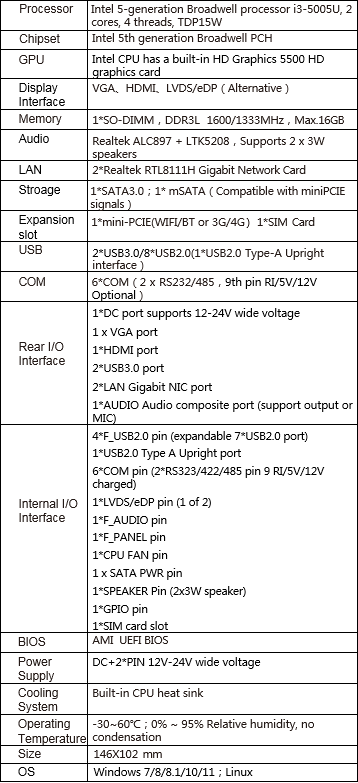

Product Specification：
*Product specifications are subject to change without prior notice
