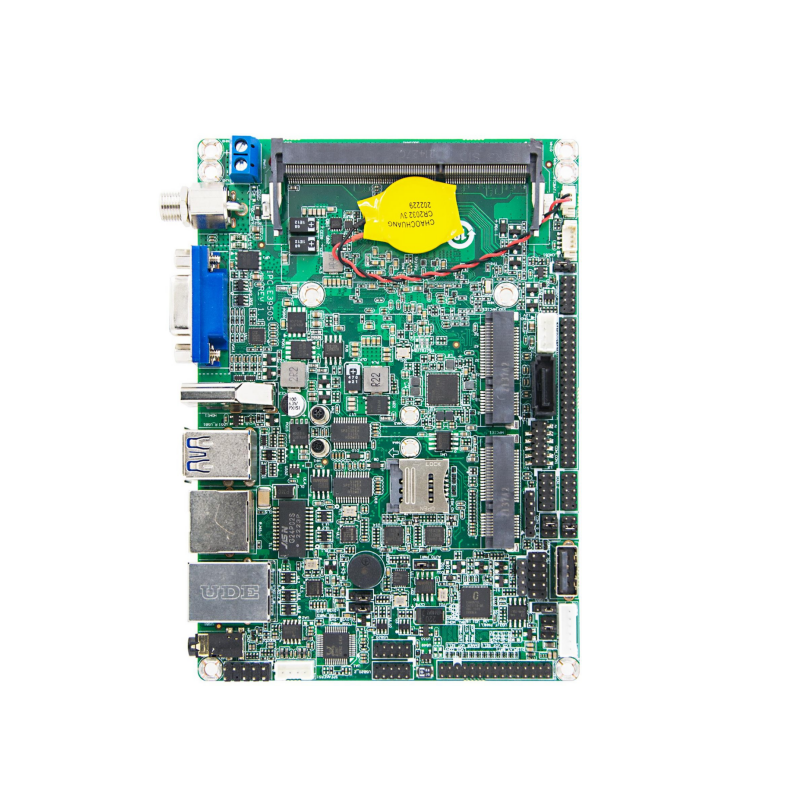

3.5 "Motherboard With Apollo Lake Processor：IPC-E3950S
Model：IPC-E3950S
CPU Processor：Apollo Lake processor Atom x7-E3950/4 core 4 threads
Chipset：Intel Apollo Lake
Memory：1*SO-DIMM，DDR3L 1333MHz，Max.8GB
Stroage：1*SATA2.0 1* mSATA
Network：2*Realtek RTL8111H Gigabit Network Card
Display Interface：VGA、HDMI、LVDS/eDP（Alternative）
Power Supply：DC+2*PIN 12V-24V wide voltage
OS：Windows 7/8/8.1/10/11；Linux
Product Characteristics：
*Support Apollo Lake processor, Atom® x7-E3950 4 core 4 threads

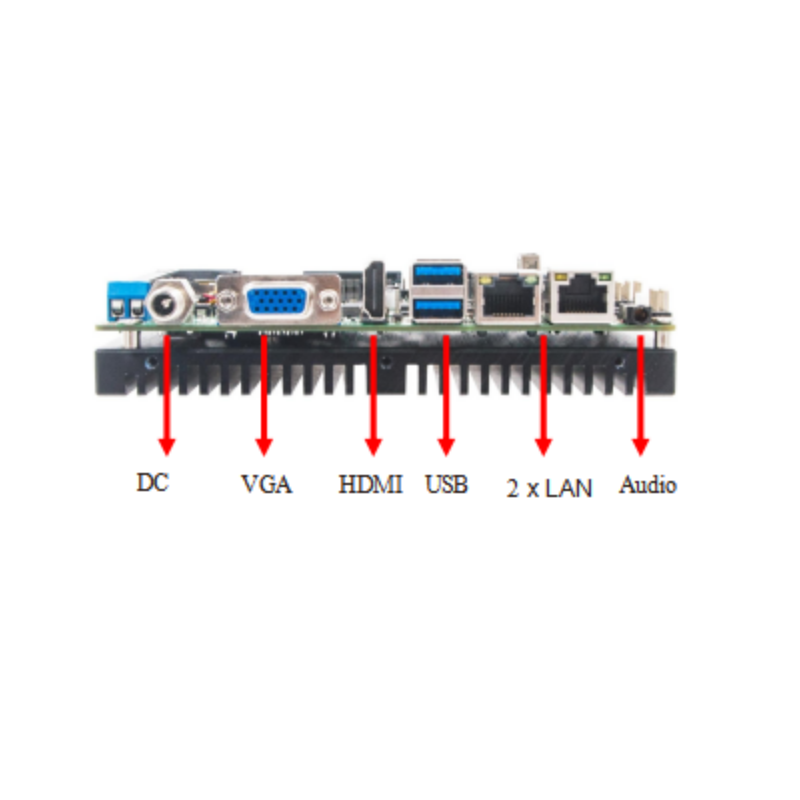

*On-board display interface VGA+HDMI+LVDS/eDP (one of two)
*Built-in HD graphics card, HD display
*Integrated ALC897+LTK5208 power amplifier chip (support 2x3W speaker)
*Built-in 1*miniPCIe/1*SIM expansion slot, support 3G/4G or Wifi+BT
*Built-in 1*mSATA, 1*SATA3.0
*Support 2*USB 3.0, 8*USB 2.0 (1*USB2.0 Type A upright interface)
* Support 6*COM (COM1/2 support 232/422/485, 9th pin RI/5V/12V adjustable)
* DC + 2*PIN supports 12V-24V wide voltage; Terminal power input
* Support WatchDog

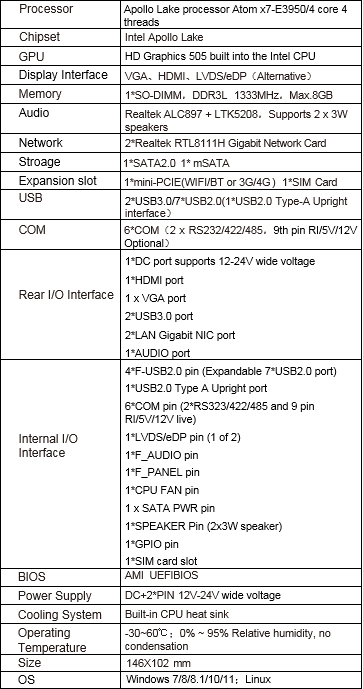

Product Specification：
*Product specifications are subject to change without prior notice
