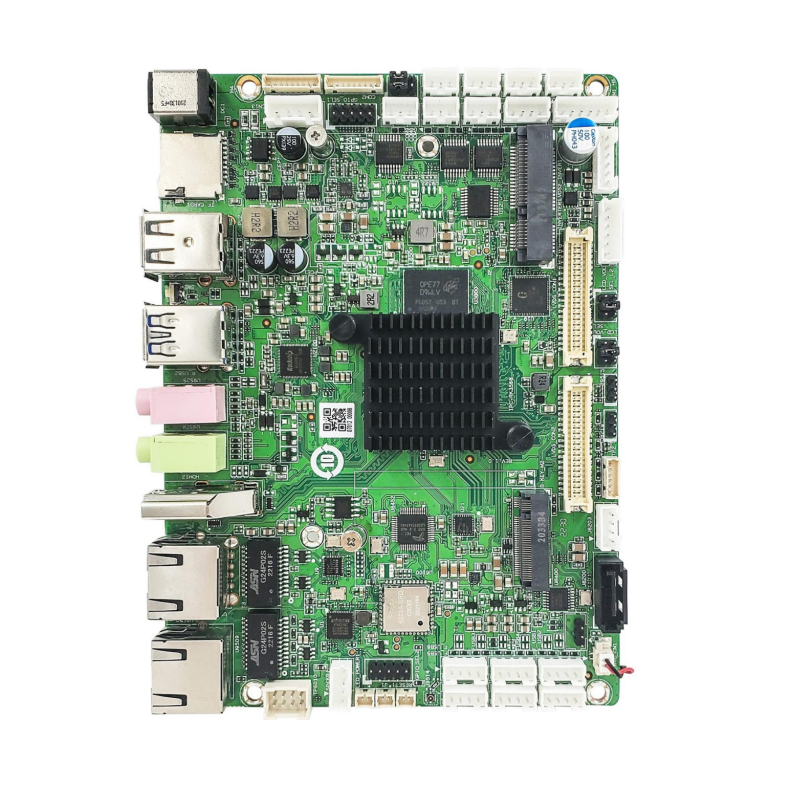

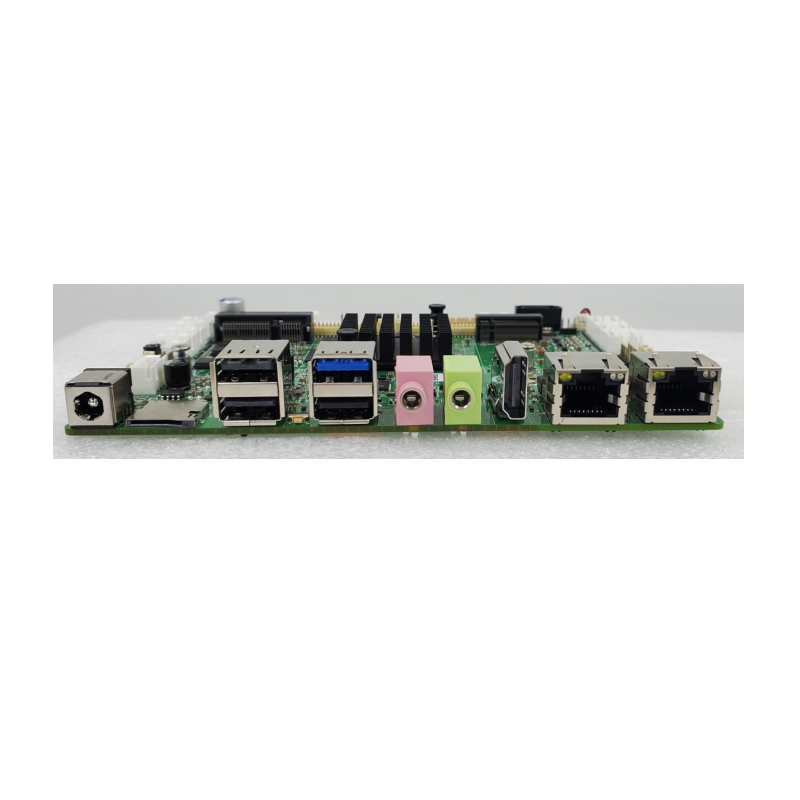

3.5 "Industrial Motherboard With RK3568 Processor：IPC-RK3568
Model：IPC-RK3568
CPU Type：RK3568 4*Cortex A55, Neon/FPU 最大频率1.8GHz
Motherboard Szize：146mm*102mm
Memory：8G LPDDR4（2/4G Optional）
Stroage：64G eMMC（32/64 Optional）；Supports 1*SATA3.0 Interface and M.2 SSD. Support TF card expansion
GPU：Mali-G52-2EE
Display Interface：1*HDMI, Max. 4K 60Hz,Support HDMI, eDP, LVDS Three Display
Power：DC-IN，12V
Operating System：Android 10/11
Product Characteristics：
*Rockchips RK3568 4-core high-performance processor
*Support HDMI, eDP, LVDS display interface, support 4K playback
*Supports dual screen display and dual screen display
*Support dual network, WIFI, 4G network connection
*6*UART interfaces (2x compatible with RS232/485; 1xRS232 with flow control)
*10*USB ports
*Support encryption security chip (optional)
*Support TF card expansion

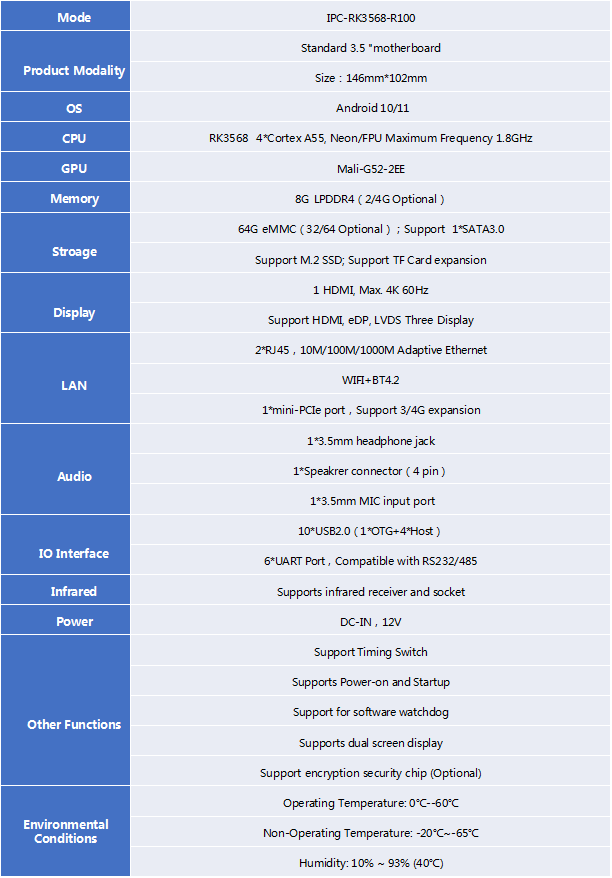

Product Specification：
*Product specifications are subject to change without prior notice
