Mini-ITX Motherboard With Intel® Coffee Lake/Comet Lake-U Processors：T7CC81U
Model：T7CC81U
CPU Type：Intel® Coffee Lake/Comet Lake -U CPU
Motherboard Size：170mm × 170mm
Memory：Available in 2 * SO-DIMM DDR4 with a maximum support of 64GB
Stroage：1*SATA 3.0 1*Mini-PCIe (mSATA)
Network：2 x 10/100/1000Mbps Realtek® network interface (LAN2 and USB2.0 colay design, function choice)
Display Interface：1 x VGA: Maximum resolution 1920 x 1200@60Hz 1*LVDS/eDP: LVDS, maximum resolution 1920*1200@60Hz eDP, maximum resolution 4096x2304@60Hz eDP/LVDS colay design, one of two functions 1*HDMI 1.4:3840 *2160@30Hz with COM1 DB9 colay design (ch
Power Supply：DC 12V IN
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Supports Intel® Coffee Lake/Comet Lake-U CPU
* Support 2*USB3.0 6*USB2.0
* Support 2 x 10/100/1000Mbps network interface
* Support 1*VGA, 1*HDMI 1*LVDS&eDP support three displays on the same screen

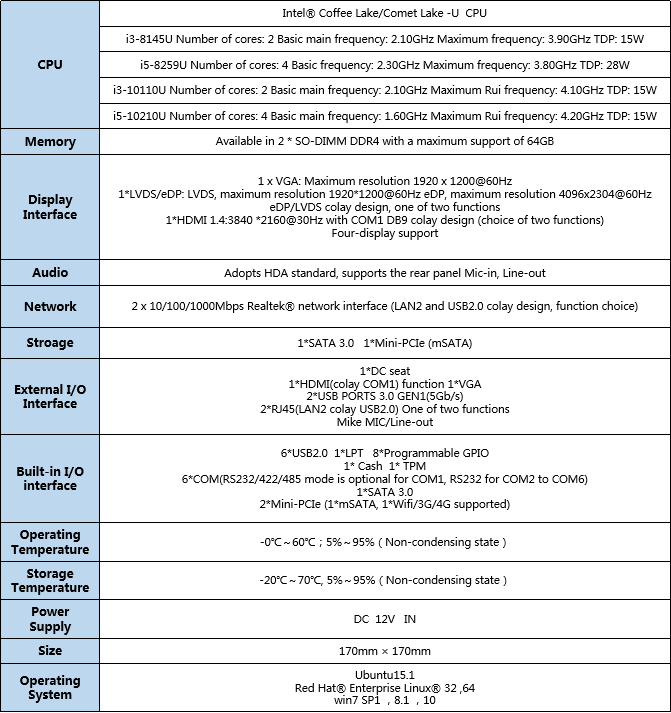

Product Specification：
*Product specifications are subject to change without prior notice

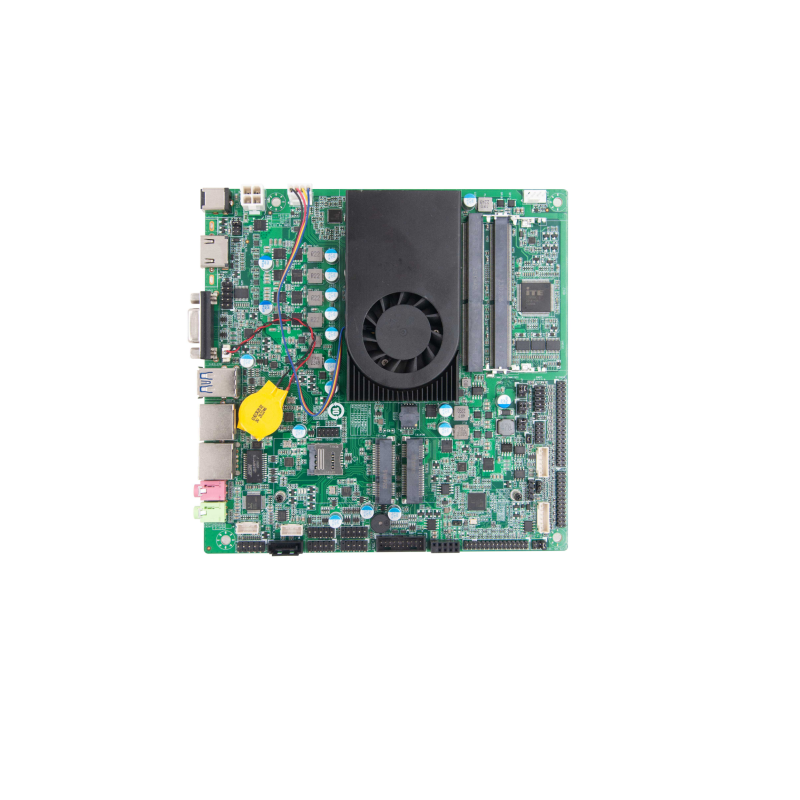

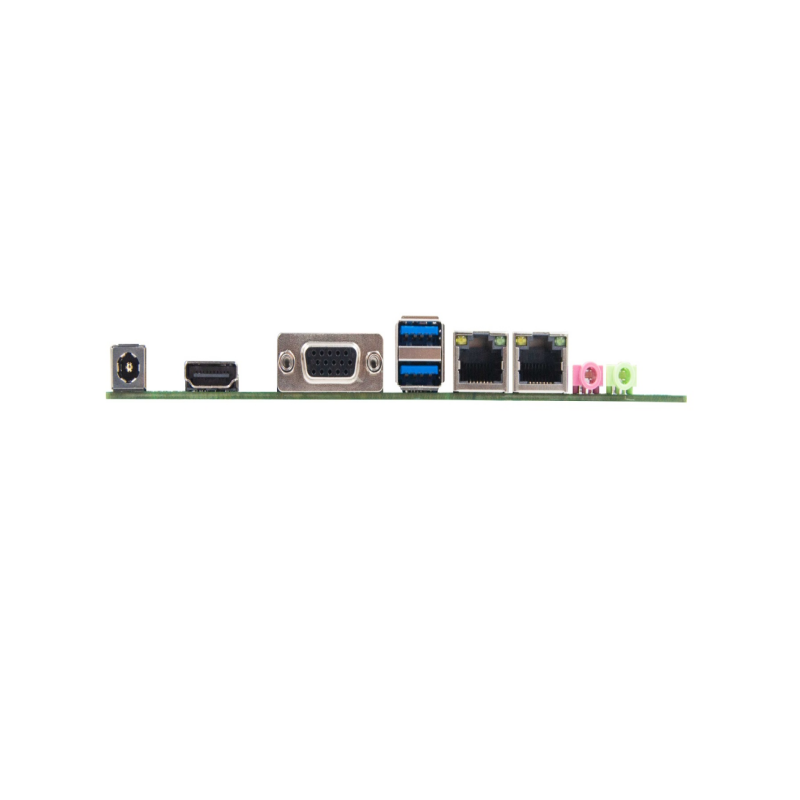

Product Appearanc：
