Mini-ITX Motherboard With Intel® Celeron® J6412 Processor：T7EH64
Model：T7EH64
CPU Type：Intel® Celeron® J6412, Quad-core, clock speed 2.00 GHz, up to 2.60GHz, TDP 10W
Chipset：Intel J6412
Memory：1 x DDR4-2666/2933/3200MHz memory slot (Non-ECC), supports up to 32GB
Stroage：1 * SATA3.0 + 1 * M.2 (NGFF) Key-M(PCIE 2X NVMe )
Network: 2 x 10/100 Mbpss network interface (RJ45,RTL8111H)
Display Interface：1×HDMI1 (TYPE-A) (Max resolution: 4096x2160@30Hz) 1 x LVDS (Header) (Maximum resolution: 1920x1200@60Hz (dual-pass colay edp1) 1×eDP2 1*HDMI2 (with COM1, DB9 colay) (Max resolution: 4096*2160@60Hz)
Power Supply：1 ×DC 12V ； 1× 4PIN(Socket)
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Support Intel® Celeron® J6412, Quad-core, clock speed 2.00GHz, up to 2.60GHz, TDP 10W
* 6× USB 2.0\4 USB 3.0 available
* Support HDMI/LVDS/EDP, single display double display three display replication
* Realtek network chip

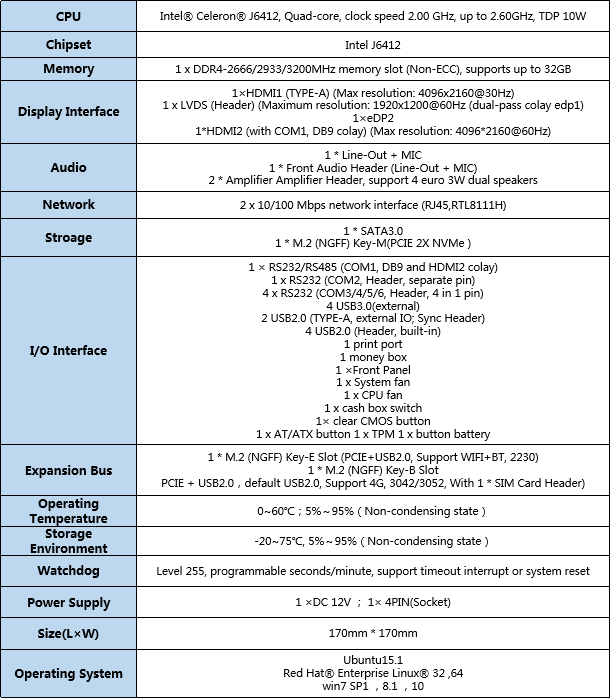

Product Specification：
*Product specifications are subject to change without prior notice

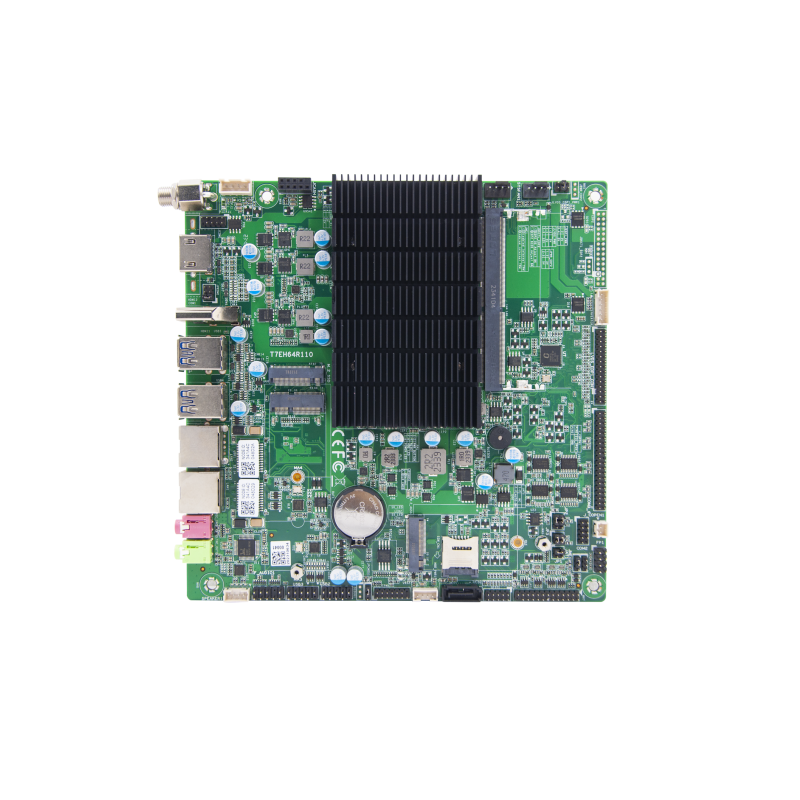

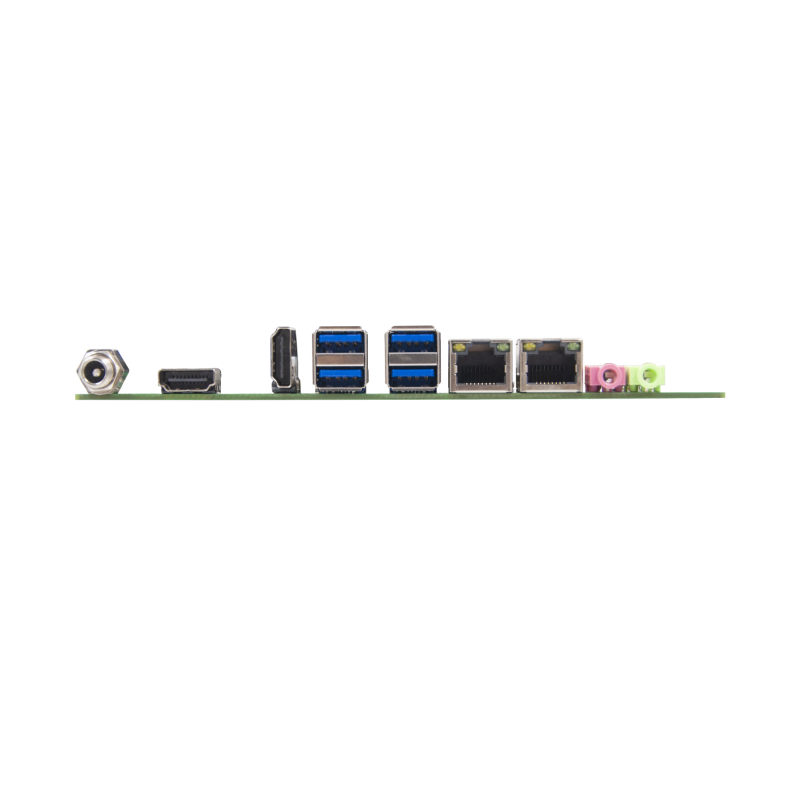

Product Appearance：
