Mini-ITX Motherboard With Intel® Tiger Lake Platform Processor：T7TGL11U
Model：T7TGL11U
CPU Type：Intel® Tiger Lake Core TM (Premium-U) i3/i5/i7，Celeron® (Base-U)
Motherboard Size：170mm *170mm
Memory：Support DDR4 3200 MHz, SO-DIMM Slot, Dual-channel Up to 64GB
Stroage：1 * SATA3.0 7P Connector (with 1 * SATA Power Header) 1 * M.2 (NGFF) Key-M Slot (PCIe x4 NVMe SSD, 2280) Support PCIe x4 Gen4 NVMe SSD（Celeron,Gen3) 1 * M.2 (NGFF) Key-B Slot, Support SATA
Network：2 * Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)--RTL8111H In which LAN1 is colay double-layer USB2.0TYPE-A,Default LAN2
Display Interface：1 * HDMI1 1.4 (TYPE-A): max resolution up to 4096x2160@30Hz 1 * LVDS (Header): LVDS max resolution up to 1920x1080@60Hz（Dual-channel colay edp1，Default LVDS) 1 * eDP2 1*HDMI2 1.4（与COM1 DB9 colay，Default HDMI2） (Header): eDP max resolu
Power Supply：1 * DC 12V Power Input Φ2.5mm Jack--colay 1 * 4PIN
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Support Intel® tiger lake Core TM (Premium-U) i3/i5/i7 CPU
* 6 USB 2.0\4 USB 3.0 available
* Support HDMI/LVDS/EDP, single display double display three display replication
* Realtek network chip

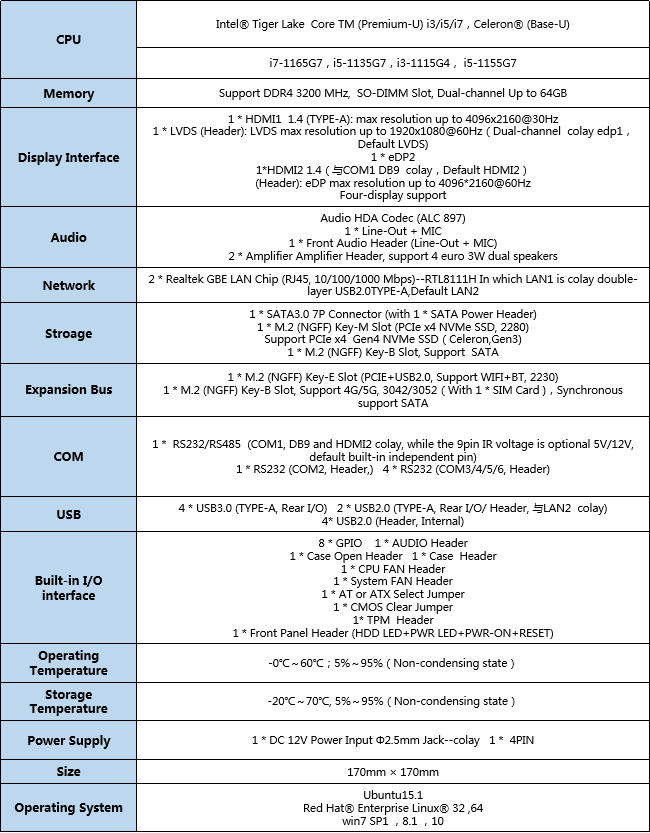

Product Specification：
*Product specifications are subject to change without prior notice

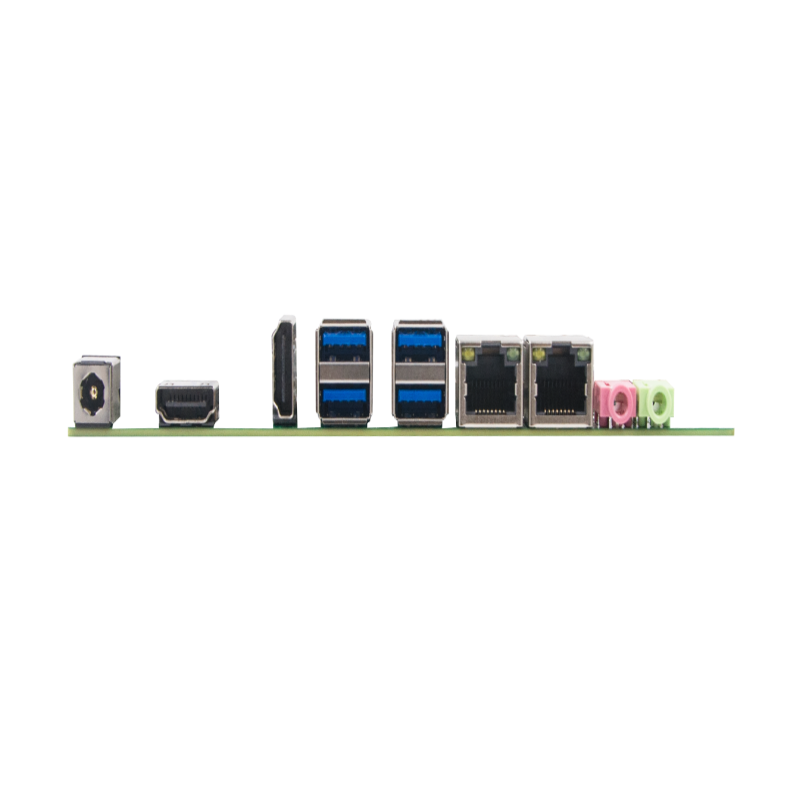

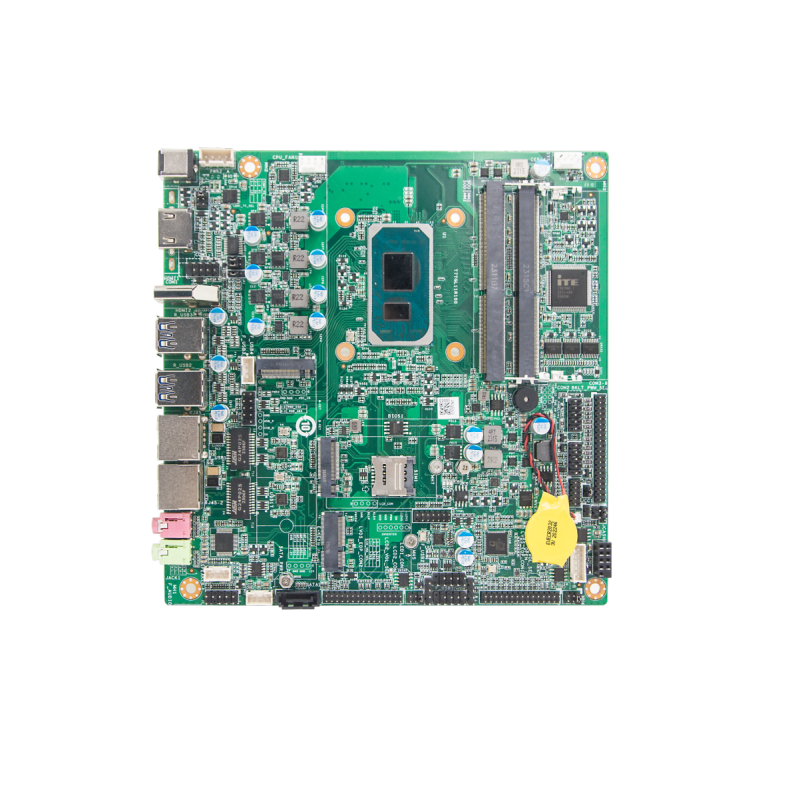

Product Appearance：
