ATX Motherboard With Intel B365 Series Chipset：IOT0-B365
Model：IOT0-B365
CPU Type：Intel LGA1151 Gen6/7/8/9th i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel B365
Memory: Can provide 4×288PIN DDR4 2133/2400MHz/2666MHz DIMM slot, single 16GB, support a maximum of 64GB (support 6, 7, 8, 9 generation CPU, support 2 DDR, support a maximum of 32G- the default shipment) (support 8, 9 generation CPU, Can be through the BI
Storage: 5 x SATA interface (supports SATA3.0 standard),1 x M.2(SATA3.0/PCIEx4 nVME) interface (supports M-key 2280,2260,2242)
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DVI,1×VGA,1× HDMI, support independent dual display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Interface: ATX power supply
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Provide on-board encryption scheme (optional), which can realize hardware and software binding or key data storage and encryption
*Adopt Intel network chip to ensure high-speed and stable data transmission

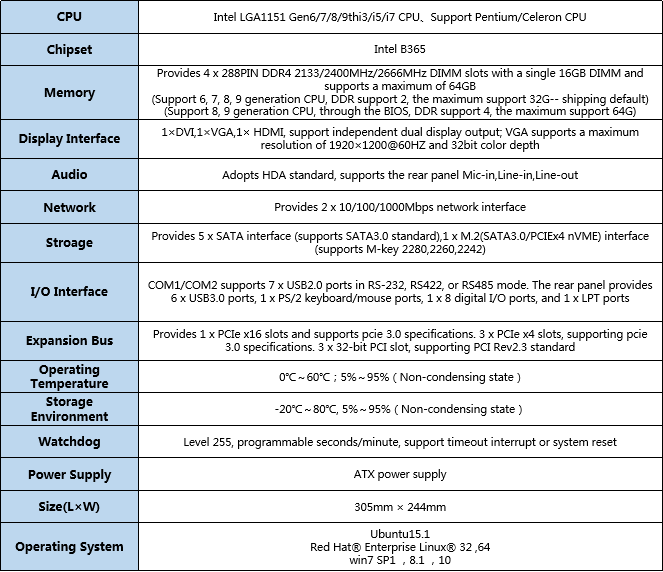

Product Specification：
*Product specifications are subject to change without prior notice

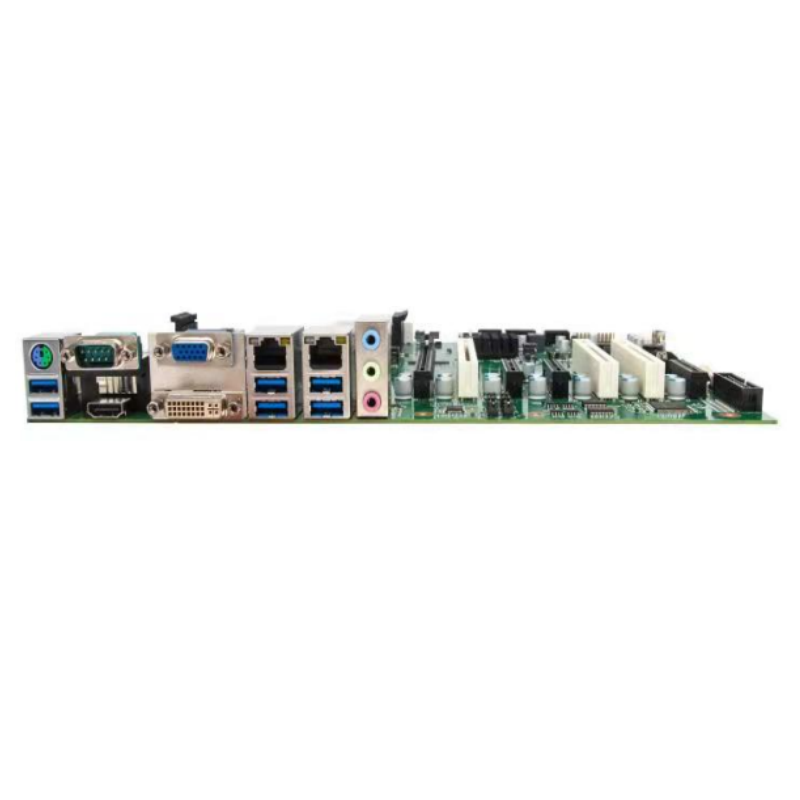

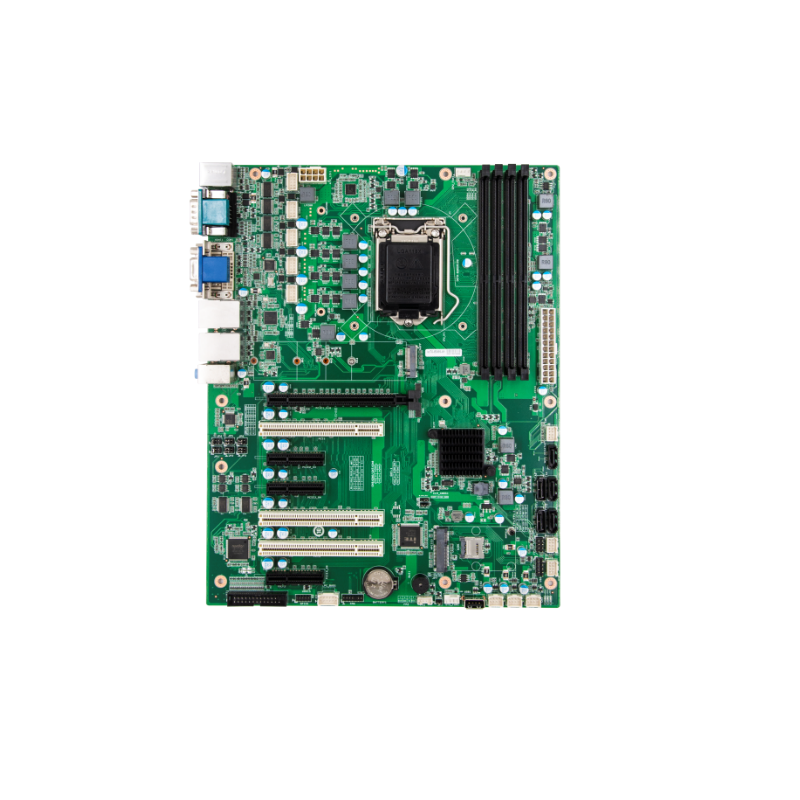

Product Appearance：
