ATX Motherboard With Intel B560 Series Chipset：IOT0-B560
Model：IOT0-B560
CPU Type：10/11 Generation i3/i5/i7/i9/Pentium™/Celeron™ in Intel LGA1200 Package
Chipset：Intel B560
Memory: 4 x 288PIN DDR4 UDIMM slot. Each 32GB DIMM supports a maximum of 128GB
Storage: 1 x M.2 NVMe 2280 SSDS provide 4 x SATA ports (supporting the SATA3.0 standard, three by default, maximum transfer rate of 6Gb/s), 1 x M.2(NVME3.0) ports (supporting M-key 2280,2260,2242)
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DP,1×VGA,1× HDMI, supporting independent dual display output
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 18.04 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Support 10/11 generation i3/i5/i7/i9/Pentium™/Celeron™ in Intel LGA1200 package
* Supports 4 DIMM slots, up to 128G.
* 6×USB 2.0\6×USB 3.0 available
* Support VGA/HDMI/DP, single display double display three display copy, extended display output
* Adopt Intel network chip to ensure high-speed and stable data transmission

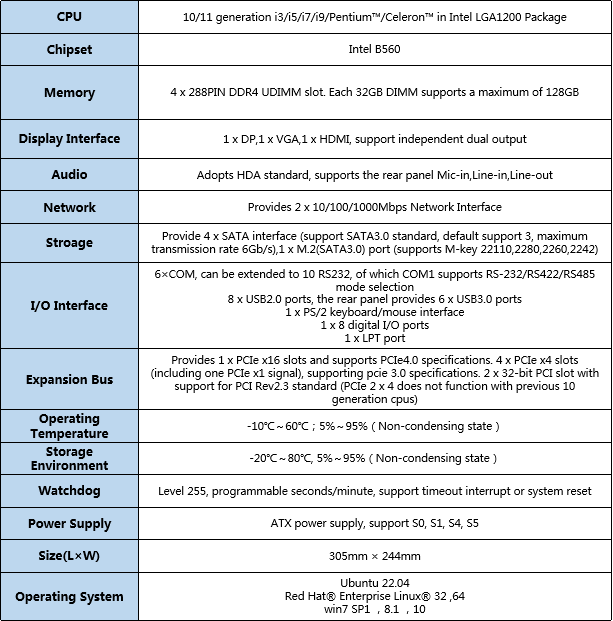

Product Specification：
*Product specifications are subject to change without prior notice

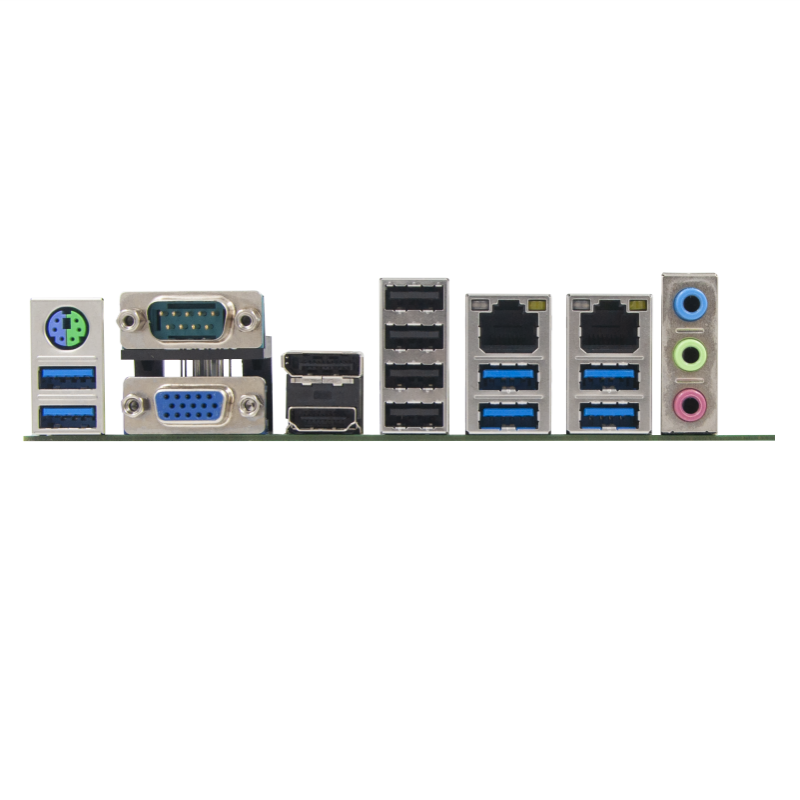

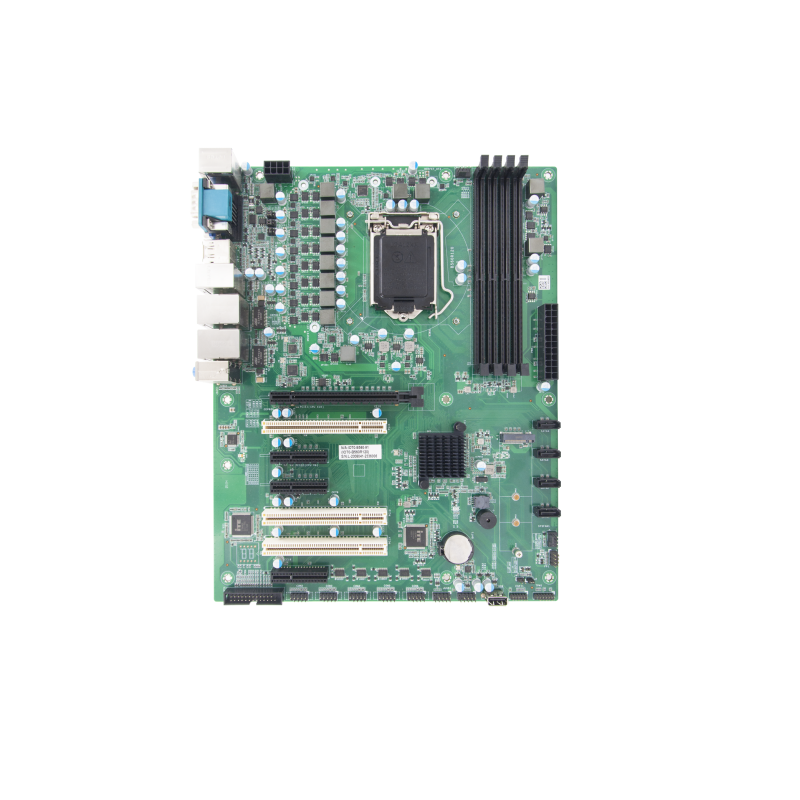

Product Appearance：
