ATX Motherboard With Intel B660 Series Chipset：IOT0-B660
Model：IOT0-B660
CPU Type： Intel® 12/13代 Generation CoreTM i3/i5/i7/i9, Pentium®, Celeron® CPU, LGA1700
Chipset：Intel B660
Memory: 4 x 288PIN DDR4 UDIMM slot (Up to 3200 MT/s, Non-ECC), supports a maximum of 128GB
Storage: 4 x SATA3.0 Rate 600 MB/s (default) +1 x M.2 pcie4.0X4 (pcie &sata adaptive, support 2280/2260/2242)
Network: 1 x 10/100/1000Mbps network interface (LAN1 is intel I219-V and supports network wake up) 1 x 10/100/1000/2500Mbps network interface (LAN2 is intel I225-V3)
Display Interface: CPU integrated display, Intel ® hypercore graphics card 770 1 x DP (Max resolution: 7680 x 4320@60Hz) 1 x VGA (Max resolution: 1920 x 1080@60Hz 1 x HDMI (Max resolution: 3840 x 2160@60Hz) supports independent three-display output, which
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 18.4 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Support Intel LGA1700 package 12/13 generation i3/i5/i7/i9/Pentium™/Celeron™
*Supports 4 DIMM slots, up to 128G
* 7×USB 2.0\6×USB 3.0 available
*Support VGA/HDMI/DP, single display double display three display replication,
Extended display output
* Adopt Intel network chip to ensure high-speed and stable data transmission

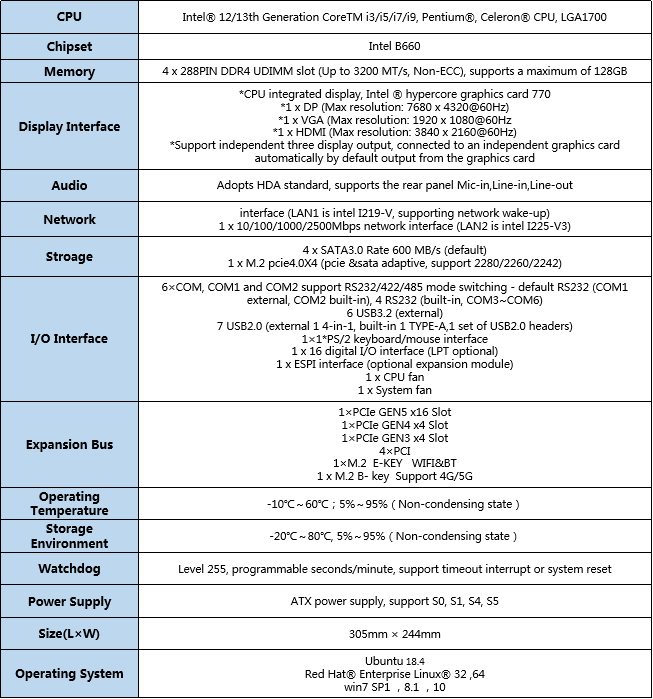

Product Specification：
*Product specifications are subject to change without prior notice

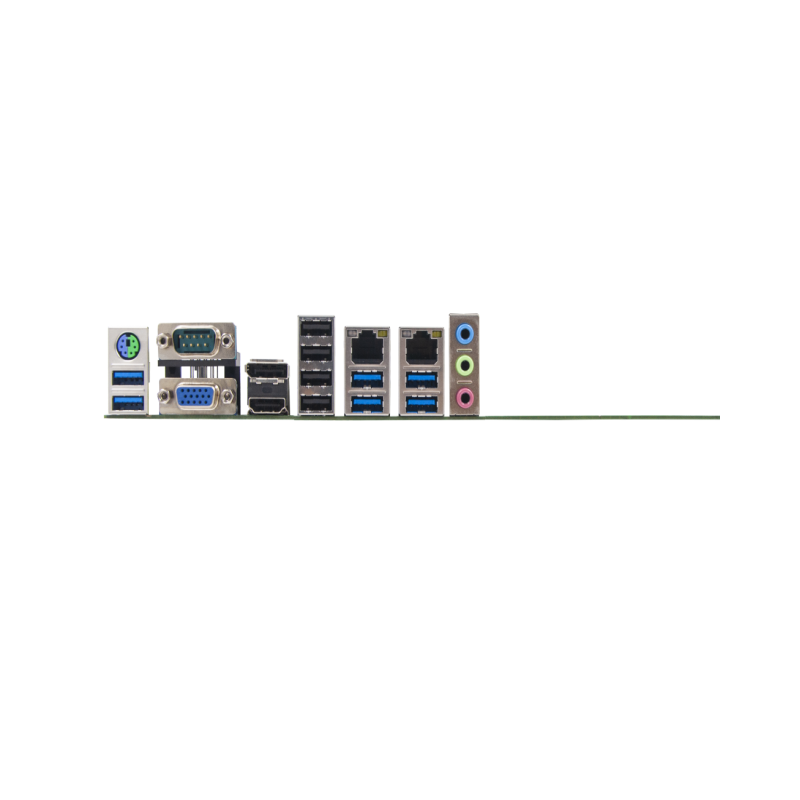

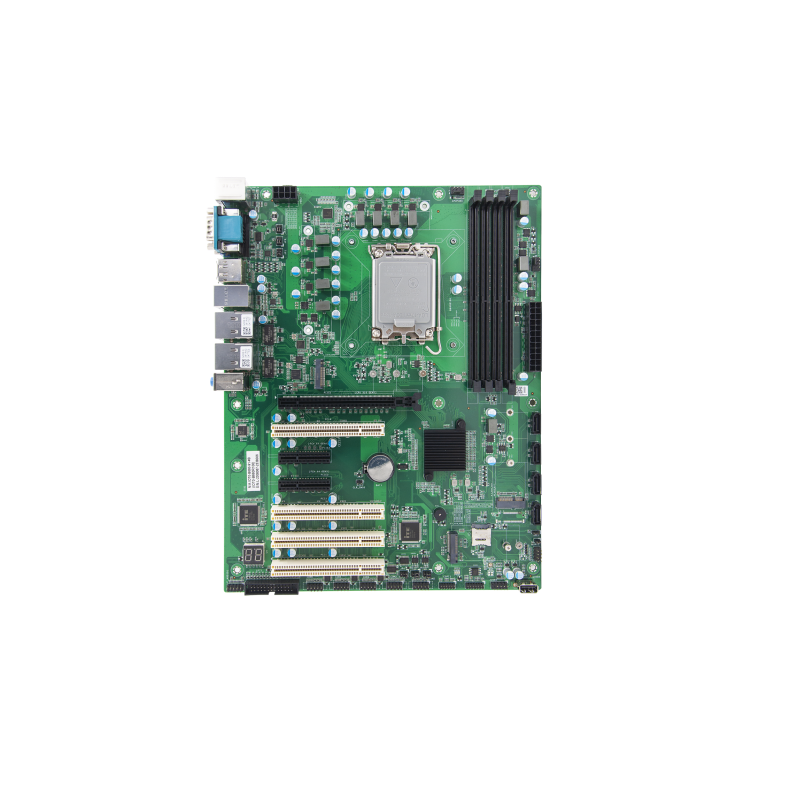

Product Appearance：
