ATX Motherboard With Intel B75 Series Chipset：IOT0-B751
Model：IOT0-B751
CPU Type：LGA1155 Gen 3 i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel B75
Memory: Up to 4 x 240PIN DDR3 1333/1600MHz DIMM slots are provided, each with 8GB, and the maximum support is 32GB
Storage: 4 x SATA interface (SATA1 supports SATA3.0 standard),1 x mSATA slot
Network: Provides 2 x Intel 10/100/1000Mbps network interface
Display Interface: Support 1×DVI-D,1×VGA, support separate display, dual display copy, dual display extended output; VGA supports a maximum resolution of 2048×1536@75HZ and 32bit color depth, and DVI supports a maximum resolution of 1920×1200@60HZ
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 11.04 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Interface anti-static design, effectively protect the core components of the system, enhance system reliability
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Embedded intelligent system status monitoring technology, easy to system management, fault analysis, early warning and recovery
* Adopt Intel network chip to ensure high-speed and stable data transmission
* B75 chipset, with native PCI bus resources, to ensure PCI bus compatibility

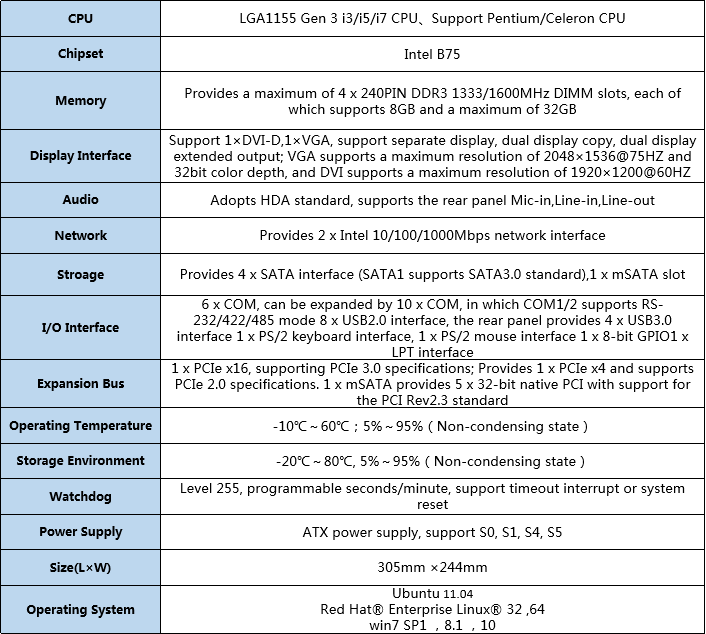

Product Specification：
*Product specifications are subject to change without prior notice

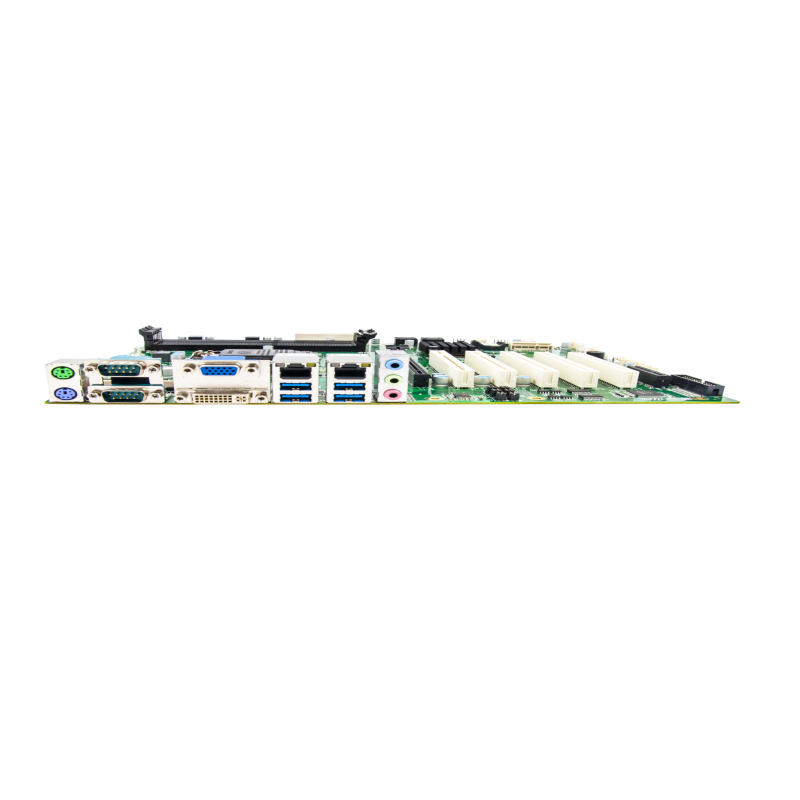

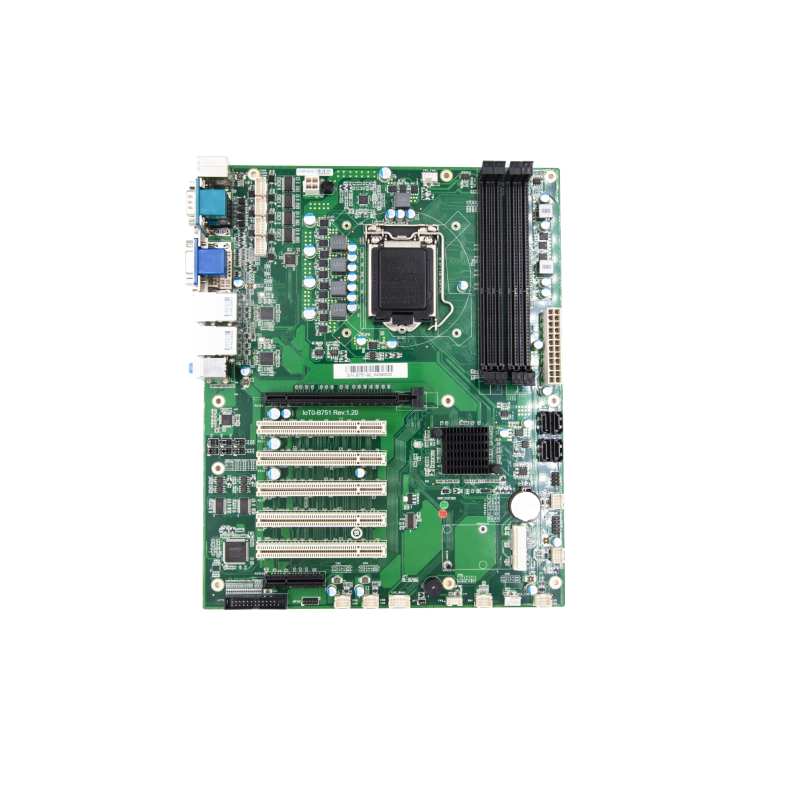

Product Appearance：
