ATX Motherboard With Intel H310C Series Chipset：IOT0-H310C（3 PCI）
Model：IOT0-H310C（3 PCI）
CPU Type： Intel LGA1151 Gen6/7/8/9thi3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel H310C
Memory: Provides 2 x 288PIN DDR4 2133/2400MHz/2666MHz DIMM slots, each 32GB, the maximum support 64GB, 2400MHz requires intel 7th generation kabylake CPU support, 2666MHz requires 8/9 generation coffeelake CPU support
Storage: 1×M.2(SATA3.0) interface (supports M-key 22110,2280,2260,2242)
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DVI,1×VGA,1× HDMI, support independent dual display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 15.1 Red Hat® Enterprise Linux® 32 ,64 Win7/10/11
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
*Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Provide on-board encryption scheme (optional), which can realize hardware and software binding or key data storage and encryption
* Adopt Intel network chip to ensure high-speed and stable data transmissio

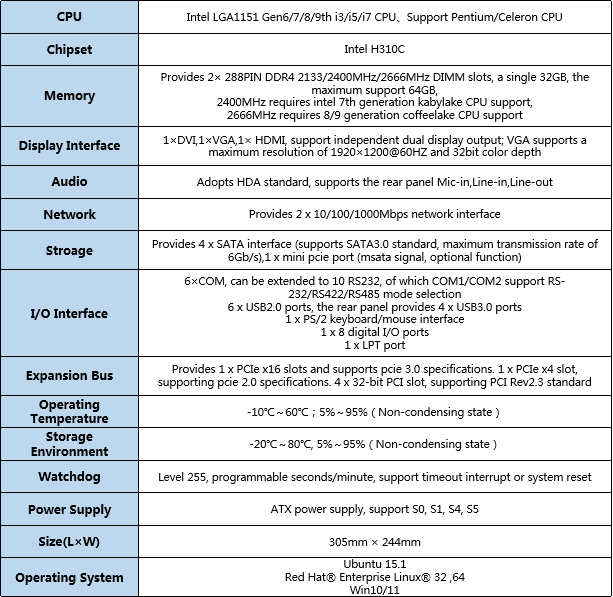

Product Specification：
*Product specifications are subject to change without prior notice

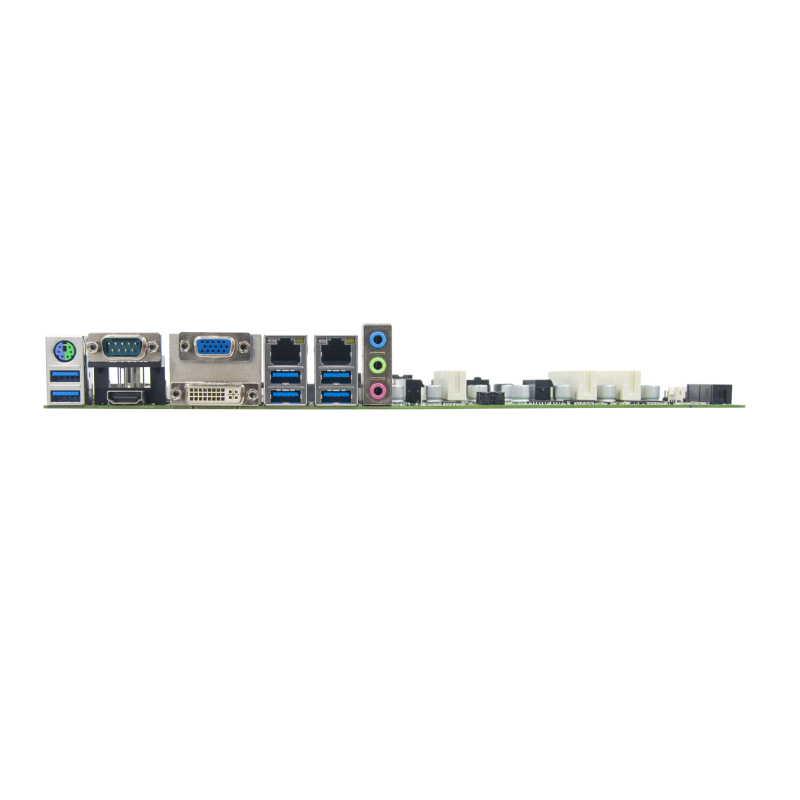

Product Appearance：
