ATX Motherboard With Intel H310C Series Chipset：IOT0-H310C（4 PCI）
Model：IOT0-H310C（4 PCI）
CPU Type： Intel LGA1151 Gen6/7/8/9th i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel H310C
Memory: Provides 2 x 288PIN DDR4 2133/2400MHz/2666MHz DIMM slots, each 32GB, the maximum support 64GB, 2400MHz requires intel 7th generation kabylake CPU support, 2666MHz requires 8/9 generation coffeelake CPU support
Storage: 1 x M.2 NVMe 2280 SSD with 4 x SATA port (support for SATA3.0 standard, maximum transfer rate of 6Gb/s), 1 x mini pcie port (msata signal, optional function)
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DVI,1×VGA,1× HDMI, support independent dual display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 15.1 Red Hat® Enterprise Linux® 32 ,64 Win10/11
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Provide on-board encryption scheme (optional), which can realize hardware and software binding or key data storage And encryption
* Adopt Intel network chip to ensure high-speed and stable data transmission

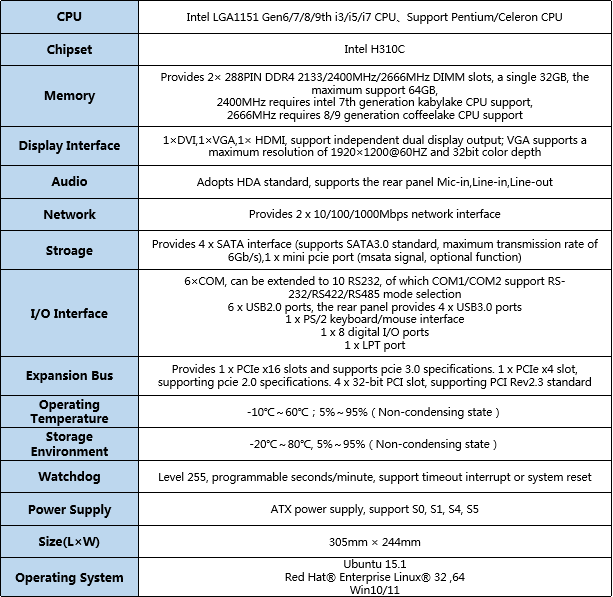

Product Specification：
*Product specifications are subject to change without prior notice

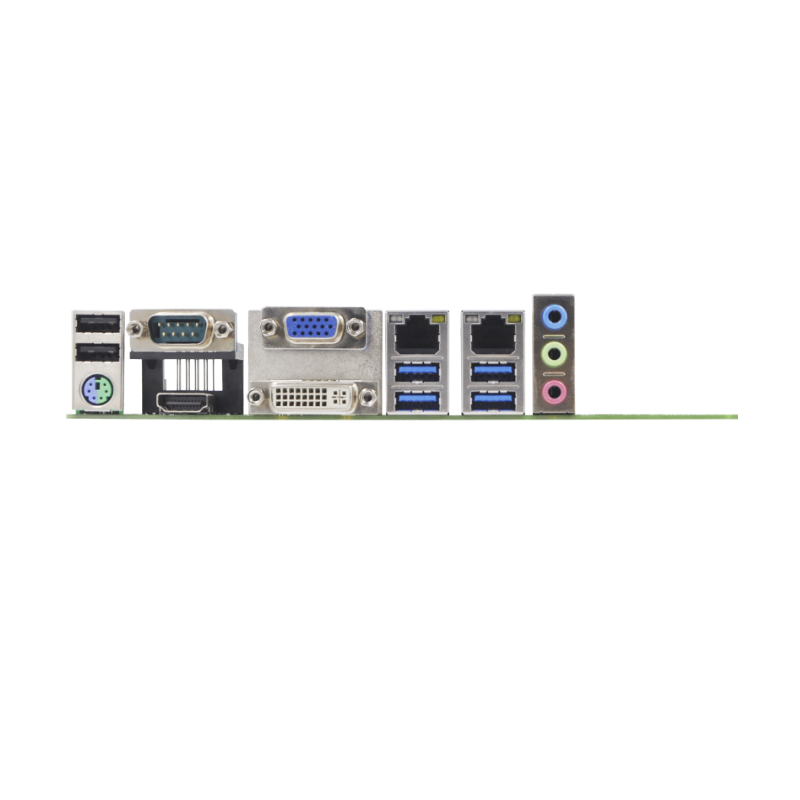

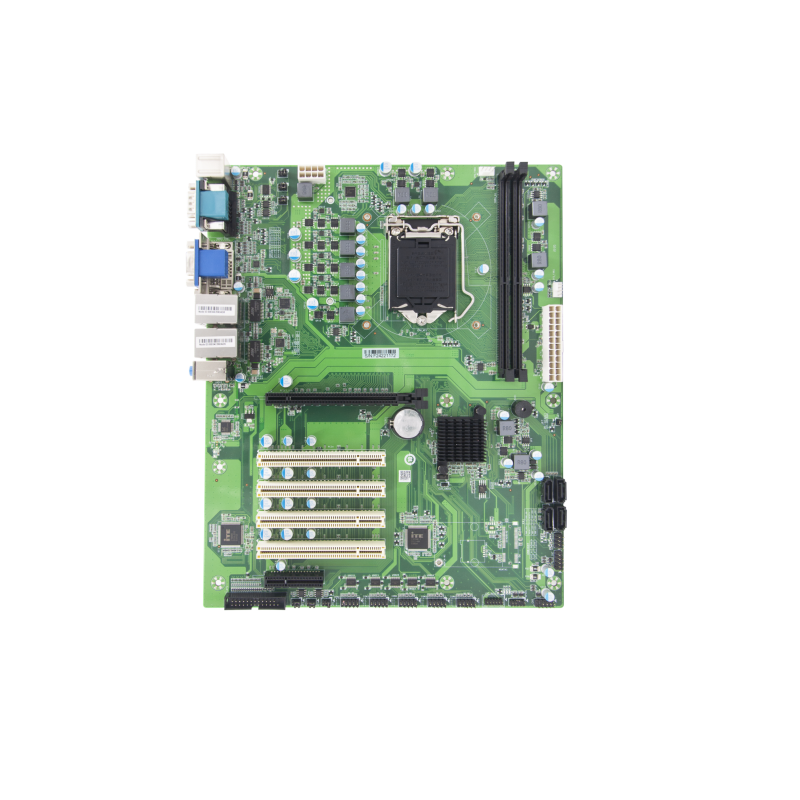

Product Appearance：
