ATX Motherboard With Intel Q670 Series Chipset：IOT0-Q670-92
Model：IOT0-Q670-92
CPU Type：Intel® 12/13/14th Generation CoreTM i3/i5/i7/i9, Pentium®, Celeron® CPU, LGA1700
Chipset：Intel Q670/W680
Memory：4 x 288PIN DDR5 UDIMM slot, Up to DDR5 5600 MT/s, up to 128GB (W680 supports ECC)
Stroage：4×SATA3.0 RAID 0, 1, 5, 10(Support） 1×M.2 (Key-M, 2242/2260/2280, PCIe x4 Gen4 NVMe/ SATA SSD)
Network：2 x 10/100/1000Mbps Network Interface (Intel i225&226+i219-V)
Display Interface：Intel® UHD Graphics 770(Based on actual CPU) 1×DP,max=7680 x 4320 @ 60Hz 1 x VGA, max=71920x 1200@60Hz 1 x HDMI, max=73840 x 2160@60Hz Support independent three display output
Power Supply：ATX power supply, support S0, S1, S4, S5
Operating System：Ubuntu 20.24 Red Hat® Enterprise Linux® 32 ,64 Win10/11
Product Characteristics：
*Support Intel LGA1700 package 12/13/14 generation i3/i5/i7/i9/Pentium™/Celeron™
* Support 4 DDR5 U-DIMM slots, up to 128G.
* Provide 7 USB 2.0, 6 USB 3.0
* Support VGA/HDMI/DP, single display double display three display copy, extended display output
* Adopt Intel network chip to ensure high-speed and stable data transmission

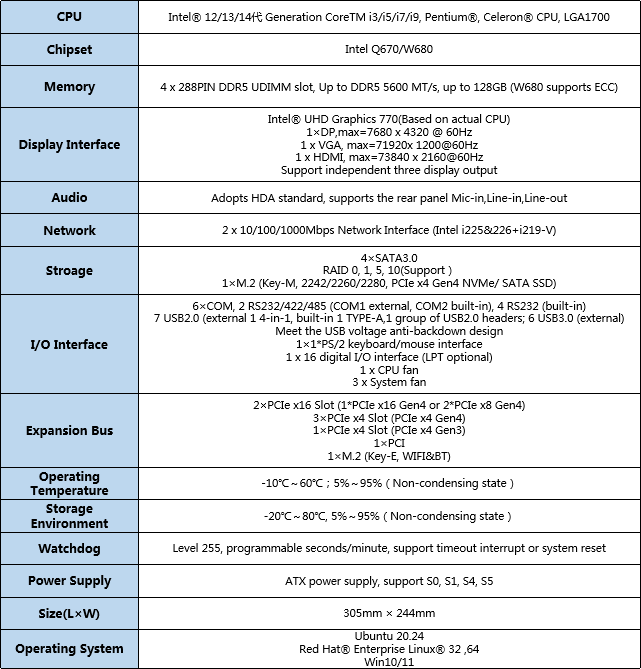

Product Specification：
*Product specifications are subject to change without prior notice

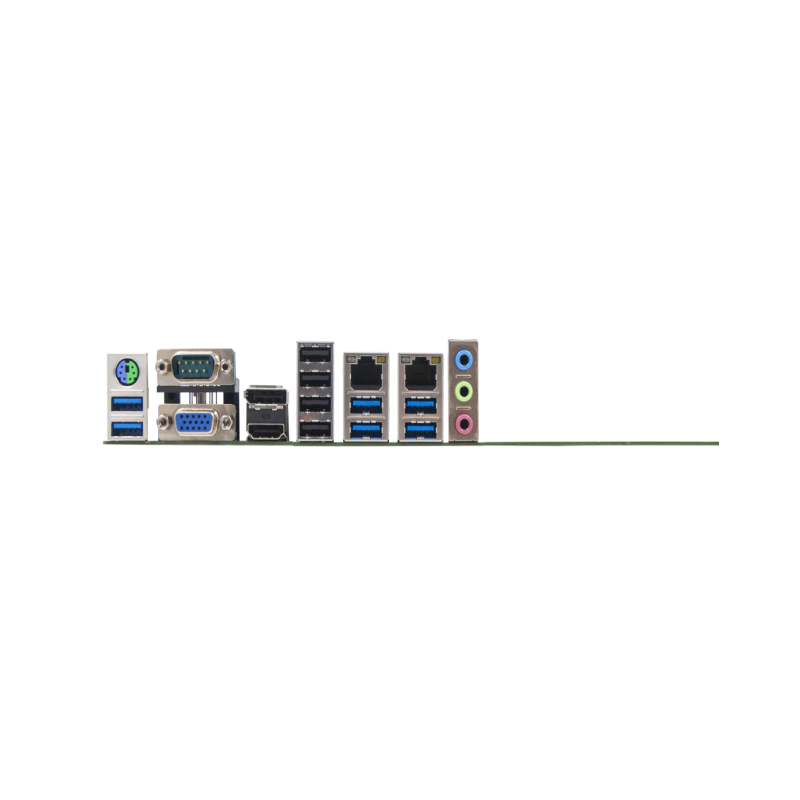

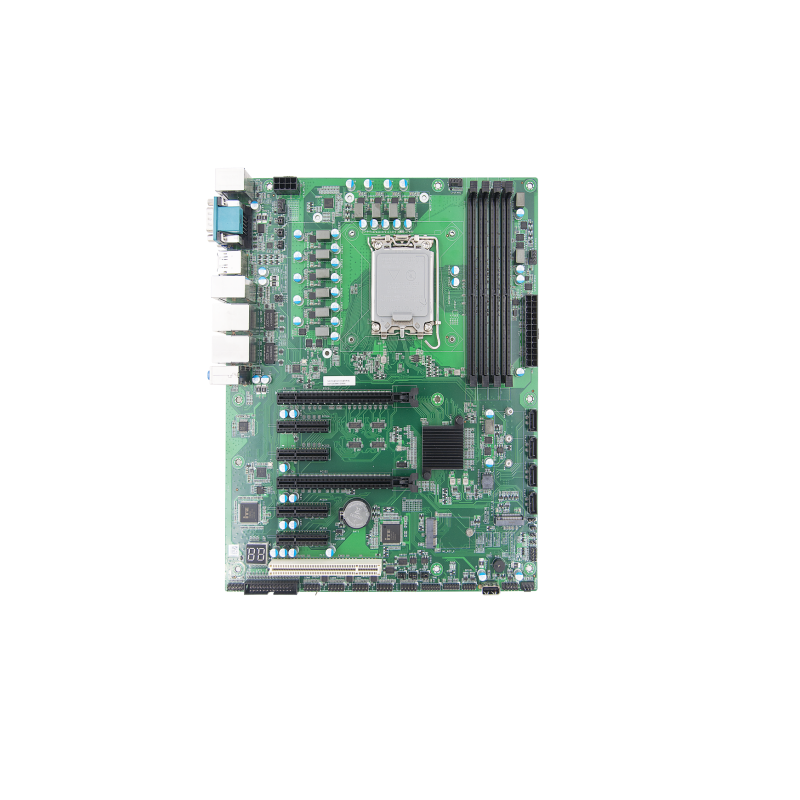

Product Appearance：
