ATX Motherboard With Intel H81 Chipset：IOT0-Q871-92
Model：IOT0-Q871-92
CPU Type： Intel LGA1150 Gen4 i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel H81
Memory: 2 x 240PIN DDR3 1333/1600MHz DIMM slots, each with 8GB, supports a maximum of 16GB
Storage: Provides 3 x SATA ports and 1 x mSATA ports
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DVI-D, 1×VGA, 1×HDMI, support independent dual display, triple display output; VGA supports a maximum resolution of 1920×2000@60HZ and 32bit color depth, and DVI supports a maximum resolution of 1920×1200@60HZ
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 15.1 Red Hat® Enterprise Linux® 32 ,64 Win 7/8.1/10
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Interface anti-static design, effectively protect the core components of the system, enhance system reliability
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Embedded intelligent system status monitoring technology, easy to system management, fault analysis, early warning and recovery
* Adopt Intel network chip to ensure high-speed and stable data transmission
* Optimize the layout of expansion slots to adapt to different industries

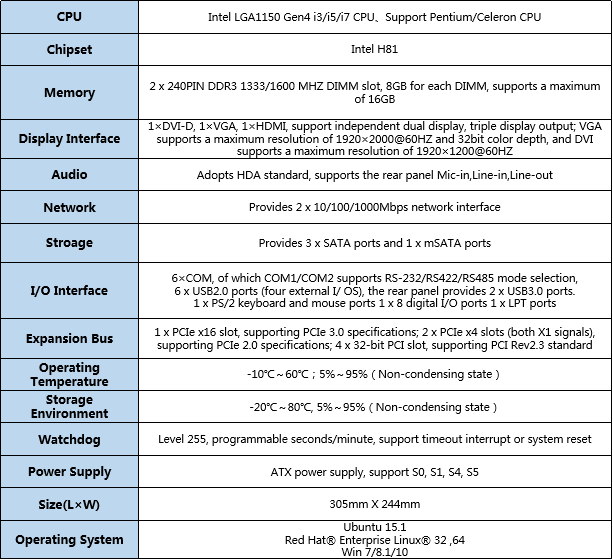

Product Specification：
*Product specifications are subject to change without prior notice

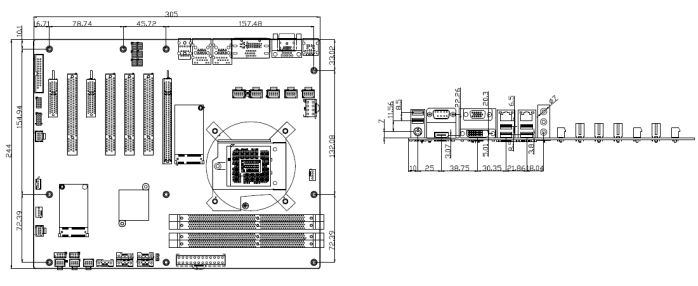

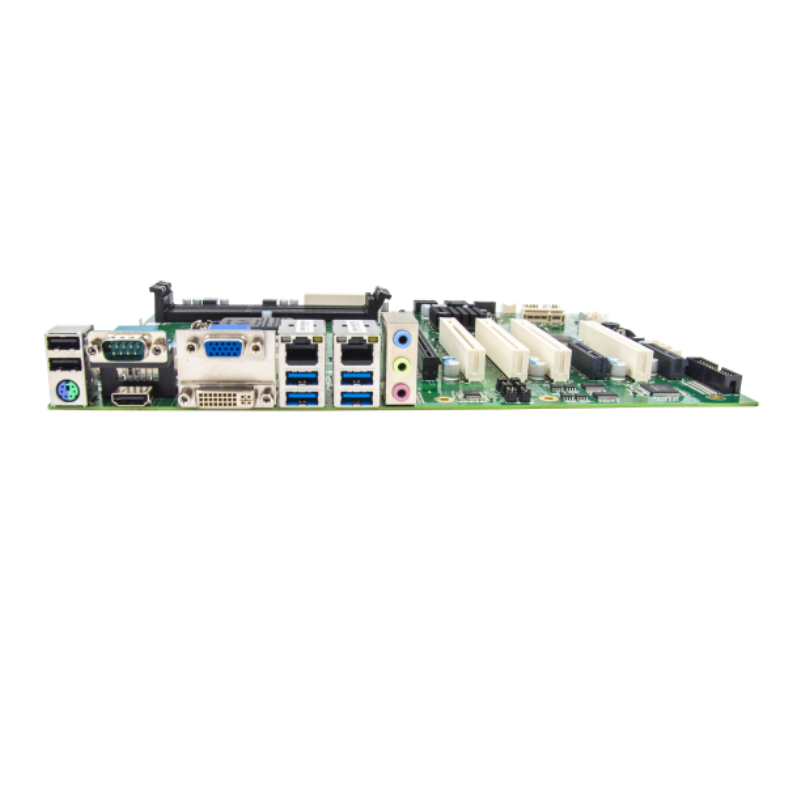

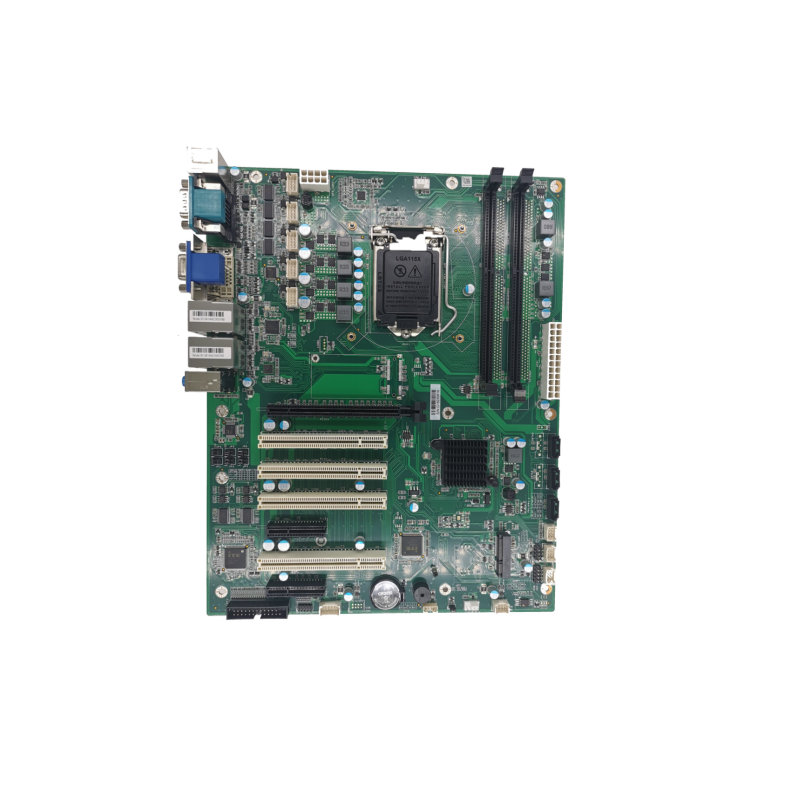

Product Appearance：
