ATX Motherboard With Intel Q170/C236 Series Chipsets：IOT0-Q1701
Model：IOT0-Q1701
CPU Type：Intel LGA1151 Gen6/7i3/i5/i7 CPU、Support Pentium/Celeron CPU/E3 V5 and V6 CPU
Chipset：Intel Q170/C236
Memory: 4 x 288PIN DDR4 2133/2400 MHZ DIMM slot (the C236 supports ECC memory), each 16GB, a maximum of 64GB
Storage: 5 x SATA3.0 ports, supporting Raid 0/1/5/10,1 x M.2 Key M ports (2260/2280)
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DVI,1×VGA,1× HDMI, support independent three display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Interface: ATX power supply, supporting S0, S4, S5
Operating System：Ubuntu 15.1 Red Hat® Enterprise Linux® 32 ,64 Win 7/8.1/10
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Support multi-pcie bus expansion to meet the application of different scenarios
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Provide onboard encryption scheme (optional), which can realize hardware and software binding or key data storage and encryption
* Adopt Intel network chip to ensure high-speed and stable data transmission

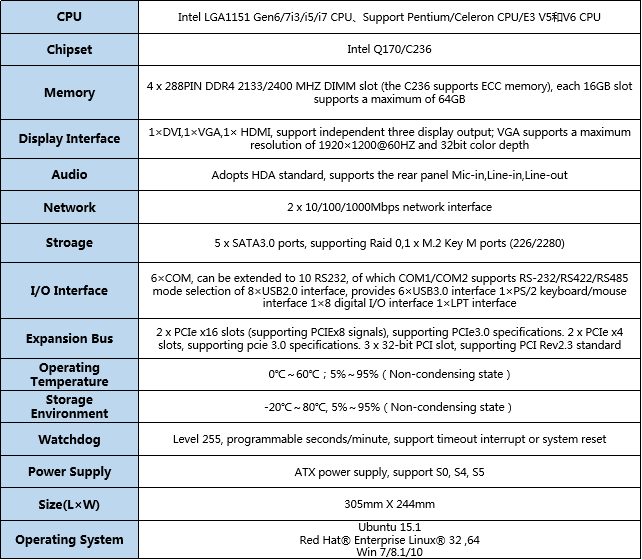

Product Specification：
*Product specifications are subject to change without prior notice
Product Appearance：
