ATX Motherboard With Intel B75 Series Chipset：TB75
Model：TB75
CPU Type：LGA1155 Gen 3 i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel B75
Memory: By default, 2 x 240PIN DDR3 1333/1600MHz DIMM slots are supported. Each DIMM supports 8GB, and a maximum of 16GB is supported
Storage: 4*SATA interface (SATA1 supports SATA3.0 standard),1*mSATA slot
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: Support 1*DVI-D,1*VGA, support separate display, dual display copy, dual display extended output; VGA supports a maximum resolution of 2048*1536@75HZ and 32bit color depth, and DVI supports a maximum resolution of 1920*1200@60HZ
Power Interface: ATX power supply, supporting S0, S4, S5
Operating System：Ubuntu11.04 Red Hat® Enterprise Linux® 32 ,64 Windows XP, 7 SP1 ，8 , 8.1 ，10
Product Characteristics：
* Support Intel LGA1151 Gen6/7/8/9 i3 /i5/i7 CPU, support Pentium/Celeron CPU
*2*DIMM slots, up to 32 GB DDR4 2133/2400MHz UDIMM memory
* Support VGA+DVI+HDMI Independent dual display output
* 4*USB3.0, 6*USB2.0, 6*COM can be extended to 10 COM
* H110 chipset, with native PCI bus resources, to ensure PCI bus compatibility

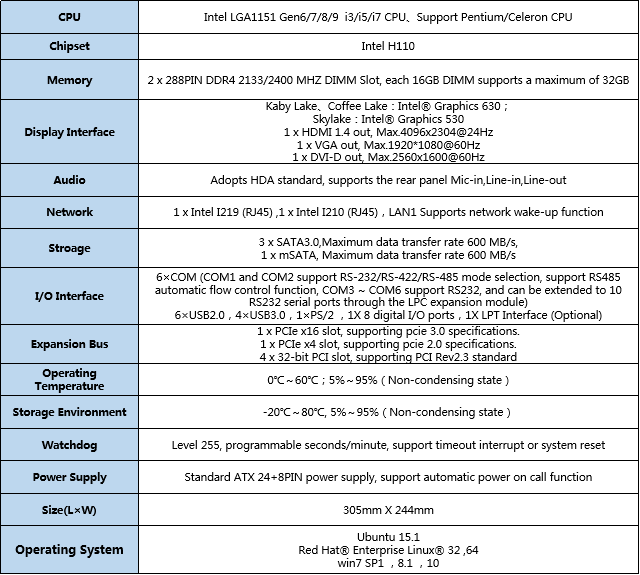

Product Specification：
*Product specifications are subject to change without prior notice

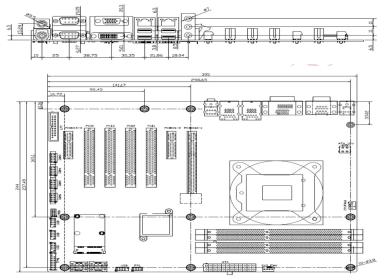

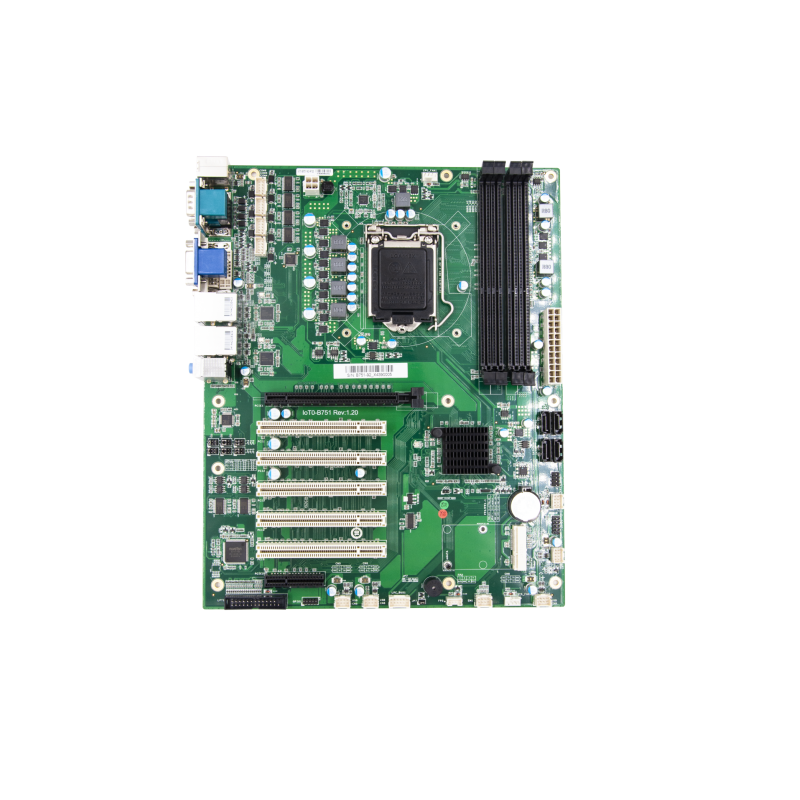

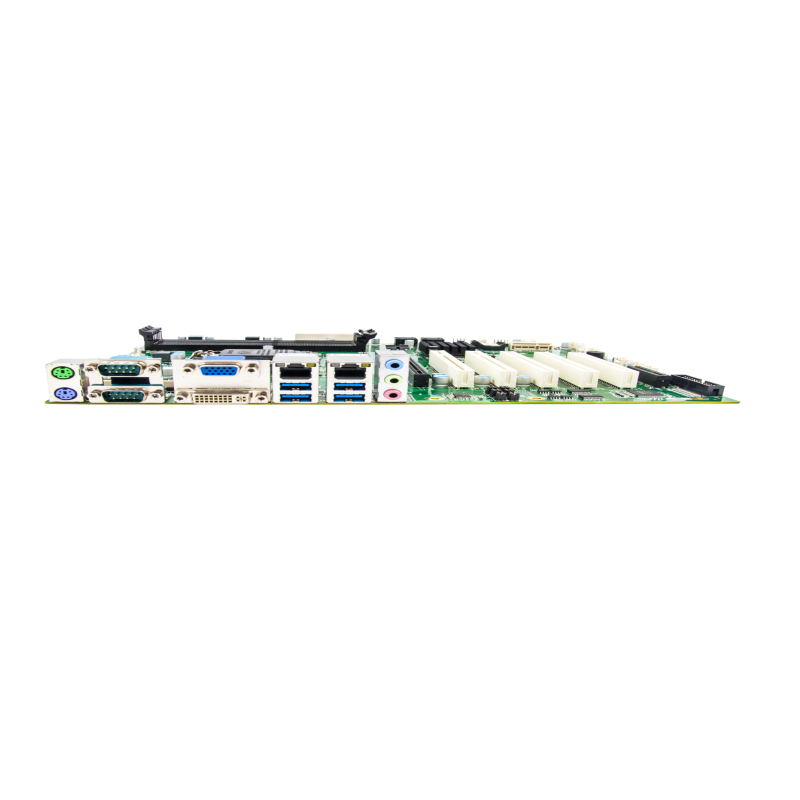

Product Appearance：
