ATX Motherboard With Intel H110 Series Chipset：TH110
Model：TH110
CPU Type：Intel LGA1151 Gen6/7/8/9 i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel H110
Memory: 2 x 288PIN DDR4 2133/2400MHz DIMM slot, each 16GB DIMM supports a maximum of 32GB
Storage: 3 x SATA3.0 interface, maximum data transfer rate of 600 MB/s, 1 x mSATA interface, maximum data transfer rate of 600 MB/s
Network: 1 x Intel I219 (RJ45),1 x Intel I210 (RJ45), LAN1 can support network wake-up function
Display Interface: Kaby Lake, Coffee Lake: Intel ® Graphics 630; Skylake: Intel ® Core Graphics 530 1 x HDMI 1.4 out, Max.4096x2304@24Hz 1 x VGA out, Max.1920*1080@60Hz 1 x DVI-D out, Max.2560x1600@60Hz
Power Interface: Standard ATX 24+8PIN power supply, support call automatic boot function
Operating System：Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ，8.1 ，10
Product Characteristics：
*Support Intel LGA1151 Gen6/7/8/9 i3 /i5/i7 CPU, support Pentium/Celeron CPU
*2* DIMM slots, up to 32 GB DDR4 2133/2400MHz UDIMM memory
* Support VGA+DVI+HDMI Independent dual display output
* 4*USB3.0, 6*USB2.0, 6*COM can be extended to 10 COM
*H110 chipset, with native PCI bus resources, to ensure PCI bus compatibility

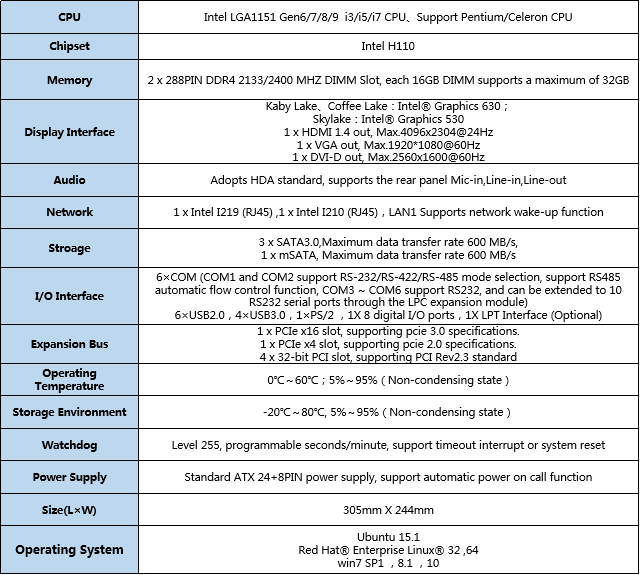

Product Specification：
*Product specifications are subject to change without prior notice

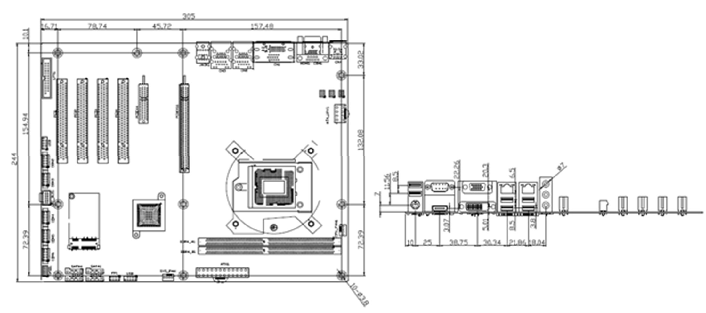

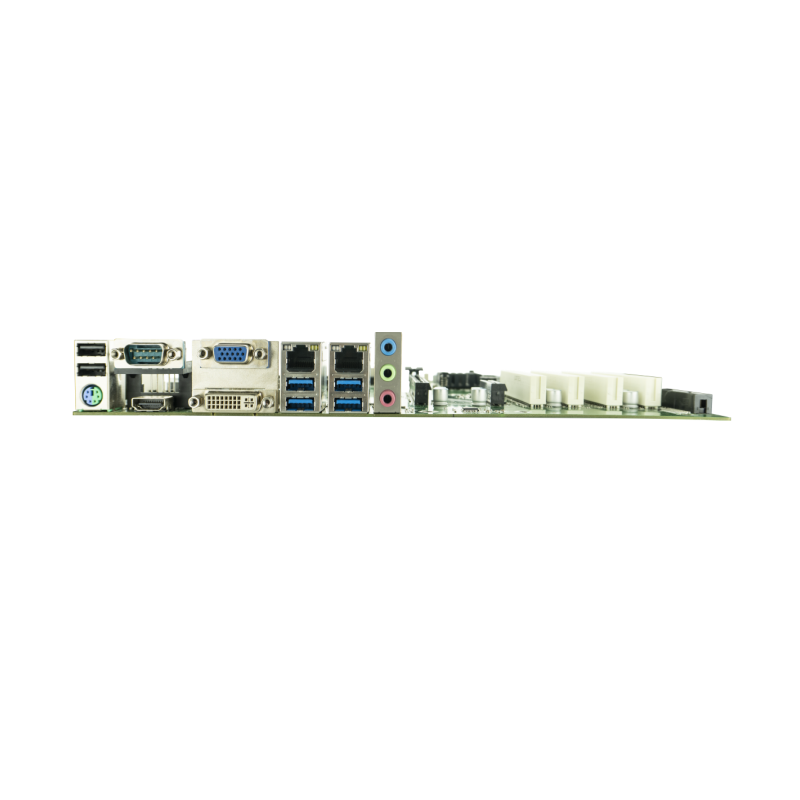

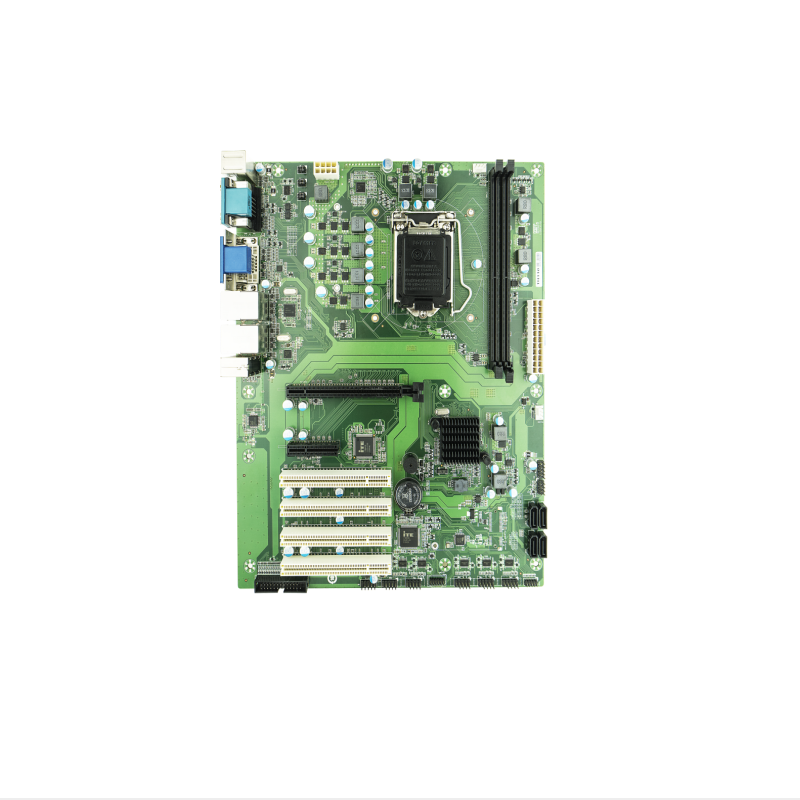

Product Appearance：
