EPC motherboard with Intel® Coffee Lake/Comet Lake-U CPU:EPC-CC81U
Model：EPC-CC81U
CPU Type：Intel® Coffee Lake/Comet Lake -U CPU
Motherboard Size：195mm × 140mm
Memory: Provide 2* SO-DIMMs (front and back each 1) DDR4, the maximum support of 3200MT/S,64GB
Stroage:1*SATA 3.0 (7+15 H:13.4MM) 1*M.2 KEY_B(Supports 2280 NVME X2) 1*M.2 KEY_B supports 2280, SATA3.0)
Network: Provides 2*10/100/1000Mbps Realtek® network interface (LAN1 supports network wake up)
Display Interface: 1 x VGA: Maximum resolution 2560 x 1600@60Hz 1*LVDS/eDP: LVDS, maximum resolution 1920*1200@60Hz eDP, maximum resolution 4096x2304@60Hz eDP/LVDS colay design, one of two functions 1*HDMI 1.4:3840 *2160@30Hz with COM1 DB9 colay design (c
Power Supply：DC 12V IN
Operating System：Ubuntu18.4 Red Hat® Enterprise Linux® 32 ,64 Windows 7、8.1、10
Product Characteristics:
*Support Intel® Coffee Lake/Comet Lake-U
* Support 4*USB3.0 4*USB2.0
* Support 2 x 10/100/1000Mbps network interface
* Support 1*VGA, 1*HDMI, 1*LVDS&eDP support three displays on the same screen

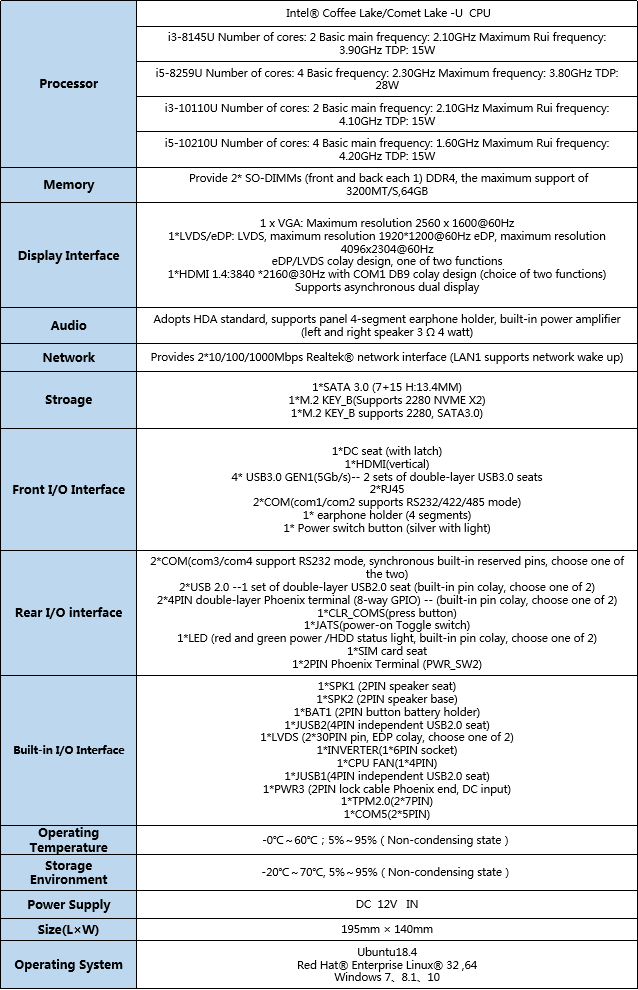

Product Specification：
*Product specifications are subject to change without prior notice

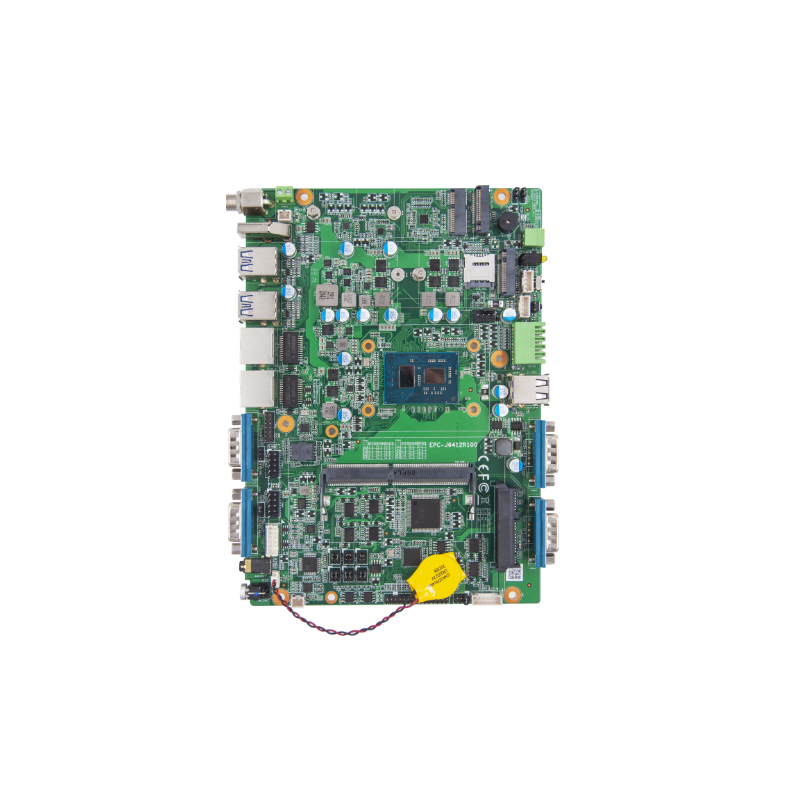

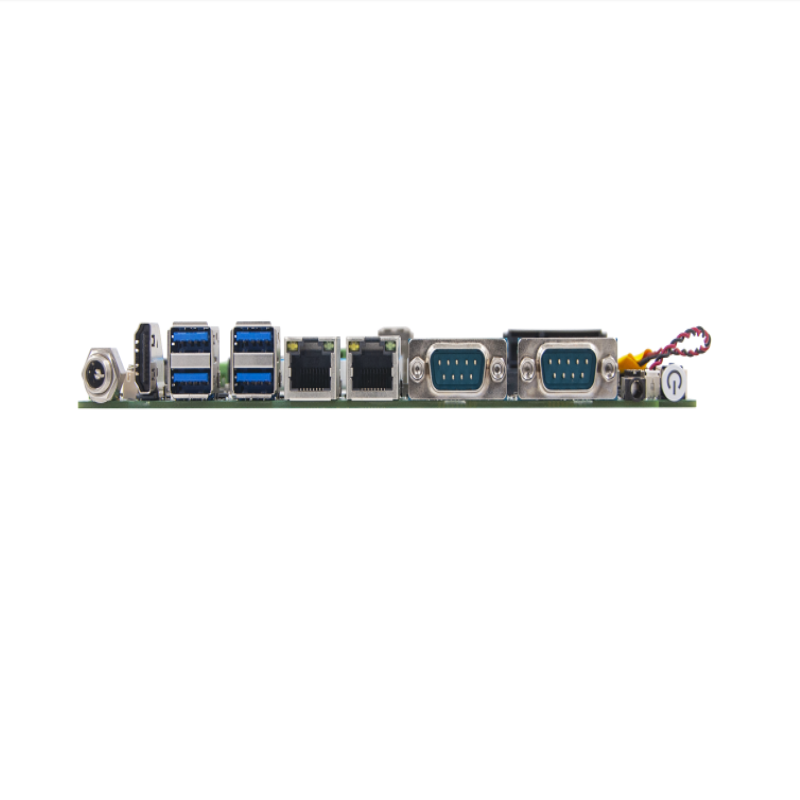

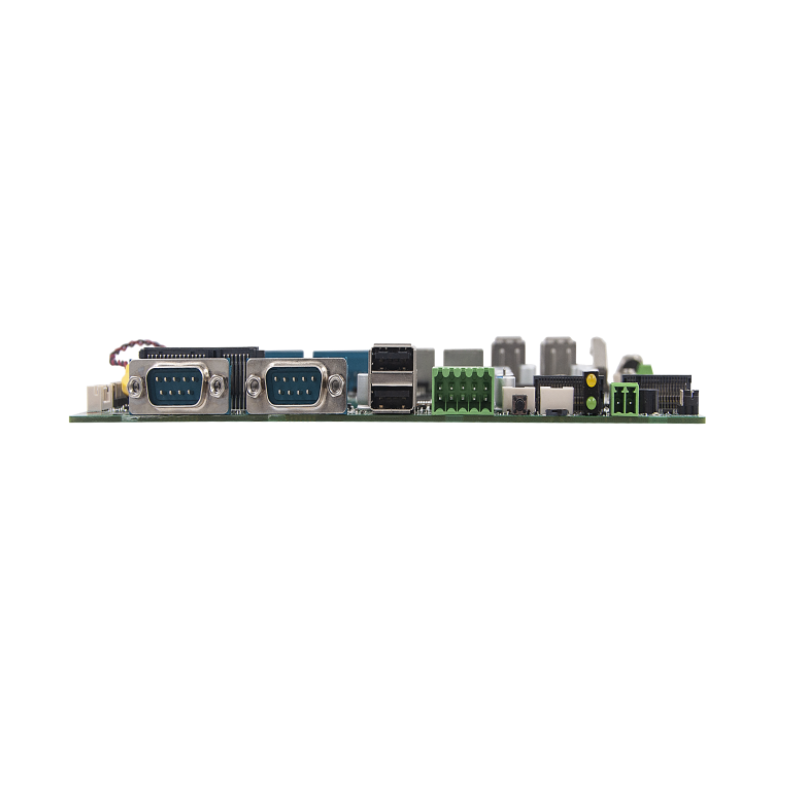

Product Appearance：
