EPC Motherboard With Intel Tiger Lake-U Core ™ i3/i5/i7 series CPU: EPC-TGL11U
Model：EPC-TGL11U
CPU Type：Intel®Tiger Lake -U i3/i5/i7 Series CPU
Motherboard Size：195mm*140mm
Memory： Support DDR4-2666/2933/3200MHz, SO-DIMM Slot, Dual-pass Up to 64GB
Stroage：2*M.2 KEY-M 2280 SATA3.0
Network: 1*Realtek RTL8111H 1Gb LAN1（Support network wake up） 4*INTEL I210 1Gb LAN2~LAN5
Display Interface：Intel ® Graphics 1*VGA (Max resolution: 2560*1600@60Hz built-in socket) 1*LVDS/eDP (Max resolution: LVDS 1920*1200@60Hz: eDP 3840x2160@30Hz: eDP and LVDS colay design (one of two options, default LVDS) 1*HDMI (Max resolution: 3840x2160@
Power Supply：Adopts 12V DC power supply and supports S0, S1, S4, and S5
Operating System：Ubuntu18.4 Red Hat® Enterprise Linux® 32 ,64 Win10.11
Product Characteristics:
*Support for the 11th generation Intel ®Tiger Lake-U Core ™
i3/i5/i7 series CPU.
* Provide 4 USB 3.1, 4 USB2.0.
* Provide VGA, HDMI, LVDS&eDP display, support single display and double display
Three display copy, extended display output.
* Adopt 4 Intel Gigabit Ethernet to ensure high-speed and stable data transmission
Suitable for machine vision, industrial automation and other application scenarios.
* Double side IO design, flexible for BOX PC and industrial tablet products

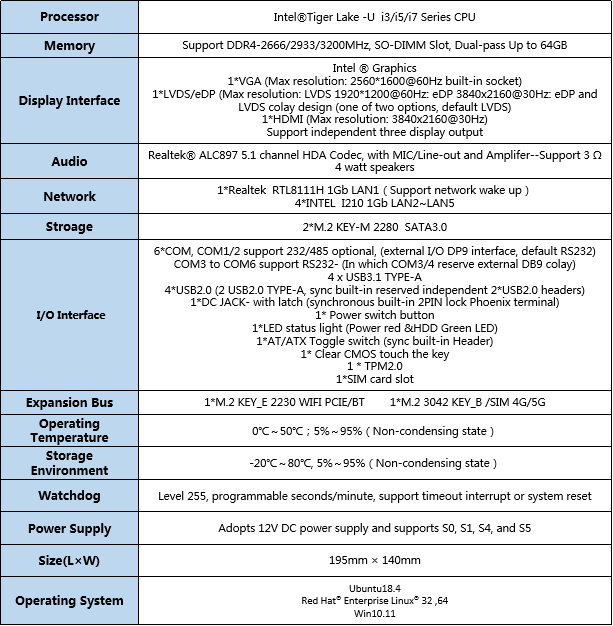

Product Specification:
*Product specifications are subject to change without prior notice

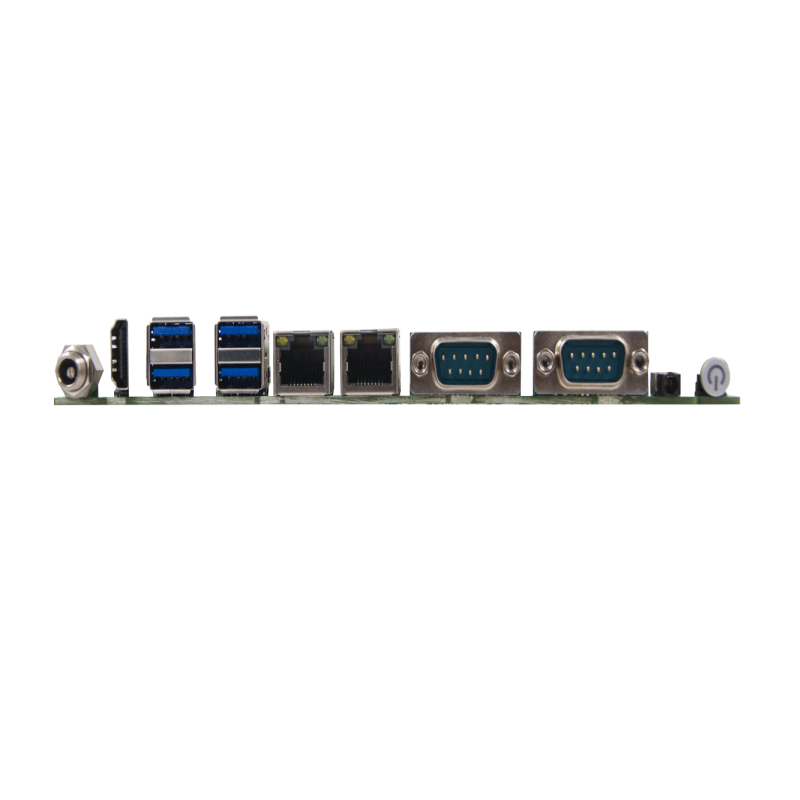

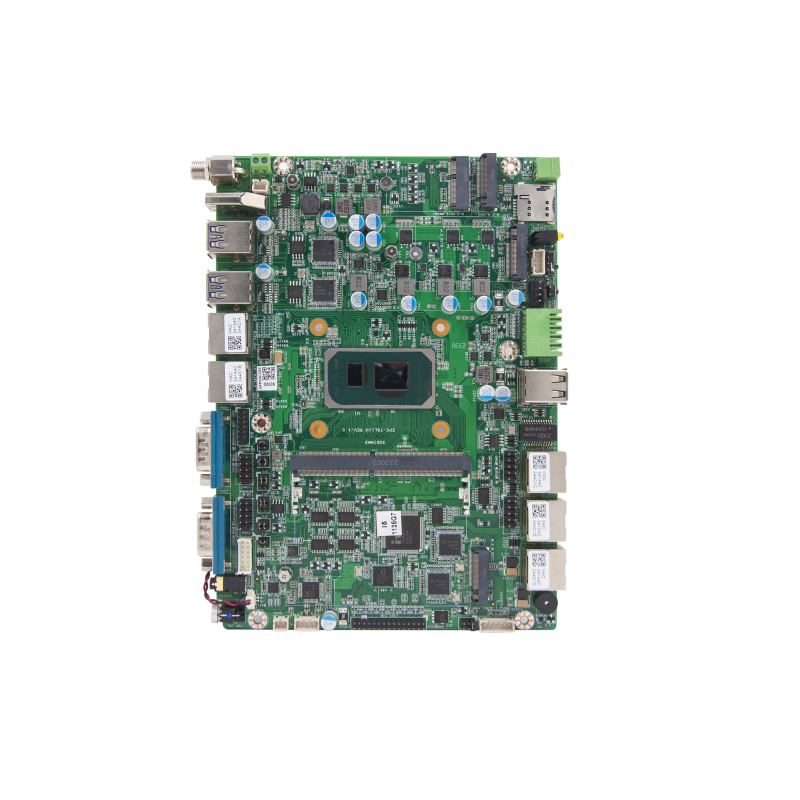

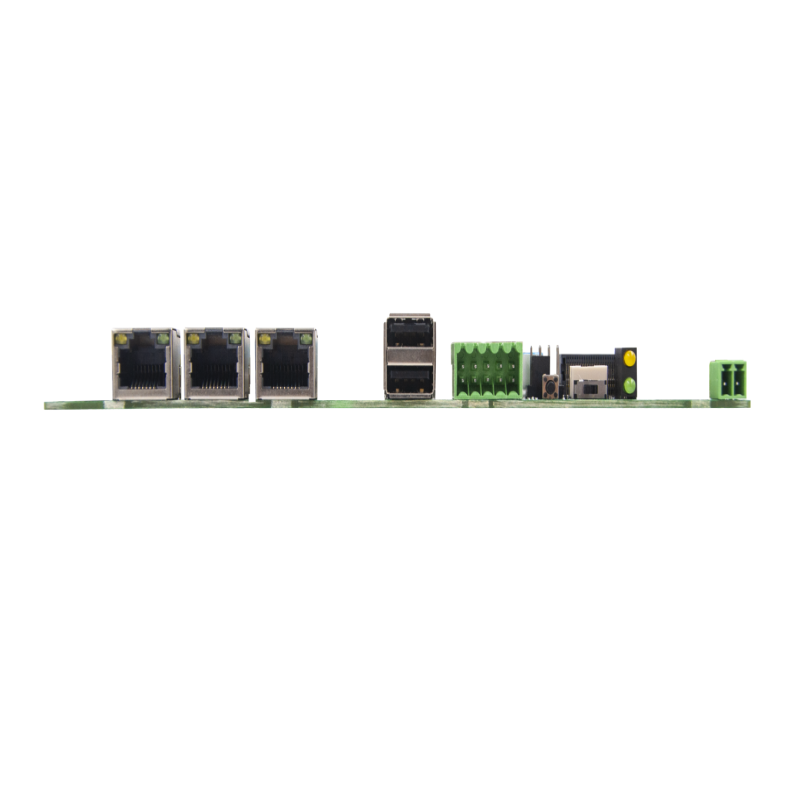

Product Appearance:
